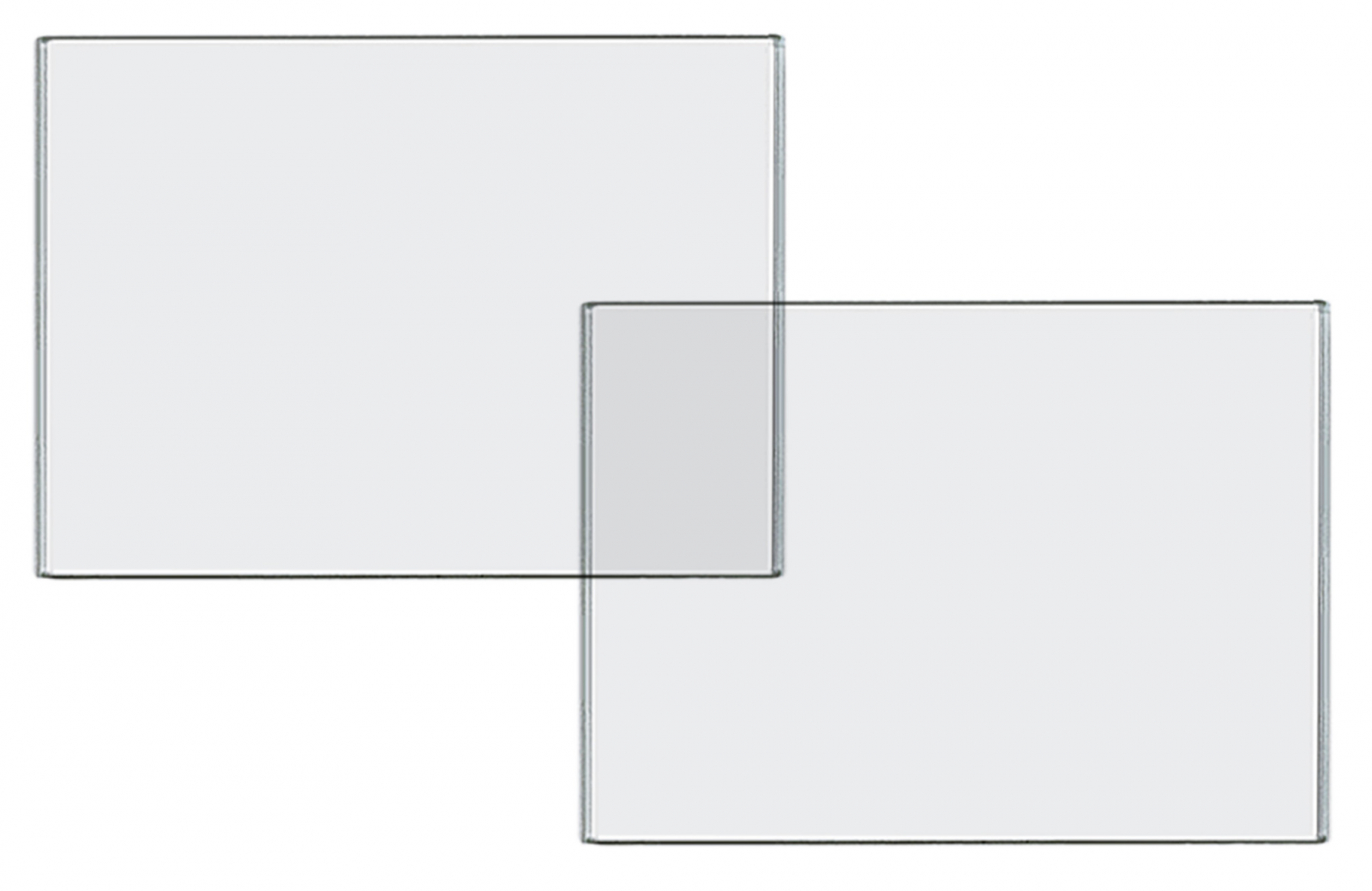

Kaiser Fototechnik 4490 Glass Inserts SYSTEM-V

For insertion into 4583 compound negative carrier of SYSTEM-V enlargers and for former 4483 and 4493 compound negative carrier. Also for the holding devices FilmCopy Vario and FilmCopy Vario Kit.

• Pairs of masks with antistatic finish.
• Dimensions: approx. 100 x 72.5 mm (3.9 x 2.9 in.)
• 4491: Format masks 24.5 x 36.5 mm (35 mm) (a + b).
• To enlarge or photograph a black border around the picture.
• With guide ridges for film strips and neg number read-out window.

For use with all negative masks and glass inserts size 100 x 72,5 mm (3.9 x 2.9 in.). Suitable for all SYSTEM-V enlargers made from 10/94 on (05 series).

• Adjustable guide pins for film widths 61.5 mm (rollfilm 120), 41 mm (rollfilm 127) and 35 mm film.
• Four steplessly adjustable masking strips for selecting the desired detail.
• Two grid pins at standard hole intervals.
• Dimensions: approx. 142 x 37 x 123 mm (5.6 x 1.4 x 4.8 in.)

Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.

• With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
• Height adjustment by hand crank.
• Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)
