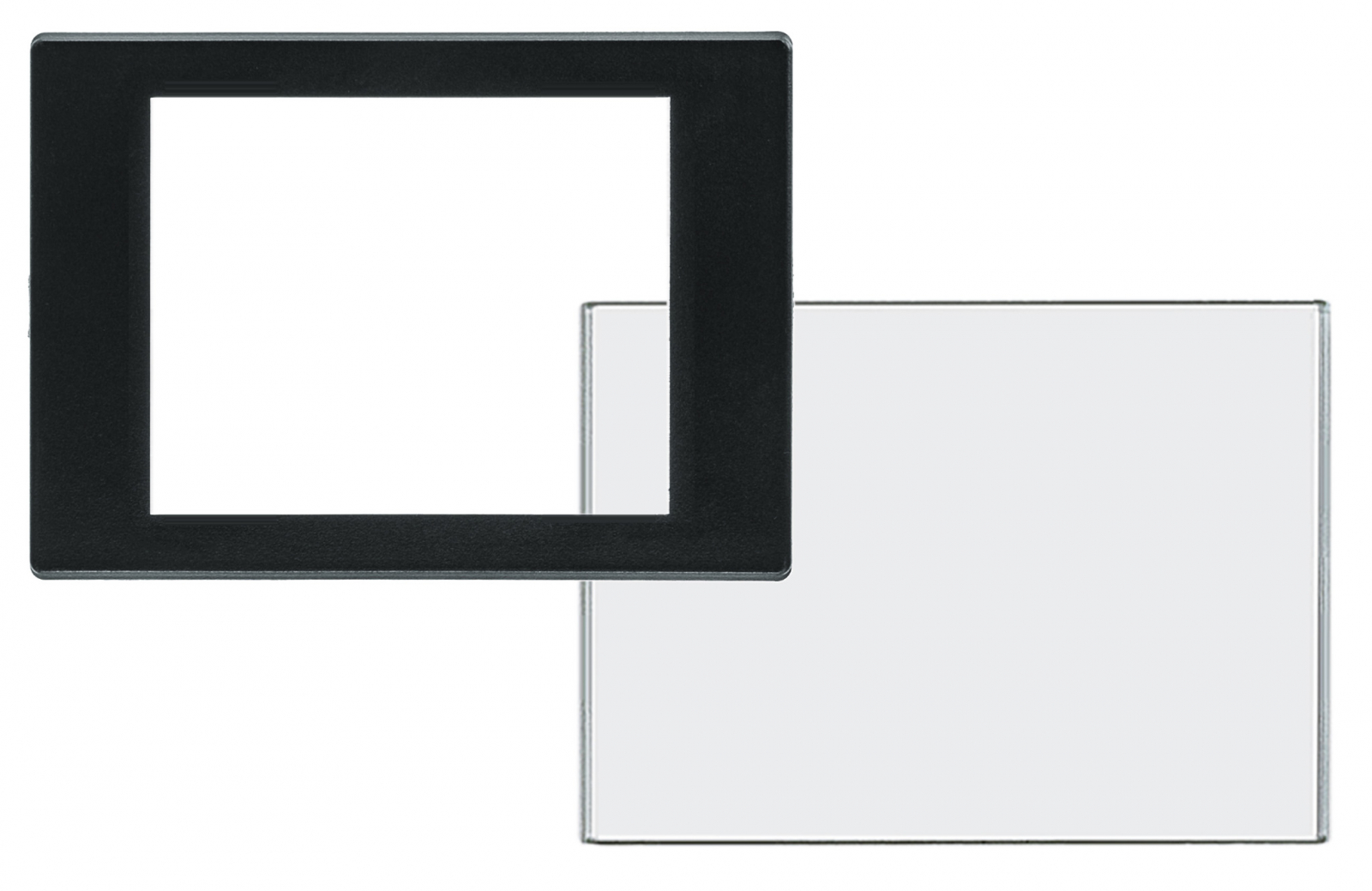

Kaiser Fototechnik 4432 Inserts SYSTEM-V, 6 x 7 cm / AN glass
For insertion into the 4583 compound negative carrier of SYSTEM-V enlargers and for former 4483 and 4493 compound negative carrier.
- Also for the holding devices FilmCopy Vario and FilmCopy Vario Kit.
- Pair of inserts. Format mask with antistatic finish.
- Dimensions: approx. 100 x 72.5 mm (3.9 x 2.9 in.)
$100.00
Related products
-
Enlargers and copy stands
Kaiser Fototechnik 4476 Column, 1 m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
- Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)
SKU: KFO-KF-4476 -
Enlargers and copy stands
Kaiser Fototechnik 4472 Base Board 450 x 500 mm
Matt-gray base board with column base fixed for attaching column.
Spirit level in column base. Individually height-adjustable feet.
Dimensions (WxHxD):
4472: approx. 450 x 28 x 500 mm (17.7 x 1.1 x 19.7 in.)
4413: approx. 600 x 32 x 500 mm (23.6 x 1.3 x 19.7 in.)
4414: approx. 800 x 32 x 600 mm (31.5 x 1.3 x 23.6 in.)
(Dimensions without base and feet)SKU: KFO-KF-4472 -
Enlargers and copy stands
Kaiser Fototechnik 4478 Column, 1 m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
- Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)
4407: Height adjusted by gear rack, with weight compensation by built-in roller spring, additional 1:6 fine drive. Locking screw for fixing height adjustment. Height: 80 cm (31.5 in.)
In combination together with the?Metal Plate?5504?and the camera arm 5523 also useable as a Kaiser?Vertical Stand (see image no. 2, 3, 4).
4474: Height adjusted by friction gear with plastic bearings, weight compensated by built-in roller spring, height 1 m (40 in.)?4475: Height adjusted by gear rack with weight compensation by built-in roller spring, additional 1:6 fine drive. Locking screw for fixing height adjustment. Height 1 m (40 in.)?
In combination together with the?Metal Plate?5504?and the camera arm 5523 also useable as a Kaiser?Vertical Stand (see image no. 2, 3, 4).4476: same as 4475, but without fine drive.?
4478: With 2 mounts for camera arms. Height adjusted by gear rack, upper mount with weight compensation by built-in roller spring, both mounts with locking screw for fixing height adjustment. Height: 1 m (40 in.)
4408: Height adjusted by gear rack, weight compensated by built-in roller spring, locking screw for fixing height adjustment. Height 1.2 m (47 in.)?
4409: Height adjusted by friction gear with plastic bearings, weight compensated by built-in roller spring, locking screw for fixing height adjustment. Height: 1.5 m (60 in.)
?
SKU: KFO-KF-4478 -
Enlargers and copy stands
Kaiser Fototechnik 4583 Compound Negative Carrier
For use with all negative masks and glass inserts size 100 x 72,5 mm (3.9 x 2.9 in.). Suitable for all SYSTEM-V enlargers made from 10/94 on (05 series).
- Adjustable guide pins for film widths 61.5 mm (rollfilm 120), 41 mm (rollfilm 127) and 35 mm film.
- Four steplessly adjustable masking strips for selecting the desired detail.
- Two grid pins at standard hole intervals.
- Dimensions: approx. 142 x 37 x 123 mm (5.6 x 1.4 x 4.8 in.)
SKU: KFO-KF-4583
