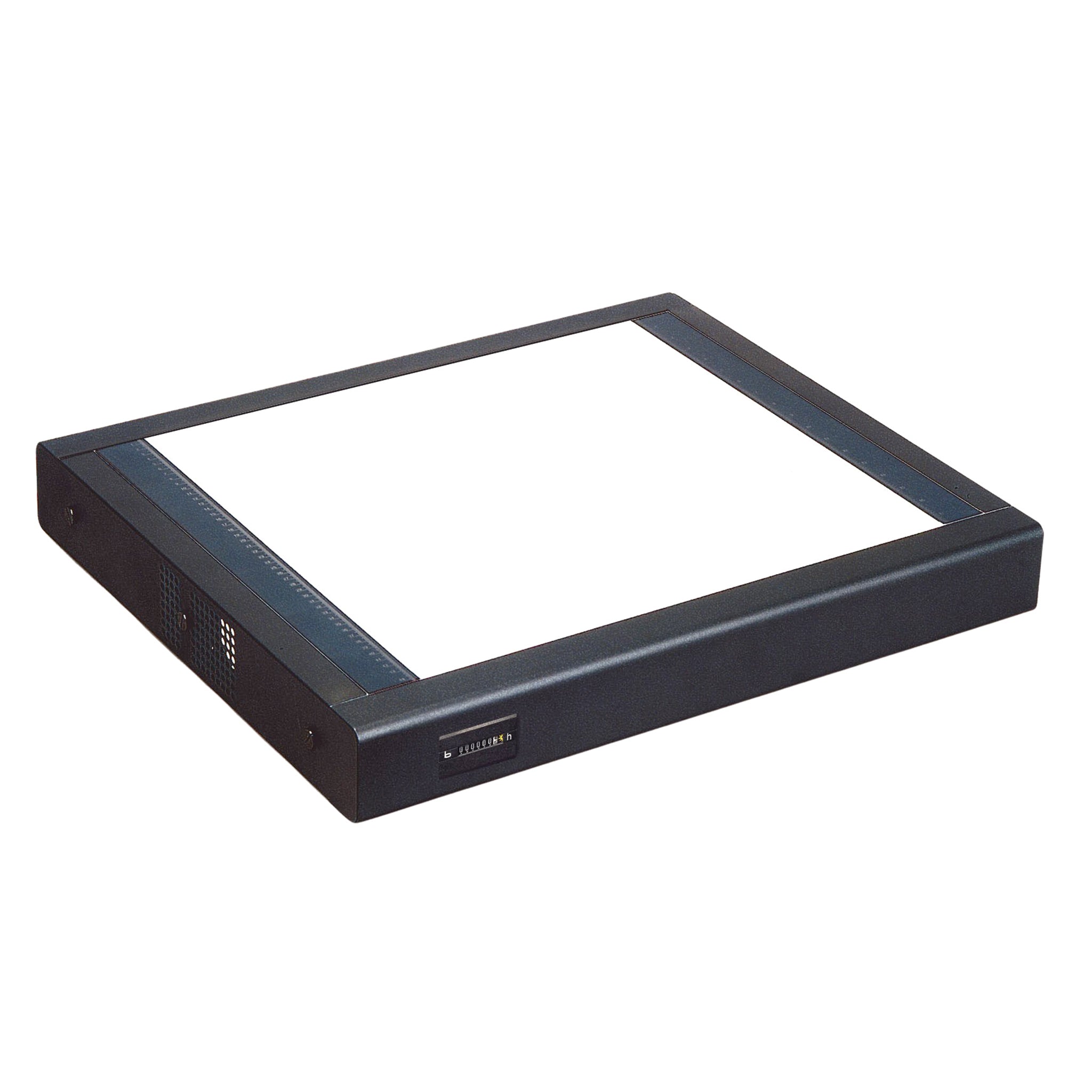

Kaiser Fototechnik 2492 “prolite scan SC” Light Box
Professional light box for transparent originals of all types, e.g. slides, negatives, X-rays and microfiches.
- Color temperature 5000 Kelvin.
- Four Dulux fluorescent lamps with high color reproduction quality CRI = 90-100.
- Luminous density: 13.000 cd/m?.
- All-electronic high-frequency operating system (approx. 40 kHz) for immediate ignition and flicker-free operation.
- Especially suitable as backlight source for use with camera scanners.
- No stroboscopic effects, hum and induction interference.
- Very quiet vibration-free fan cooling permits unlimited continuous operation with minimum heating of the viewing surface.
- Operating hours counter.
- Cm and inch scales on the working surface.
- Non-slip rubber feet.
- Can be wall-mounted.
- On/off switch.
- Cord 2.5 m (8.2 ft.).
Specifications
- Illuminated area:?approx. 48 x 44 cm (18.9 x 17.3 in.)
- Lamps: 4 x 55 W, 5400 K
- Dimensions (WxHxD):?approx. 63 x 9 x 53,5 cm (24.8 x 3.5 x 21.1 in.)
$3,875.00
Related products
-
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2459 FilmCopy dia MF
Stable holding device for the exact positioning of mounted medium format slides (4.5 x 6 cm and 6 x 6 cm slides in mounts 7 x 7 cm).
- For digitizing by using a camera with macro lens (1:1) mounted to a copy stand or tripod.
- To use on light boxes.
- With four steplessly adjustable masking strips.
- Includes overlay mat sized 254 x 201 mm (10 x 7.9 in.) that serves as a protection against stray light.
- Weight (w/o overlay mat): approx. 370 g (13 oz.).
Note: The ?FilmCopy Vario? holding device, code no. 2457 or code no. 2458 (with ?slimlite plano? LED light box) is suitable for digitizing mounted 35 mm slides, film strips and unframed single slides and negatives (slide film, black & white film, color negative film) from 35 mm up to 6 x 9 cm. Larger formats than 35 mm require special format masks or glass inserts, which are available as accessories.
Accessories
SKU: KFO-KF-2459 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2006 “diascop 4” Slide Viewer
Slide viewer with 3 x magnifying double lens for framed slides, 5 x 5 (2 x 2 in.), and uncut film strips in protective sleeves. Drop chute with collecting tray. Mains operation.
- Lamp:?LED daylight, 1,2 W, E 14, pear-shaped
- Lens:?76 x 76 mm (3 x 3 in)?
- Cord:?approx. 1.8 m (6 ft.)
- Dimensions (WxHxD): 80 x 160 x 170 mm (3.1 x 6.3 x 6.7 in.)
Replacement lamp: 2016, 2008
SKU: KFO-KF-2006 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2454 “slimlite plano” LED Light Box
Super flat and dimmable daylight light box with build-in rechargeable battery.
Uniform and color precise illumination for viewing, sorting and photographic capturing (digitizing) of slides or other transparent originals.
Various power supply possibilities: by a built-in lithium ion battery, the combined mains adapter/charger included or the USB cable using a powerbank, computer or car.
Color temperature approx. 5000 Kelvin and color rendering index CRI?of?95 provides for precise color rendering for inspection and photographic reproduction of originals.
?
cm and inch scale beside the illuminated area of acrylic-glass.A short touch of the touch switch activates the light source, a longer touch changes brightness continuously and saves the selected setting (memory function).
Scope of supply: Light box, mains adapter/charger, USB cable
2453: illuminated area: 22 x 16 cm (8.7 x 6.3 in.)- Light source: 23 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx.?750 cd/m?
- Power consumption: 3.6 W
- Li-ion battery: 1050 mA
- Operating time: approx.?5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 29 x 0.8 x 20 cm (11.4 x 0.3 x 7.9 in.)
- Weight: 570 g (20.1 oz.)
2454: illuminated area: 32 x 22.8 cm (12.6 x 9 in.)
- Light source: 23 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx.?600 cd/m?
- Power consumption: 4.1 W
- Li-ion battery: 1050 mA
- Operating time: approx.?3.5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 39 x 0.8 x 27 cm (15.4 x 0.3 x 10.6 in.)
- Weight: 1010 g (35.6 oz.)
2455: illuminated area: 42.9 x 30.9 cm (16.9 x 12.2 in.)
- Light source: 90 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx. 650 cd/m?
- Power consumption: 6.6 W
- Li-ion battery: 1050 mA
- Operating time: approx. 1.5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 49.9 x 0.8 x 35 cm (19.6 x 0.3 x 13.8 in.)
- Weight: 1690 g (59.5 oz.)
Accessories
2351 – All-Purpose Magnifier 4.5 x
SKU: KFO-KF-2454 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2458 FilmCopy Vario Kit
Stable holding device for the exact positioning of slides and negatives of various formats.
- For digitizing by using a camera with macro lens (1:1) mounted to a copy stand or tripod. To use on light boxes.
- Includes insert for 35 mm slides in 5 x 5 cm mounts (4489)?and 24 x 36 mm format masks (4486)?with guide ridges for 35 mm film strips.
- With appropriate format masks or glass inserts (each available as accessories) also suitable for film strips and cut single slides and negatives of the 4.5 x 6 cm, 6 x 6 cm, 6 x 7 cm and 6 x 9 cm film formats and the 24 x 66 mm panoramic film format.
- Inserts are easy to change.
- Mounted 35 mm slides can be placed directly from above on the device, for placing film strips the pressure frame has to be opened.
- Bottom part with adjustable stop pins for different film widths plus four steplessly adjustable masking strips.
- Overlay mat sized 254 x 201 mm (10 x 7.9 in.) serves as a protection against stray light.
- Weight of FilmCopy Vario (w/o masks, w/o overlay mat): approx. 600 g (1.3 lbs.).
The FilmCopy Vario Kit (2458) already includes the super flat ?slimlite plano? LED light box (2453) for viewing and sorting slides and negatives and for illumination during digitization (illuminated area 22 x 16 cm (8.7 x 6.3 in.), 5000 Kelvin daylight, CRI = 95, continuously dimmable, battery and mains operation).
?
?
SKU: KFO-KF-2458 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2457 FilmCopy Vario
Stable holding device for the exact positioning of slides and negatives of various formats.
- Includes insert for 35 mm slides in 5 x 5 cm mounts (4489) and 24 x 36 mm format masks (4486) with guide ridges for 35 mm film strips.
- With appropriate format masks or glass inserts (each available as accessories) also suitable for film strips and cut single slides and negatives of the 4.5 x 6 cm, 6 x 6 cm, 6 x 7 cm and 6 x 9 cm film formats and the 24 x 66 mm panoramic film format.
- Inserts are easy to change.
- Mounted 35 mm slides can be placed directly from above on the device, for placing film strips the pressure frame has to be opened.
- Bottom part with adjustable stop pins for different film widths plus four steplessly adjustable masking strips.
- Overlay mat sized 254 x 201 mm (10 x 7.9 in.) serves as a protection against stray light.
- Weight of FilmCopy Vario (w/o masks, w/o overlay mat): approx. 600 g (1.3 lbs.)
The FilmCopy Vario Kit (2458) already includes the super flat ?slimlite plano? LED light box (2453) for viewing and sorting slides and negatives and for illumination during digitization (illuminated area 22 x 16 cm (8.7 x 6.3 in.), 5000 Kelvin daylight, CRI = 95, continuously dimmable, battery and mains operation).
Scope of supply:
2457 FilmCopy Vario
– ?FilmCopy Vario? holding device
– Format mask for mounted 35 mm slides (4489)
– Pair of format masks 24 x 36 mm (4486)
– Overlay mat?
(2457)2458 FilmCopy Vario Kit
– FilmCopy Vario (2457)
– ?slimlite plano? LED light box (2453)Note: The ?FilmCopy dia MF? holding device (code no. 2459) is suitable for digitizing mounted medium format slides (4.5 x 6 cm and 6 x 6 cm slides in mounts 7 x 7 cm).?
Accessories
4489 – Format Mask for 5 x 5 cm Slides
4486 – Format Masks 24 x 36 mm
4491 – Format Masks 24.5 x 36.5 mm
4431 – Format Masks 4,5 x 6 cm
4492 – Format Masks 24 x 66 mm
4490 – Glass Inserts flat glass 6 x 9 cm
4433 – Glass Inserts AN glass/flat glass 6 x 9 cm
4435 – Anti-Newton Glass/Format Mask 24?x?36?(b)
4434 – Anti-Newton Glass/Format Mask 6 x 6 cm
4432 – Anti-Newton Glass/Format Mask 6 x 7 cm
4494 – Inserts for “do-it-yourself”
SKU: KFO-KF-2457
