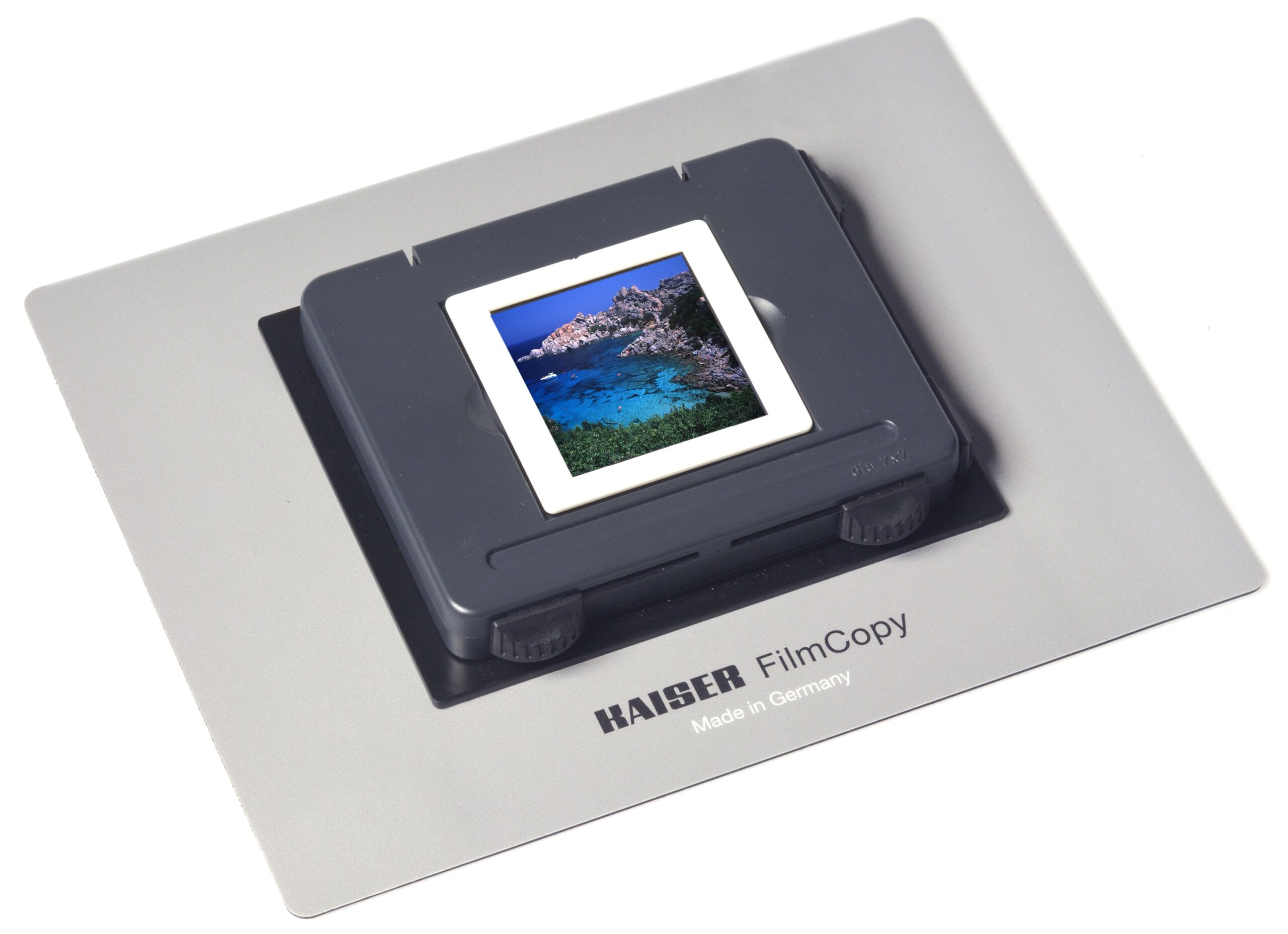

Kaiser Fototechnik 2459 FilmCopy dia MF
Stable holding device for the exact positioning of mounted medium format slides (4.5 x 6 cm and 6 x 6 cm slides in mounts 7 x 7 cm).
- For digitizing by using a camera with macro lens (1:1) mounted to a copy stand or tripod.
- To use on light boxes.
- With four steplessly adjustable masking strips.
- Includes overlay mat sized 254 x 201 mm (10 x 7.9 in.) that serves as a protection against stray light.
- Weight (w/o overlay mat): approx. 370 g (13 oz.).
Note: The ?FilmCopy Vario? holding device, code no. 2457 or code no. 2458 (with ?slimlite plano? LED light box) is suitable for digitizing mounted 35 mm slides, film strips and unframed single slides and negatives (slide film, black & white film, color negative film) from 35 mm up to 6 x 9 cm. Larger formats than 35 mm require special format masks or glass inserts, which are available as accessories.
Accessories
$365.00
Related products
-
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2454 “slimlite plano” LED Light Box
Super flat and dimmable daylight light box with build-in rechargeable battery.
Uniform and color precise illumination for viewing, sorting and photographic capturing (digitizing) of slides or other transparent originals.
Various power supply possibilities: by a built-in lithium ion battery, the combined mains adapter/charger included or the USB cable using a powerbank, computer or car.
Color temperature approx. 5000 Kelvin and color rendering index CRI?of?95 provides for precise color rendering for inspection and photographic reproduction of originals.
?
cm and inch scale beside the illuminated area of acrylic-glass.A short touch of the touch switch activates the light source, a longer touch changes brightness continuously and saves the selected setting (memory function).
Scope of supply: Light box, mains adapter/charger, USB cable
2453: illuminated area: 22 x 16 cm (8.7 x 6.3 in.)- Light source: 23 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx.?750 cd/m?
- Power consumption: 3.6 W
- Li-ion battery: 1050 mA
- Operating time: approx.?5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 29 x 0.8 x 20 cm (11.4 x 0.3 x 7.9 in.)
- Weight: 570 g (20.1 oz.)
2454: illuminated area: 32 x 22.8 cm (12.6 x 9 in.)
- Light source: 23 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx.?600 cd/m?
- Power consumption: 4.1 W
- Li-ion battery: 1050 mA
- Operating time: approx.?3.5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 39 x 0.8 x 27 cm (15.4 x 0.3 x 10.6 in.)
- Weight: 1010 g (35.6 oz.)
2455: illuminated area: 42.9 x 30.9 cm (16.9 x 12.2 in.)
- Light source: 90 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx. 650 cd/m?
- Power consumption: 6.6 W
- Li-ion battery: 1050 mA
- Operating time: approx. 1.5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 49.9 x 0.8 x 35 cm (19.6 x 0.3 x 13.8 in.)
- Weight: 1690 g (59.5 oz.)
Accessories
2351 – All-Purpose Magnifier 4.5 x
SKU: KFO-KF-2454 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2480 prolite LED 50/37 Light Box
prolite LED 50/37 Light Box
Code no: 2480
Professional daylight light box with high CRI LEDs. Steplessly dimmable. 6 mm T-slot on all four side sections for installation in systems and installations and for attaching accessories. Separate mains adapter.
Uniform and color correct illumination for viewing, sorting and photographic capturing (digitizing) of slides and other transparent originals or of other materials.
Specifications:
Illuminated area: 50 x 37 cm (19.7 x 14.6 in.)
Light source: 270 SMD LEDs
Color temperature: approx. 6000 Kelvin
Color rendition index: CRI: 95
Light density: 10000 cd/m?
Operating voltage: 24 V
Rated power: 58 W
Dimensions (WxHxD): 594 x 54 x 439 mm (23.4 x 2.1 x17.3 in.)
Weight: 5.14 kg (11.3 lbs.)
Scope of delivery: prolite LED 50/37 light box, mains adapter, mains lead, two neodymium magnets and two M6 square nuts.
Also available as prolite LED 37/25 light box (2479) with illuminated area 37 x 25 cm (14.6 x 9.8 in.).
Learn more:
High CRI LEDs: color temperature approx. 6000 Kelvin, color rendering index CRI: 95, flicker-free operation. Precise color rendering for inspection and photographic reproduction of originals.
Dimmer: brightness steplessly adjustable.
High-quality acrylic glass plate with particularly high transmission and also optimized light diffusion, cm and inch scales at the illuminated area.
Two strong neodymium magnets for fixing originals right next to the illuminated area.
Sturdy light metal housing with 6 mm T-slot on all four side sections, compatible with various connecting and accessory parts for 6-slot profile systems. This enables installation in systems and installations as well as the attachment of accessories to the light box.
A sliding block in each of the T-slots of the short sides can be moved and locked, internal thread 5 mm, e.g. for fastening the optional swivel bracket.
Two square nuts with M6 (6 mm) thread for insertion into the T-slot of the side sections.
Non-slip rubber feet.
Power supply via included mains adapter (input: AC 100-240 V, 50/60 Hz, output: DC 24 V, 2.5 A).
Universal swivel bracket made of aluminum as optional accessory. Can be used both as a support bracket and for wall mounting of the light box.Accessories
2483 – Swivel Bracket for prolite LED 50/37
Subject to errors and technical changes.
This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
SKU: KFO-KF-2480 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2453 “slimlite plano” LED Light Box
?Super flat and dimmable daylight light box with build-in rechargeable battery.
Uniform and color precise illumination for viewing, sorting and photographic capturing (digitizing) of slides or other transparent originals.
Various power supply possibilities: by a built-in lithium ion battery, the combined mains adapter/charger included or the USB cable using a powerbank, computer or car.
Color temperature approx. 5000 Kelvin and color rendering index CRI of?95 provides for precise color rendering for inspection and photographic reproduction of originals.
?
cm and inch scale beside the illuminated area of acrylic-glass.A short touch of the touch switch activates the light source, a longer touch changes brightness continuously and saves the selected setting (memory function).
Scope of supply: Light box, mains adapter/charger, USB cable2453: illuminated area: 22 x 16 cm (8.7 x 6.3 in.)
- Light source: 23 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx. 750 cd/m?
- Power consumption: 3.6 W
- Li-ion battery: 1050 mA
- Operating time: approx.?5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 29 x 0.8 x 20 cm (11.4 x 0.3 x 7.9 in.)
- Weight: 570 g (20.1 oz.)
2454: illuminated area: 32 x 22.8 cm (12.6 x 9 in.)- Light source: 23 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx. 600 cd/m?
- Power consumption: 4.1 W
- Li-ion battery: 1050 mA
- Operating time: approx.?3.5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 39 x 0.8 x 27 cm (15.4 x 0.3 x 10.6 in.)
- Weight: 1010 g (35.6 oz.)
2455: illuminated area: 42.9 x 30.9 cm (16.9 x 12.2 in.)- Light source: 90 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx. 650 cd/m?
- Power consumption: 6.6 W
- Li-ion battery: 1050 mA
- Operating time: approx. 1.5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 49.9 x 0.8 x 35 cm (19.6 x 0.3 x 13.8 in.)
- Weight: 1690 g (59.5 oz.)
Accessories
SKU: KFO-KF-2453 -
-
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2479 prolite LED 37/25 Light Box
prolite LED 37/25 Light Box
Code no: 2479
Professional daylight light box with high CRI LEDs. Steplessly dimmable. 6 mm T-slot on all four side sections for installation in systems and installations and for attaching accessories. Separate mains adapter.
Uniform and color correct illumination for viewing, sorting and photographic capturing (digitizing) of slides and other transparent originals or of other materials.
Specifications:
Illuminated area:???????????????? 37 x 25 cm (14.6 x 9.8 in.)
Light source:?????????????????????? 135 SMD LEDs
Color temperature:????????????? approx. 6000 Kelvin
Color rendition index: ???????? CRI: 95
Light density:?????????????????????? 9400 cd/m?
Operating voltage:?????????????? 24 V
Rated power:??????????????????????? 29 W
Dimensions (WxHxD):????????? 439 x 54 x 343 mm (17.3 x 2.1 x 13.5 in.)
Weight:???????????????????????????????? 3.12 kg (6.9 lbs.)
Scope of delivery: prolite LED 37/25 light box, mains adapter, mains lead, two neodymium magnets and two M6 square nuts.
Also available as prolite LED 50/37 light box (2480) with illuminated area 50 x 37 cm (19.7 x 14.6 in.).Learn more:
High CRI LEDs: color temperature approx. 6000 Kelvin, color rendering index CRI: 95, flicker-free operation. Precise color rendering for inspection and photographic reproduction of originals.
Dimmer: brightness steplessly adjustable.
High-quality acrylic glass plate with particularly high transmission and also optimized light diffusion, cm and inch scales at the illuminated area.
Two strong neodymium magnets for fixing originals right next to the illuminated area.
Sturdy light metal housing with 6 mm T-slot on all four side sections, compatible with various connecting and accessory parts for 6-slot profile systems. This enables installation in systems and installations as well as the attachment of accessories to the light box.
A sliding block in each of the T-slots of the short sides can be moved and locked, internal thread 5 mm, e.g. for fastening the optional swivel bracket.
Two square nuts with M6 (6 mm) thread for insertion into the T-slot of the side sections.
Non-slip rubber feet.
Power supply via included mains adapter (input: AC 100-240 V, 50/60 Hz, output: DC 24 V, 2.5 A).
Universal swivel bracket made of aluminum as optional accessory. Can be used both as a support bracket and for wall mounting of the light box.
Accessories
2482 – Swivel Bracket for prolite LED 37/25
Subject to errors and technical changes.This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
?
SKU: KFO-KF-2479
