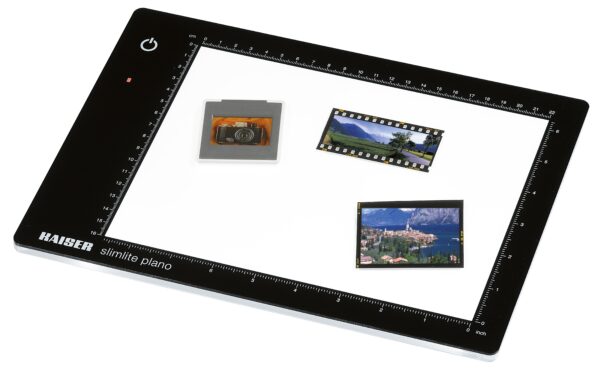

Kaiser Fototechnik 2453 “slimlite plano” LED Light Box
Super flat and dimmable daylight light box with build-in rechargeable battery.
Uniform and color precise illumination for viewing, sorting and photographic capturing (digitizing) of slides or other transparent originals.
Various power supply possibilities: by a built-in lithium ion battery, the combined mains adapter/charger included or the USB cable using a powerbank, computer or car.
Color temperature approx. 5000 Kelvin and color rendering index CRI of?95 provides for precise color rendering for inspection and photographic reproduction of originals.
?
cm and inch scale beside the illuminated area of acrylic-glass.
A short touch of the touch switch activates the light source, a longer touch changes brightness continuously and saves the selected setting (memory function).
Scope of supply: Light box, mains adapter/charger, USB cable
2453: illuminated area: 22 x 16 cm (8.7 x 6.3 in.)
- Light source: 23 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx. 750 cd/m?
- Power consumption: 3.6 W
- Li-ion battery: 1050 mA
- Operating time: approx.?5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 29 x 0.8 x 20 cm (11.4 x 0.3 x 7.9 in.)
- Weight: 570 g (20.1 oz.)
2454: illuminated area: 32 x 22.8 cm (12.6 x 9 in.)
- Light source: 23 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx. 600 cd/m?
- Power consumption: 4.1 W
- Li-ion battery: 1050 mA
- Operating time: approx.?3.5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 39 x 0.8 x 27 cm (15.4 x 0.3 x 10.6 in.)
- Weight: 1010 g (35.6 oz.)
2455: illuminated area: 42.9 x 30.9 cm (16.9 x 12.2 in.)
- Light source: 90 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx. 650 cd/m?
- Power consumption: 6.6 W
- Li-ion battery: 1050 mA
- Operating time: approx. 1.5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 49.9 x 0.8 x 35 cm (19.6 x 0.3 x 13.8 in.)
- Weight: 1690 g (59.5 oz.)
Accessories
$215.00
Related products
-
Slide viewers, duplicators and light boxes

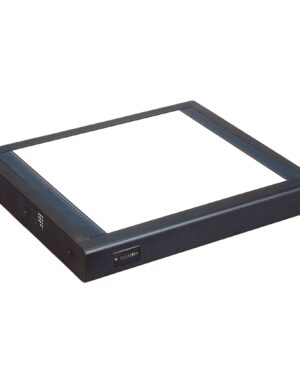

Kaiser Fototechnik 2493 “prolite scan SC” Light Box
Fine-structured acrylic glass.
Mounts to Kaiser lighting units in connection with 5582 / 5592 Filter Holders. 2 pieces.
5583: For reflector size 50 x 21 cm (19.7 x 8.3 in.)
(Lighting Units 5556, 5557, 5558, 5588 and 5868)5593: For reflector size 64 x 21 cm (25.2 x 8.3 in.)
(Lighting Units 5589, 5590, 5591, 5595, 5656)SKU: KFO-KF-2493 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2482 Support / Wall Mount
Swivel Bracket for prolite LED 37/25
Code no: 2482
Universal swivel bracket made of aluminum for prolite LED 37/25 light box (2479).
Can be used both as a support bracket and for wall mounting of the light box. Mounting accessories and two neodymium magnets included.
Adjustable set-up or tilt angle. Clamp levers for easy adjustment; can be repositioned without affecting the clamping force.
When used as a support bracket, the swivel bracket can be folded onto the light box to save space when not in use.
Two strong neodymium magnets for fixing originals to the light box.Code no: 2482
Subject to errors and technical changes.
SKU: KFO-KF-2482 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2480 prolite LED 50/37 Light Box
prolite LED 50/37 Light Box
Code no: 2480
Professional daylight light box with high CRI LEDs. Steplessly dimmable. 6 mm T-slot on all four side sections for installation in systems and installations and for attaching accessories. Separate mains adapter.
Uniform and color correct illumination for viewing, sorting and photographic capturing (digitizing) of slides and other transparent originals or of other materials.
Specifications:
Illuminated area: 50 x 37 cm (19.7 x 14.6 in.)
Light source: 270 SMD LEDs
Color temperature: approx. 6000 Kelvin
Color rendition index: CRI: 95
Light density: 10000 cd/m?
Operating voltage: 24 V
Rated power: 58 W
Dimensions (WxHxD): 594 x 54 x 439 mm (23.4 x 2.1 x17.3 in.)
Weight: 5.14 kg (11.3 lbs.)
Scope of delivery: prolite LED 50/37 light box, mains adapter, mains lead, two neodymium magnets and two M6 square nuts.
Also available as prolite LED 37/25 light box (2479) with illuminated area 37 x 25 cm (14.6 x 9.8 in.).
Learn more:
High CRI LEDs: color temperature approx. 6000 Kelvin, color rendering index CRI: 95, flicker-free operation. Precise color rendering for inspection and photographic reproduction of originals.
Dimmer: brightness steplessly adjustable.
High-quality acrylic glass plate with particularly high transmission and also optimized light diffusion, cm and inch scales at the illuminated area.
Two strong neodymium magnets for fixing originals right next to the illuminated area.
Sturdy light metal housing with 6 mm T-slot on all four side sections, compatible with various connecting and accessory parts for 6-slot profile systems. This enables installation in systems and installations as well as the attachment of accessories to the light box.
A sliding block in each of the T-slots of the short sides can be moved and locked, internal thread 5 mm, e.g. for fastening the optional swivel bracket.
Two square nuts with M6 (6 mm) thread for insertion into the T-slot of the side sections.
Non-slip rubber feet.
Power supply via included mains adapter (input: AC 100-240 V, 50/60 Hz, output: DC 24 V, 2.5 A).
Universal swivel bracket made of aluminum as optional accessory. Can be used both as a support bracket and for wall mounting of the light box.Accessories
2483 – Swivel Bracket for prolite LED 50/37
Subject to errors and technical changes.
This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
SKU: KFO-KF-2480 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2483 Support / Wall Mount
Swivel Bracket for prolite LED 50/37
Code no: 2483
Universal swivel bracket made of aluminum for prolite LED 50/37 light box (2480).
Can be used both as a support bracket and for wall mounting of the light box. Mounting accessories and two neodymium magnets included.
Adjustable set-up or tilt angle. Clamp levers for easy adjustment; can be repositioned without affecting the clamping force.
When used as a support bracket, the swivel bracket can be folded onto the light box to save space when not in use.
Two strong neodymium magnets for fixing originals to the light box.SKU: KFO-KF-2483 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 6506 Digital Slide Duplicator, for digital SLR and other digital cameras with filter thread. With 10 dioptre achromatic macro lens. Full size copies require a 80 – 120 mm focal length.
Slide viewers, duplicators and light boxesKaiser Fototechnik 6506 Digital Slide Duplicator, for digital SLR and other digital cameras with filter thread. With 10 dioptre achromatic macro lens. Full size copies require a 80 – 120 mm focal length.
Designed for DSLRs and mirrorless cameras and digital compacts with front lens thread.
Not suited for use with macro lenses.
Attaches to the filter thread of the lens. 52 mm connecting thread. 58 mm adapter ring included.Full size copies with following focal length range:
- Full-frame sensor (35 mm): approx. 80-120 mm
- APS-C-type sensor: approx. 50-80 mm
- Micro-Four-Thirds sensor: approx. 40-60 mmLarger frames require higher focal length.
- Includes holder for two 35 mm slides up to a mount?thickness of?3 mm.
- Length: approx. 125 mm (4.9 in.)
Suitable adapter rings:
6561: 55-52 mm
6565: 58-52 mm (included)
6569: 62-58 mm
6573: 67-58 mm
6576: 72-58 mm
6578: 77-58 mmAccessories
SKU: KFO-KF-6506
