Slide viewers, duplicators and light boxes

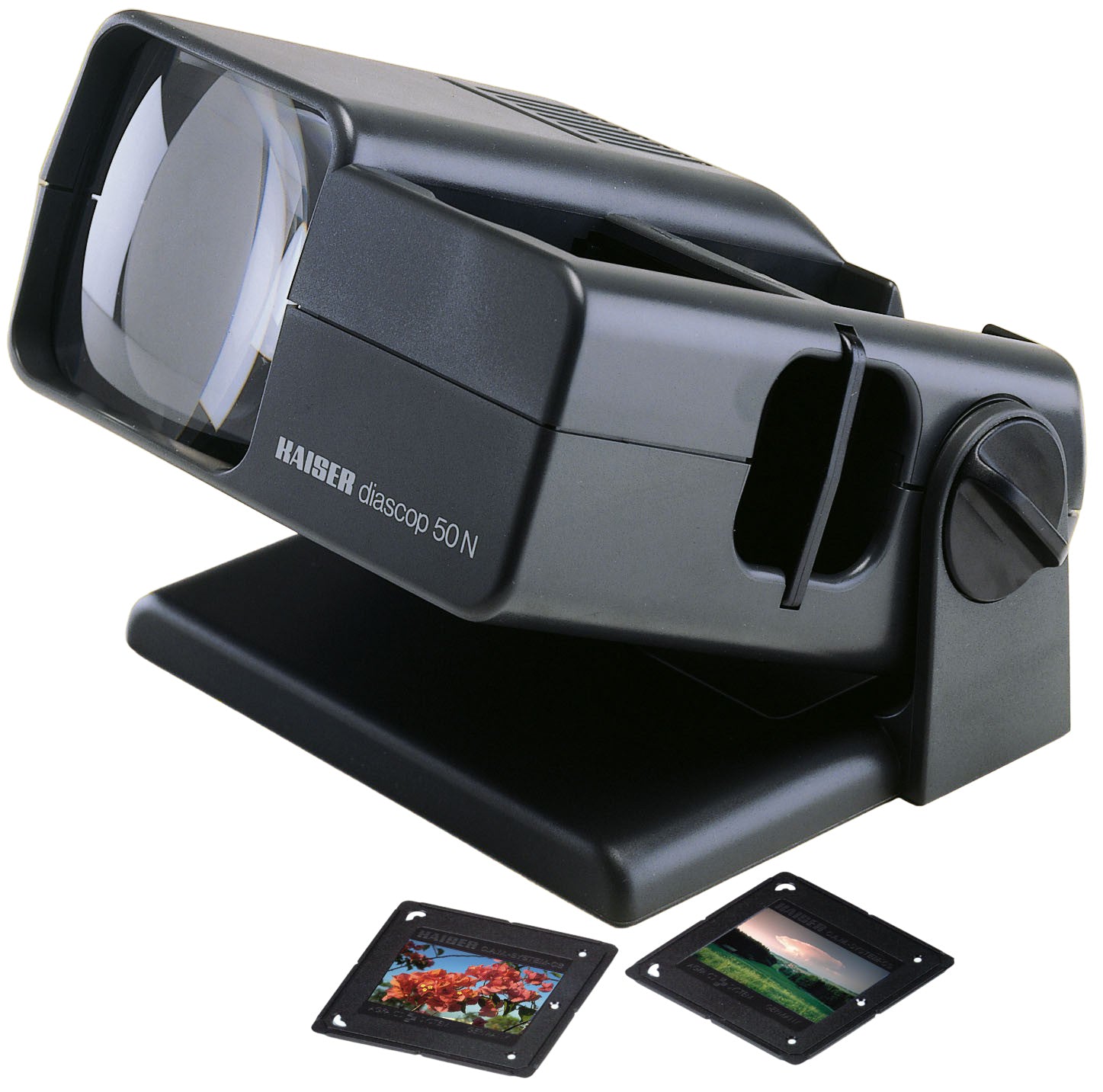

Kaiser Fototechnik 2015 “diascop 50 N” Slide Viewer

Slide viewer with 3x magnifying double lens for 5 x 5 cm (2 x 2 in.) framed slides and uncut film strips, change slider for convenient slide changing without annoying bright intervals, drop chute for up to 40 slides. Top section tiltable for adjusting desired viewing angle, mains operation.?

Lamp:?E 14, pear-shaped
Lenses: 76 x 76 mm (3 x 3 in.)
Cord:?1,8 m (6 ft.)
Dimensions (WxHxD): approx.150 x 80 x 175 mm? (5.9 x 3.1 x 6.9 in.)

Replacement lamp: 2016, 2008

$185.00

Related products

Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2482 Support / Wall Mount
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2482 Support / Wall Mount

0 out of 5
(0)

Swivel Bracket for prolite LED 37/25

Code no: 2482

Universal swivel bracket made of aluminum for prolite LED 37/25 light box (2479).
Can be used both as a support bracket and for wall mounting of the light box. Mounting accessories and two neodymium magnets included.

Adjustable set-up or tilt angle. Clamp levers for easy adjustment; can be repositioned without affecting the clamping force.

When used as a support bracket, the swivel bracket can be folded onto the light box to save space when not in use.

Two strong neodymium magnets for fixing originals to the light box.

Code no: 2482

Instruction manual

Subject to errors and technical changes.

SKU: KFO-KF-2482
$320.00
Add to cart
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2479 prolite LED 37/25 Light Box
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2479 prolite LED 37/25 Light Box

0 out of 5
(0)

prolite LED 37/25 Light Box

Code no: 2479

Professional daylight light box with high CRI LEDs. Steplessly dimmable. 6 mm T-slot on all four side sections for installation in systems and installations and for attaching accessories. Separate mains adapter.

Uniform and color correct illumination for viewing, sorting and photographic capturing (digitizing) of slides and other transparent originals or of other materials.

Specifications:
Illuminated area:???????????????? 37 x 25 cm (14.6 x 9.8 in.)
Light source:?????????????????????? 135 SMD LEDs
Color temperature:????????????? approx. 6000 Kelvin
Color rendition index: ???????? CRI: 95
Light density:?????????????????????? 9400 cd/m?
Operating voltage:?????????????? 24 V
Rated power:??????????????????????? 29 W
Dimensions (WxHxD):????????? 439 x 54 x 343 mm (17.3 x 2.1 x 13.5 in.)
Weight:???????????????????????????????? 3.12 kg (6.9 lbs.)

Scope of delivery: prolite LED 37/25 light box, mains adapter, mains lead, two neodymium magnets and two M6 square nuts.

Also available as prolite LED 50/37 light box (2480) with illuminated area 50 x 37 cm (19.7 x 14.6 in.).

Learn more:

High CRI LEDs: color temperature approx. 6000 Kelvin, color rendering index CRI: 95, flicker-free operation. Precise color rendering for inspection and photographic reproduction of originals.

Dimmer: brightness steplessly adjustable.

High-quality acrylic glass plate with particularly high transmission and also optimized light diffusion, cm and inch scales at the illuminated area.

Two strong neodymium magnets for fixing originals right next to the illuminated area.

Sturdy light metal housing with 6 mm T-slot on all four side sections, compatible with various connecting and accessory parts for 6-slot profile systems. This enables installation in systems and installations as well as the attachment of accessories to the light box.

A sliding block in each of the T-slots of the short sides can be moved and locked, internal thread 5 mm, e.g. for fastening the optional swivel bracket.

Two square nuts with M6 (6 mm) thread for insertion into the T-slot of the side sections.

Non-slip rubber feet.

Power supply via included mains adapter (input: AC 100-240 V, 50/60 Hz, output: DC 24 V, 2.5 A).

Universal swivel bracket made of aluminum as optional accessory. Can be used both as a support bracket and for wall mounting of the light box.

Accessories

2482 – Swivel Bracket for prolite LED 37/25

2485 – Neodymium Magnets

2351 – All-Purpose Magnifier 4.5 x

2332 – Base Magnifier 10-fold

2334 – Base Magnifier 8-fold

2457 – FilmCopy Vario

2459 – FilmCopy dia MF

Instruction manual

Subject to errors and technical changes.This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.

?

SKU: KFO-KF-2479
$2,565.00
Add to cart
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2005 “diascop 3” Slide Viewer
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2005 “diascop 3” Slide Viewer

0 out of 5
(0)

Slide viewer with 3 x magnifying double lens for framed slides, 5 x 5 (2 x 2 in.), and uncut film strips in protective sleeves. Drop chute with collecting tray. On/off switch and connecting socket for mains adapter 2009.

Battery operation:?2 x 1.5 V C-size (supplied without batteries)

Lamp:?2.5 V, .3 amp., E10, spherical

Lens:?76 x 76 mm (3 x 3 in)

Dimensions (WxHxD): 80 x 160 x 170 mm (3.1 x 6.3 x 6.7 in.)

(Replacement lamp: 2107)

SKU: KFO-KF-2005
$125.00
Add to cart
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2492 “prolite scan SC” Light Box
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2492 “prolite scan SC” Light Box

0 out of 5
(0)

Professional light box for transparent originals of all types, e.g. slides, negatives, X-rays and microfiches.

Color temperature 5000 Kelvin.

Four Dulux fluorescent lamps with high color reproduction quality CRI = 90-100.

Luminous density: 13.000 cd/m?.

All-electronic high-frequency operating system (approx. 40 kHz) for immediate ignition and flicker-free operation.

Especially suitable as backlight source for use with camera scanners.

No stroboscopic effects, hum and induction interference.

Very quiet vibration-free fan cooling permits unlimited continuous operation with minimum heating of the viewing surface.

Operating hours counter.

Cm and inch scales on the working surface.

Non-slip rubber feet.

Can be wall-mounted.

On/off switch.

Cord 2.5 m (8.2 ft.).

Specifications

Illuminated area:?approx. 48 x 44 cm (18.9 x 17.3 in.)

Lamps: 4 x 55 W, 5400 K

Dimensions (WxHxD):?approx. 63 x 9 x 53,5 cm (24.8 x 3.5 x 21.1 in.)

SKU: KFO-KF-2492
$3,875.00
Add to cart
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2483 Support / Wall Mount
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2483 Support / Wall Mount

0 out of 5
(0)

Swivel Bracket for prolite LED 50/37

Code no: 2483

Universal swivel bracket made of aluminum for prolite LED 50/37 light box (2480).
Can be used both as a support bracket and for wall mounting of the light box. Mounting accessories and two neodymium magnets included.

Adjustable set-up or tilt angle. Clamp levers for easy adjustment; can be repositioned without affecting the clamping force.

When used as a support bracket, the swivel bracket can be folded onto the light box to save space when not in use.

Two strong neodymium magnets for fixing originals to the light box.

SKU: KFO-KF-2483
$365.00
Add to cart
