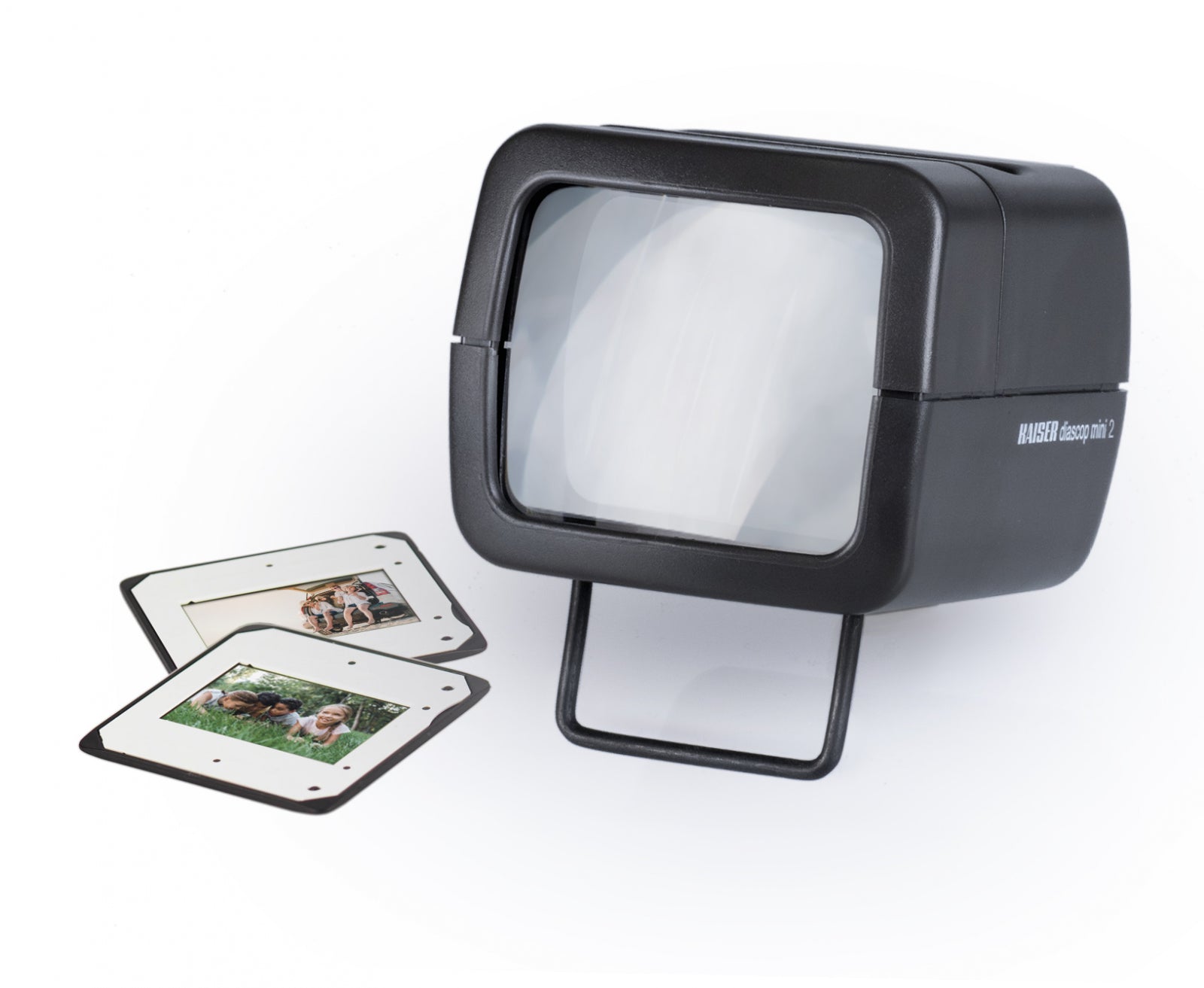

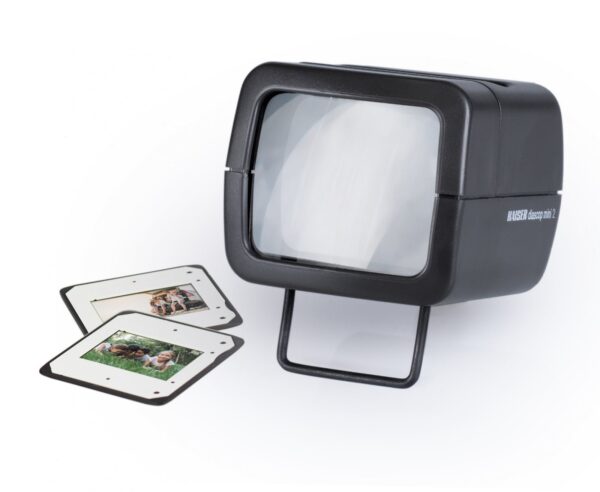

Kaiser Fototechnik 2011 “diascop mini 2” Slide Viewer
Small compact slide viewer for framed slides 5 x 5 cm (2 x 2 in.). With hinged prop.
Required batteries: 2?x 1,5 V AA-size (supplied without batteries)
- Lamp: 2,5 V, 0,3 A, E 10, spherical
- Lens:?63 x 53 mm (2.5 x 2.1 in.)
- Dimensions?(WxHxD):?approx. 75 x 60 x 105 mm (3 x 2.4 x 4.1 in.)
2010: with 3-fold magnifying double lens
2011: with 2-fold magnifying lens
$60.00
Related products
-
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2479 prolite LED 37/25 Light Box
prolite LED 37/25 Light Box
Code no: 2479
Professional daylight light box with high CRI LEDs. Steplessly dimmable. 6 mm T-slot on all four side sections for installation in systems and installations and for attaching accessories. Separate mains adapter.
Uniform and color correct illumination for viewing, sorting and photographic capturing (digitizing) of slides and other transparent originals or of other materials.
Specifications:
Illuminated area:???????????????? 37 x 25 cm (14.6 x 9.8 in.)
Light source:?????????????????????? 135 SMD LEDs
Color temperature:????????????? approx. 6000 Kelvin
Color rendition index: ???????? CRI: 95
Light density:?????????????????????? 9400 cd/m?
Operating voltage:?????????????? 24 V
Rated power:??????????????????????? 29 W
Dimensions (WxHxD):????????? 439 x 54 x 343 mm (17.3 x 2.1 x 13.5 in.)
Weight:???????????????????????????????? 3.12 kg (6.9 lbs.)
Scope of delivery: prolite LED 37/25 light box, mains adapter, mains lead, two neodymium magnets and two M6 square nuts.
Also available as prolite LED 50/37 light box (2480) with illuminated area 50 x 37 cm (19.7 x 14.6 in.).Learn more:
High CRI LEDs: color temperature approx. 6000 Kelvin, color rendering index CRI: 95, flicker-free operation. Precise color rendering for inspection and photographic reproduction of originals.
Dimmer: brightness steplessly adjustable.
High-quality acrylic glass plate with particularly high transmission and also optimized light diffusion, cm and inch scales at the illuminated area.
Two strong neodymium magnets for fixing originals right next to the illuminated area.
Sturdy light metal housing with 6 mm T-slot on all four side sections, compatible with various connecting and accessory parts for 6-slot profile systems. This enables installation in systems and installations as well as the attachment of accessories to the light box.
A sliding block in each of the T-slots of the short sides can be moved and locked, internal thread 5 mm, e.g. for fastening the optional swivel bracket.
Two square nuts with M6 (6 mm) thread for insertion into the T-slot of the side sections.
Non-slip rubber feet.
Power supply via included mains adapter (input: AC 100-240 V, 50/60 Hz, output: DC 24 V, 2.5 A).
Universal swivel bracket made of aluminum as optional accessory. Can be used both as a support bracket and for wall mounting of the light box.
Accessories
2482 – Swivel Bracket for prolite LED 37/25
Subject to errors and technical changes.This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
?
SKU: KFO-KF-2479 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2493 “prolite scan SC” Light Box
Fine-structured acrylic glass.
Mounts to Kaiser lighting units in connection with 5582 / 5592 Filter Holders. 2 pieces.
5583: For reflector size 50 x 21 cm (19.7 x 8.3 in.)
(Lighting Units 5556, 5557, 5558, 5588 and 5868)5593: For reflector size 64 x 21 cm (25.2 x 8.3 in.)
(Lighting Units 5589, 5590, 5591, 5595, 5656)SKU: KFO-KF-2493 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2457 FilmCopy Vario
Stable holding device for the exact positioning of slides and negatives of various formats.
- Includes insert for 35 mm slides in 5 x 5 cm mounts (4489) and 24 x 36 mm format masks (4486) with guide ridges for 35 mm film strips.
- With appropriate format masks or glass inserts (each available as accessories) also suitable for film strips and cut single slides and negatives of the 4.5 x 6 cm, 6 x 6 cm, 6 x 7 cm and 6 x 9 cm film formats and the 24 x 66 mm panoramic film format.
- Inserts are easy to change.
- Mounted 35 mm slides can be placed directly from above on the device, for placing film strips the pressure frame has to be opened.
- Bottom part with adjustable stop pins for different film widths plus four steplessly adjustable masking strips.
- Overlay mat sized 254 x 201 mm (10 x 7.9 in.) serves as a protection against stray light.
- Weight of FilmCopy Vario (w/o masks, w/o overlay mat): approx. 600 g (1.3 lbs.)
The FilmCopy Vario Kit (2458) already includes the super flat ?slimlite plano? LED light box (2453) for viewing and sorting slides and negatives and for illumination during digitization (illuminated area 22 x 16 cm (8.7 x 6.3 in.), 5000 Kelvin daylight, CRI = 95, continuously dimmable, battery and mains operation).
Scope of supply:
2457 FilmCopy Vario
– ?FilmCopy Vario? holding device
– Format mask for mounted 35 mm slides (4489)
– Pair of format masks 24 x 36 mm (4486)
– Overlay mat?
(2457)2458 FilmCopy Vario Kit
– FilmCopy Vario (2457)
– ?slimlite plano? LED light box (2453)Note: The ?FilmCopy dia MF? holding device (code no. 2459) is suitable for digitizing mounted medium format slides (4.5 x 6 cm and 6 x 6 cm slides in mounts 7 x 7 cm).?
Accessories
4489 – Format Mask for 5 x 5 cm Slides
4486 – Format Masks 24 x 36 mm
4491 – Format Masks 24.5 x 36.5 mm
4431 – Format Masks 4,5 x 6 cm
4492 – Format Masks 24 x 66 mm
4490 – Glass Inserts flat glass 6 x 9 cm
4433 – Glass Inserts AN glass/flat glass 6 x 9 cm
4435 – Anti-Newton Glass/Format Mask 24?x?36?(b)
4434 – Anti-Newton Glass/Format Mask 6 x 6 cm
4432 – Anti-Newton Glass/Format Mask 6 x 7 cm
4494 – Inserts for “do-it-yourself”
SKU: KFO-KF-2457 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2492 “prolite scan SC” Light Box
Professional light box for transparent originals of all types, e.g. slides, negatives, X-rays and microfiches.
- Color temperature 5000 Kelvin.
- Four Dulux fluorescent lamps with high color reproduction quality CRI = 90-100.
- Luminous density: 13.000 cd/m?.
- All-electronic high-frequency operating system (approx. 40 kHz) for immediate ignition and flicker-free operation.
- Especially suitable as backlight source for use with camera scanners.
- No stroboscopic effects, hum and induction interference.
- Very quiet vibration-free fan cooling permits unlimited continuous operation with minimum heating of the viewing surface.
- Operating hours counter.
- Cm and inch scales on the working surface.
- Non-slip rubber feet.
- Can be wall-mounted.
- On/off switch.
- Cord 2.5 m (8.2 ft.).
Specifications
- Illuminated area:?approx. 48 x 44 cm (18.9 x 17.3 in.)
- Lamps: 4 x 55 W, 5400 K
- Dimensions (WxHxD):?approx. 63 x 9 x 53,5 cm (24.8 x 3.5 x 21.1 in.)
SKU: KFO-KF-2492 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2480 prolite LED 50/37 Light Box
prolite LED 50/37 Light Box
Code no: 2480
Professional daylight light box with high CRI LEDs. Steplessly dimmable. 6 mm T-slot on all four side sections for installation in systems and installations and for attaching accessories. Separate mains adapter.
Uniform and color correct illumination for viewing, sorting and photographic capturing (digitizing) of slides and other transparent originals or of other materials.
Specifications:
Illuminated area: 50 x 37 cm (19.7 x 14.6 in.)
Light source: 270 SMD LEDs
Color temperature: approx. 6000 Kelvin
Color rendition index: CRI: 95
Light density: 10000 cd/m?
Operating voltage: 24 V
Rated power: 58 W
Dimensions (WxHxD): 594 x 54 x 439 mm (23.4 x 2.1 x17.3 in.)
Weight: 5.14 kg (11.3 lbs.)
Scope of delivery: prolite LED 50/37 light box, mains adapter, mains lead, two neodymium magnets and two M6 square nuts.
Also available as prolite LED 37/25 light box (2479) with illuminated area 37 x 25 cm (14.6 x 9.8 in.).
Learn more:
High CRI LEDs: color temperature approx. 6000 Kelvin, color rendering index CRI: 95, flicker-free operation. Precise color rendering for inspection and photographic reproduction of originals.
Dimmer: brightness steplessly adjustable.
High-quality acrylic glass plate with particularly high transmission and also optimized light diffusion, cm and inch scales at the illuminated area.
Two strong neodymium magnets for fixing originals right next to the illuminated area.
Sturdy light metal housing with 6 mm T-slot on all four side sections, compatible with various connecting and accessory parts for 6-slot profile systems. This enables installation in systems and installations as well as the attachment of accessories to the light box.
A sliding block in each of the T-slots of the short sides can be moved and locked, internal thread 5 mm, e.g. for fastening the optional swivel bracket.
Two square nuts with M6 (6 mm) thread for insertion into the T-slot of the side sections.
Non-slip rubber feet.
Power supply via included mains adapter (input: AC 100-240 V, 50/60 Hz, output: DC 24 V, 2.5 A).
Universal swivel bracket made of aluminum as optional accessory. Can be used both as a support bracket and for wall mounting of the light box.Accessories
2483 – Swivel Bracket for prolite LED 50/37
Subject to errors and technical changes.
This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
SKU: KFO-KF-2480
