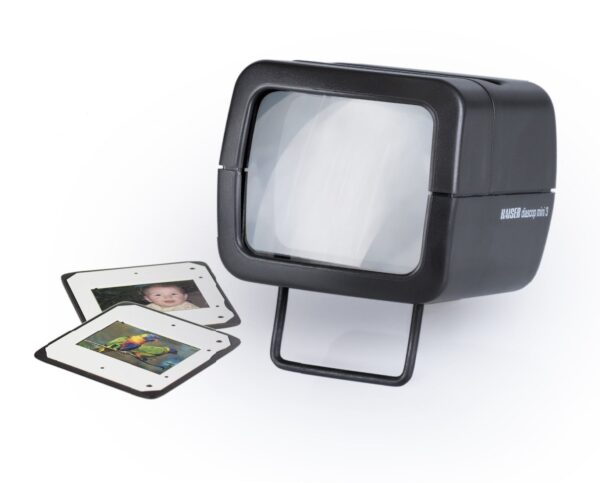

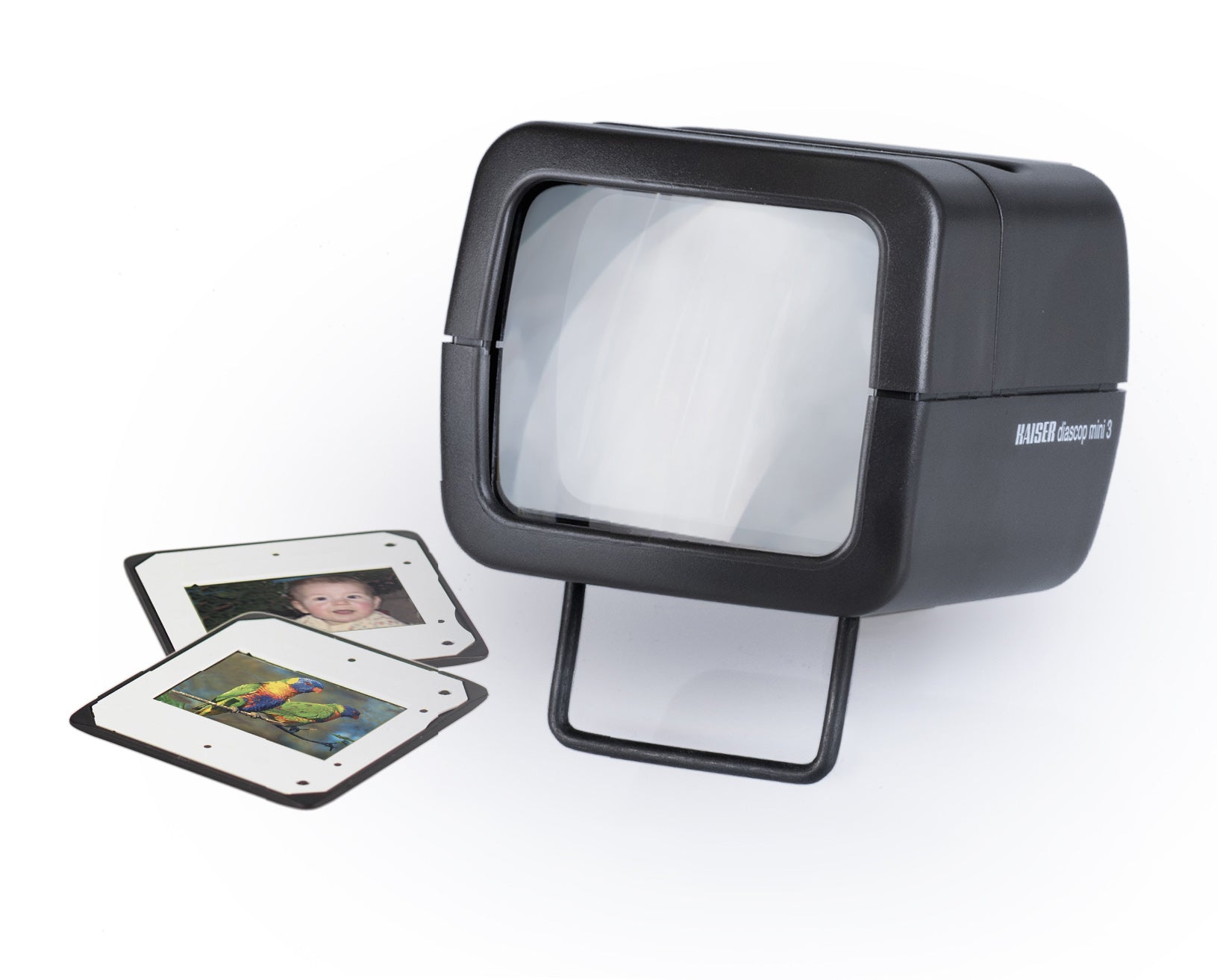

Kaiser Fototechnik 2010 “diascop mini 3” Slide Viewer
Small compact slide viewer for framed slides 5 x 5 cm (2 x 2 in.). With hinged prop.
Required batteries:?2?x 1,5 V AA-size (supplied without batteries)
- Lamp: 2,5 V, 0,3 A, E 10, spherical
- Lens:?63 x 53 mm (2.5 x 2.1 in.)
- Dimensions?(WxHxD):?approx. 75 x 60 x 105 mm (3 x 2.4 x 4.1 in.)
2010: with 3-fold magnifying double lens
2011: with 2-fold magnifying lens
$70.00
Related products
-
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2015 “diascop 50 N” Slide Viewer
Slide viewer with 3x magnifying double lens for 5 x 5 cm (2 x 2 in.) framed slides and uncut film strips, change slider for convenient slide changing without annoying bright intervals, drop chute for up to 40 slides. Top section tiltable for adjusting desired viewing angle, mains operation.?
- Lamp:?E 14, pear-shaped
- Lenses: 76 x 76 mm (3 x 3 in.)
- Cord:?1,8 m (6 ft.)
- Dimensions (WxHxD): approx.150 x 80 x 175 mm? (5.9 x 3.1 x 6.9 in.)
Replacement lamp: 2016, 2008
SKU: KFO-KF-2015 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2455 “slimlite plano” LED Light Box
Super flat and dimmable daylight light box with build-in rechargeable battery.
Uniform and color precise illumination for viewing, sorting and photographic capturing (digitizing) of slides or other transparent originals.
Various power supply possibilities: by a built-in lithium ion battery, the combined mains adapter/charger included or the USB cable using a powerbank, computer or car.
Color temperature approx. 5000 Kelvin and color rendering index CRI?of?95 provides for precise color rendering for inspection and photographic reproduction of originals.
?
cm and inch scale beside the illuminated area of acrylic-glass.A short touch of the touch switch activates the light source, a longer touch changes brightness continuously and saves the selected setting (memory function).
Scope of supply: Light box, mains adapter/charger, USB cable
2453: illuminated area: 22 x 16 cm (8.7 x 6.3 in.)- Light source: 23 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx.?750 cd/m?
- Power consumption: 3.6 W
- Li-ion battery: 1050 mA
- Operating time: approx.?5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 29 x 0.8 x 20 cm (11.4 x 0.3 x 7.9 in.)
- Weight: 570 g (20.1 oz.)
2454: illuminated area: 32 x 22.8 cm (12.6 x 9 in.)
- Light source: 23 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx.?600 cd/m?
- Power consumption: 4.1 W
- Li-ion battery: 1050 mA
- Operating time: approx.?3.5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 39 x 0.8 x 27 cm (15.4 x 0.3 x 10.6 in.)
- Weight: 1010 g (35.6 oz.)
2455: illuminated area: 42.9 x 30.9 cm (16.9 x 12.2 in.)
- Light source: 90 LEDs, 5000 Kelvin, CRI=95
- Luminous density: approx. 650 cd/m?
- Power consumption: 6.6 W
- Li-ion battery: 1050 mA
- Operating time: approx. 1.5 hours at full power, longer when dimmed
- Dimensions (WxHxD): 49.9 x 0.8 x 35 cm (19.6 x 0.3 x 13.8 in.)
- Weight: 1690 g (59.5 oz.)
Accessories
2351 – All-Purpose Magnifier 4.5 x
SKU: KFO-KF-2455 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2005 “diascop 3” Slide Viewer
Slide viewer with 3 x magnifying double lens for framed slides, 5 x 5 (2 x 2 in.), and uncut film strips in protective sleeves. Drop chute with collecting tray. On/off switch and connecting socket for mains adapter 2009.
- Battery operation:?2 x 1.5 V C-size (supplied without batteries)
- Lamp:?2.5 V, .3 amp., E10, spherical
- Lens:?76 x 76 mm (3 x 3 in)
- Dimensions (WxHxD): 80 x 160 x 170 mm (3.1 x 6.3 x 6.7 in.)
(Replacement lamp: 2107)
SKU: KFO-KF-2005 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2480 prolite LED 50/37 Light Box
prolite LED 50/37 Light Box
Code no: 2480
Professional daylight light box with high CRI LEDs. Steplessly dimmable. 6 mm T-slot on all four side sections for installation in systems and installations and for attaching accessories. Separate mains adapter.
Uniform and color correct illumination for viewing, sorting and photographic capturing (digitizing) of slides and other transparent originals or of other materials.
Specifications:
Illuminated area: 50 x 37 cm (19.7 x 14.6 in.)
Light source: 270 SMD LEDs
Color temperature: approx. 6000 Kelvin
Color rendition index: CRI: 95
Light density: 10000 cd/m?
Operating voltage: 24 V
Rated power: 58 W
Dimensions (WxHxD): 594 x 54 x 439 mm (23.4 x 2.1 x17.3 in.)
Weight: 5.14 kg (11.3 lbs.)
Scope of delivery: prolite LED 50/37 light box, mains adapter, mains lead, two neodymium magnets and two M6 square nuts.
Also available as prolite LED 37/25 light box (2479) with illuminated area 37 x 25 cm (14.6 x 9.8 in.).
Learn more:
High CRI LEDs: color temperature approx. 6000 Kelvin, color rendering index CRI: 95, flicker-free operation. Precise color rendering for inspection and photographic reproduction of originals.
Dimmer: brightness steplessly adjustable.
High-quality acrylic glass plate with particularly high transmission and also optimized light diffusion, cm and inch scales at the illuminated area.
Two strong neodymium magnets for fixing originals right next to the illuminated area.
Sturdy light metal housing with 6 mm T-slot on all four side sections, compatible with various connecting and accessory parts for 6-slot profile systems. This enables installation in systems and installations as well as the attachment of accessories to the light box.
A sliding block in each of the T-slots of the short sides can be moved and locked, internal thread 5 mm, e.g. for fastening the optional swivel bracket.
Two square nuts with M6 (6 mm) thread for insertion into the T-slot of the side sections.
Non-slip rubber feet.
Power supply via included mains adapter (input: AC 100-240 V, 50/60 Hz, output: DC 24 V, 2.5 A).
Universal swivel bracket made of aluminum as optional accessory. Can be used both as a support bracket and for wall mounting of the light box.
Accessories
2483 – Swivel Bracket for prolite LED 50/37
Subject to errors and technical changes.
This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
SKU: KFO-KF-2480 -
Slide viewers, duplicators and light boxes
Kaiser Fototechnik 2458 FilmCopy Vario Kit
Stable holding device for the exact positioning of slides and negatives of various formats.
- For digitizing by using a camera with macro lens (1:1) mounted to a copy stand or tripod. To use on light boxes.
- Includes insert for 35 mm slides in 5 x 5 cm mounts (4489)?and 24 x 36 mm format masks (4486)?with guide ridges for 35 mm film strips.
- With appropriate format masks or glass inserts (each available as accessories) also suitable for film strips and cut single slides and negatives of the 4.5 x 6 cm, 6 x 6 cm, 6 x 7 cm and 6 x 9 cm film formats and the 24 x 66 mm panoramic film format.
- Inserts are easy to change.
- Mounted 35 mm slides can be placed directly from above on the device, for placing film strips the pressure frame has to be opened.
- Bottom part with adjustable stop pins for different film widths plus four steplessly adjustable masking strips.
- Overlay mat sized 254 x 201 mm (10 x 7.9 in.) serves as a protection against stray light.
- Weight of FilmCopy Vario (w/o masks, w/o overlay mat): approx. 600 g (1.3 lbs.).
The FilmCopy Vario Kit (2458) already includes the super flat ?slimlite plano? LED light box (2453) for viewing and sorting slides and negatives and for illumination during digitization (illuminated area 22 x 16 cm (8.7 x 6.3 in.), 5000 Kelvin daylight, CRI = 95, continuously dimmable, battery and mains operation).
?
?
SKU: KFO-KF-2458
