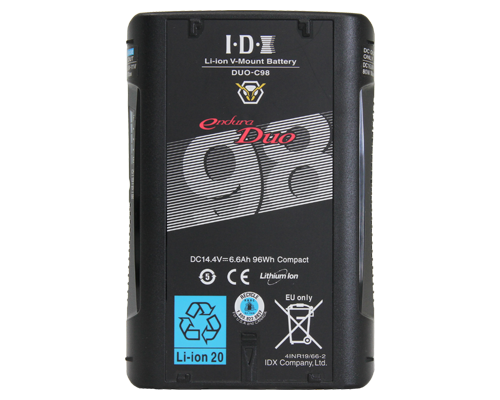

IDX Duo-C98 (96Wh Li-Ion V-Mount Battery w 2x D-Tap and USB)
The DUO-C98 is the worlds most compact high capacity IATA friendly(<100Wh) Li-ion professional battery with multiple power outputs – perfect for handheld gimbal and aerial setups. The DUO-C98 comes equipped with two built-in D-Taps and a single built-in USB output to power ancillary accessories.
- 14.4V 96Wh V-Mount Battery
- Data Information Displays in Viewfinder
- Handles Up to 10A Loads
- Two Unregulated D-Tap Accessory Outputs
$374.00
The DUO-C98 is the worlds most compact high capacity IATA friendly(<100Wh) Li-ion professional battery with multiple power outputs – perfect for handheld gimbal and aerial setups. The DUO-C98 comes equipped with two built-in D-Taps and a single built-in USB output to power ancillary accessories.
| Capacity: | 96Wh (14.4V/ 6.6Ah) |
| Max Output Voltage: | 16.8V DC |
| Nominal Voltage: | 14.4V DC |
| Max Discharge Current: | 10.5A”¡ |
| D-Tap: | 80W each |
| USB: | DC 5.0V /2.3A |
| End Voltage: | 11V |
| Battery Protection: | Reverse charge, Over charge, Over discharge, Over current, Thermal protection |
| Ambient Temperature: | To charge: 32°F ~ 104°F (50°F ~ 86°F recommended) To discharge: -4°F ~ 113°F (50°F ~ 104°F recommended) To store: -4°F ~ 122°F (less than 1 month) |
| Dimensions: | 3.82(W) x 5.75(H) x 1.54(D) inches |
| Weight: | 1.41 lbs approx. |
