Gravity GCARTL01B Large Multifunctional Trolley

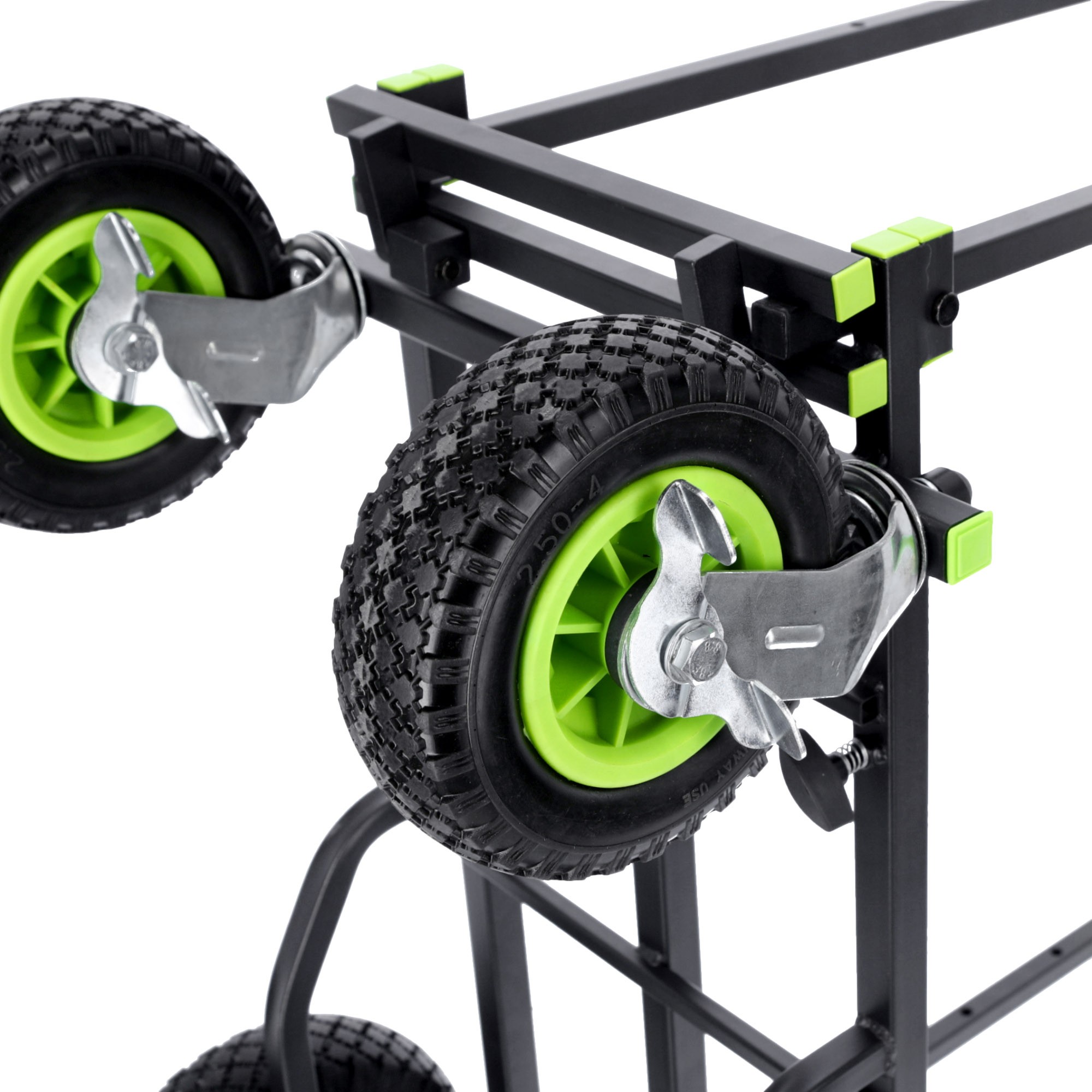

Take the weight off your load with a multi-functional cart. The Gravity Cart L 01 B chassis is made of steel to ensure stability. Two fixed and two rotating low-rolling resistance, anti-slip tyres provide extra maneuverability even for higher curbs or rough terrain.
The Gravity Cart is your trusty companion before and after every show. And the best thing: The light-weight, compact-folded, multi-functional cart lifts easily from the tour bus while also performing effortlessly when fully loaded with equipment. With its up to 1.35 m extendable chassis and 170 kg load capacity, your equipment is quickly and safely transported to and from the stage.
And thanks to its optimal ergonomic design: without straining your back.
$512.10
Product type: Multifunctional trolley
Handle material: Steel
Handle colour: Black
Drawer material: Steel
Dimensions unfolded (L x W x H): 735 x 520 x 950 mm
Dimensions folded (L x W x H): 870 x 520 x 300 mm
Dimensions loading platform: (730 – 1265) x 345 x 950 mm
Number of extensions: 1
Length: 870 – 1355 mm
Front wheels Ø: 210 mm
Rear wheels Ø: 260 mm
Material front wheels: PU
Material rear wheels: PU
Max. Extension length: 1355 mm
Wheelbase: 450 mm
Max. load capacity: 170 kg
Weight: 16.5 kg
Related products
-
Main cart
Inovativ Apollo 40 Workstation
INOVATIV’s most heavy duty design, the Apollo uses our 10 in. removable EVO Wheel System and incorporates a top and bottom shelf that easily assembles without the use of tools. The Apollo is not height adjustable, but has a standard height of 40.5 in. providing you a work surface at a comfortable standing height. The shelf’s are ?hemmed? and compared to our traditional sheet metal shelves, the Apollo?s shelf’s have been increased in thickness by 56% to support heavier loads. Additionally, the Apollo?s bottom shelf includes our first ever internal Main-Frame System, greatly increasing the carts stability and overall payload capacity.
The upright tubes are secured using our Corner Mold Lock-System that doubles as a location to mount Apollo specific accessories directly into the carts upright posts, from the top deck. These four vertical posts are 14% thicker than our standard workstation posts and have been positioned at the corners of the cart. Because of these design changes, the Apollo is the most stable and durable cart INOVATIV has produced to date.
Furthermore, the Apollo?s 4-Sided Top Shelf has a hinged front-panel that quickly transforms your top shelf into a flat working surface. Having a flat working surface, clear of an edge, greatly improves stationary workflows. Simply lift up on the front panel and lock into place with our ?bolt-action? latches to keep your items safe and secure while on the move.
The Apollo uses our Pack Latch System to easily connect the top and bottom shelves together when packed, and our integrated Skate Wheels to easily transport the workstation when in case-mode. All of these features are jammed packed into the Apollo?s design, and when packed, the Apollo is a slim 7.5 in. thick.
SKU: INV-AE 0040 -
Main cart
Inovativ Echo 36 Workstation
The Echo is a mobile workstation designed for studio work featuring a height adjustable three-sided top shelf, top and bottom locking drawers, permanent wheels, premium foot brake system, and optional Hydraulic Brake System. The Echo is a partially collapsible workstation cart available in two sizes (36 in. or 48 in.) that can be packed down for storage or transportation.
The three-sided top shelf has an open side for easy access to gear as well as comfortable keyboard use. The work surface of the Echo is equipped with a 2.5 in. cable passthrough hole for superior cable management and is finished with INOVATIV?s signature black outdoor marine carpet. The 3-Sided Top is height adjustable in 2 in. increments, with a minimum height of 38.25 in. and maximum height of 48.25 in., measured from the ground to table surface.
The bottom shelf external mainframe provides stability for an increased payload of up to 1,000 lbs. and incorporates several pass-through holes to house the hydraulic lines of our Hydraulic Brake System. All Echo workstations come standard with two Channel Blocks for mounting additional vertical accessories such as our tripod system or mast riser.
The EVO Wheel System is permanently attached to the Echo for stability and does not quick-release. The 10 in. wheels feature sealed bearings for a smooth ride. Foot Brakes are included standard with the EVO Wheel System.
Users can choose a version of Echo with our one-of-a-kind Hydraulic Brake System, or upgrade later on. The Hydraulic Brake System is lever-actuated from the handle of the Echo and applies control to the rear wheels for maximum braking power and is ideal for maneuvering down ramps or hills with precision. For secure cart parking, lock down both the front EVO Wheel brakes and rear Hydraulic Brakes.
Our tool-less Quick Grip handles are height adjustable and can be rotated 180 degrees for user customized positioning.
Soft close combo-locking drawers padded with marine carpet are mounted beneath both the top and bottom shelf for safe storage of personal items.
The two Accessory Crossbars provide multiple 3/8?-16 mounting points for attaching gear such as our Cable Hooks to the Echo.
The Echo is available in two sizes and four variations: Echo 36, Echo 36 with Hydraulic Brake System, Echo 48, and Echo 48 with Hydraulic Brake System. If you currently own an Echo, the Hydraulic Brake System may be purchased separately here.
SKU: INV-E 0036 -
Main cart
Gravity GCARTM01B Multifunctional Trolley
Take the weight off your load with a multi-functional cart. The Gravity Cart chassis is made of steel to ensure rigidity. Two fixed and two rotating low-rolling resistance, anti-slip rubber tyres provide extra manoeuvrability. The Gravity Cart is your trusty companion before and after every show. And the best thing is: The light-weight, compact-folded, multi-functional cart lifts easily from the tour bus while also performing effortlessly when fully loaded with equipment. With its (up to 0.98 m) extendable chassis and 150 kg load capacity, your equipment is quickly and safely transported to and from the stage. And thanks to its optimal ergonomic design: without straining your back.
SKU: GRA-GCARTM01B -
Main cart
Inovativ Apollo 52 Motorized Workstation
The Motorized Apollo Workstation is a fully integrated system that allows users to effortlessly move payloads up to 1,200 pounds with ease across studios, campuses, and rough terrain to save time and reduce physical strain. It features a complete Apollo workstation cart equipped with the Motorized Wheel System, Hydraulic Brake System, Power Distribution Plate, as well as Top and Bottom Locking Drawers.
The handle throttle assembly powers forward and reverse movement of the dual 10 in. rear wheels, for up to 15 hours or 40 miles of full throttle use. The power supply is integrated into the bottom shelf drawer and provides additional power distribution when charging to USB-A, USB-C and US Type B outlets.
Take full control of the Motorized Apollo Workstation with the Hydraulic Brake System – ideal for maneuvering up or down ramps or hills with precision. This system is lever-actuated from the handle and applies control to the rear wheels for maximum braking power.
The Motorized Apollo is completely tool-less – featuring top and bottom shelves that easily assemble without the use of tools. The Apollo has a fixed height of 40.5 in. providing a comfortable standing height work surface. The shelves feature hemmed edges for safety and boast a 56% increase in thickness compared to our lightweight workstations in order to support heavier payloads. Additionally, the bottom shelf features an internal Main-Frame System, greatly increasing the carts stability and overall payload capacity. The Motorized Apollo continues to meet tough demands with flat proof tires, and corrosion resistant stainless steel and aluminum construction throughout.
The upright tubes are secured using our Corner Mold Lock-System that doubles as a location to mount Apollo specific accessories directly into the carts upright posts, from the top deck. These four vertical posts are 14% thicker than our standard workstation posts and have been positioned at the corners of the cart.
The Top Shelf features four sides and a hinged front panel that quickly opens for comfortable keyboard access. Removable 3/8″-16 and 1/4″-20 Threaded Rail Plates supply mounting additional accessories.
Soft close combo-locking drawers padded with marine carpet are mounted beneath both the top and bottom shelf for safe storage of personal items.The Apollo uses our Pack Latch System to easily connect the top and bottom shelves together when packed down. The Motorized Apollo is designed so that while the Motorized Wheel System along with the top and bottom shelf remains intact, the top shelf can still be packed down into a more compact configuration.
SKU: INV-AE 0052-M -
Main cart
Inovativ Apollo 40 Motorized Workstation
The Motorized Apollo Workstation is a fully integrated system that allows users to effortlessly move payloads up to 1,200 pounds with ease across studios, campuses, and rough terrain to save time and reduce physical strain. It features a complete Apollo workstation cart equipped with the Motorized Wheel System, Hydraulic Brake System, Power Distribution Plate, as well as Top and Bottom Locking Drawers.
The handle throttle assembly powers forward and reverse movement of the dual 10 in. rear wheels, for up to 15 hours or 40 miles of full throttle use. The power supply is integrated into the bottom shelf drawer and provides additional power distribution when charging to USB-A, USB-C and US Type B outlets.
Take full control of the Motorized Apollo Workstation with the Hydraulic Brake System – ideal for maneuvering up or down ramps or hills with precision. This system is lever-actuated from the handle and applies control to the rear wheels for maximum braking power.
The Motorized Apollo is completely tool-less – featuring top and bottom shelves that easily assemble without the use of tools. The Apollo has a fixed height of 40.5 in. providing a comfortable standing height work surface. The shelves feature hemmed edges for safety and boast a 56% increase in thickness compared to our lightweight workstations in order to support heavier payloads. Additionally, the bottom shelf features an internal Main-Frame System, greatly increasing the carts stability and overall payload capacity. The Motorized Apollo continues to meet tough demands with flat proof tires, and corrosion resistant stainless steel and aluminum construction throughout.
The upright tubes are secured using our Corner Mold Lock-System that doubles as a location to mount Apollo specific accessories directly into the carts upright posts, from the top deck. These four vertical posts are 14% thicker than our standard workstation posts and have been positioned at the corners of the cart.
The Top Shelf features four sides and a hinged front panel that quickly opens for comfortable keyboard access. Removable 3/8″-16 and 1/4″-20 Threaded Rail Plates supply mounting additional accessories.
Soft close combo-locking drawers padded with marine carpet are mounted beneath both the top and bottom shelf for safe storage of personal items.The Apollo uses our Pack Latch System to easily connect the top and bottom shelves together when packed down. The Motorized Apollo is designed so that while the Motorized Wheel System along with the top and bottom shelf remains intact, the top shelf can still be packed down into a more compact configuration.
SKU: INV-AE 0040-M
