HMI lighting
Arri EB MAX 12/18 ALF DMX AutoScan 1000 Hz
Starting with the EB MAX 1.8 in 2017 ARRI built the foundation for a whole new range of high speed electronic ballasts – the EB MAX Range. Together with three other models − EB MAX 2.5/4, EB MAX 6/9 and EB MAX 12/18 − the MAX ballasts offer cutting-edge features with new remote control possibilities from 575 up to 18,000 W.
Combined with state-of-the-art ARRI daylight lampheads such as the True Blue Daylight or M-Series, the EB MAX Range enables optimal performance and advanced control for high image quality at any frame rate.
For ultimate ease of use, indicators on the ballast’s front panel display the lamp wattage, DMX channel, operation mode and selected lamp frequency.
SKU: ARR-L2.0016748 -
HMI lighting
K5600 Alpha HMI Fresnel 6/9kW Head Kit
The extremely compact and lightweight Alpha 9K: the go-to fixture for location shooting.
The Alpha 9K is the only 9K Fresnel on the market. Whether it’s creating a soft Fresnel look or a hard shadow, the Alpha 9K gives users the tool they need to get the job done. Additionally, the specially designed air ventilation system allows heat to be dissipated efficiently. In fact, it runs so “cool,” it can be illuminated in the straight down position.
Extremely Lightweight
“Open-Eye” HMI fixture converting to a very small Fresnel by a unique Drop-In Flood Fresnel Lens reducing overall fixture weightReflector and Chariot
Revolutionary Quartz Composite Reflector – 15% brighter than standard aluminum reflectorsCooling
Combination of high-efficiency small Quartz reflector with computer- designed structural air vents provides efficient convection cooling in any operating position – even pointing straight downLamp Suspension
Quick and safe release of the lamp via a simple latch on the ceramic G38 socketVersatility
Alpha 9K Spacelight Accessory can be used with industry standard spacelight accessories to create the brightest daylight spacelight on the marketSKU: K56-K9KALPHA -
HMI lighting
Arri ARRIMAX 18/12 HMI MAX Par MAN blue/silver
The original Academy Award-winning ARRIMAX remains the ultimate choice for productions requiring maximum light output. The 580 mm (22.8”) diameter, parabolic facetted reflector provides continuous focus adjustment from 15° to 50° beam angle and, since the ARRIMAX does not require a set of spread lenses, shadows are sharp and easily cut.
Safe and easy for both lamp type bases 18/12 kW, 18,000 W single ended lamps use a sturdier GX51 lamp base for which ARRI engineers have designed a special lampholder that alleviates mechanical stress from the lamp pins, now serving only as an electrical connection. The lamp clamping mechanism is self-aligning and uses a rugged, recessed lamp lock handle. To ensure that crews can easily use 12,000 W lamps or versions of 18,000 W single ended lamps with G38 bases, the new lampholder accepts either lamp type with no modification or adjustment.
SKU: ARR-L1.37950.B -
HMI lighting

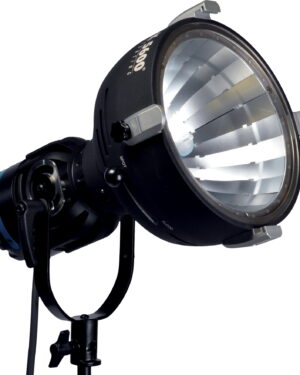

K5600 Joker2 HMI Par 1.6kW Zoom Head Kit
The 1600W is the most powerful unit of the Joker² range. At 1600W, this Joker is comparable to over 6000W of a Quartz fixture’s output and produces one full stop more than our Joker² 800.
Three Configurations
JOKER² : without optics, the bare-bulb output is optimal for use in Lightbanks and lanterns due to its ability to create perfectly even distribution within these accessories.
JOKER² (PAR VERSION) : it features a specular reflector and a set of four PAR 64 lenses (Medium, Wide, Super Wide and Frosted Fresnel). These lenses provide various light patterns and a maximum output due to the reflector design (parabolic reflector) and finish.
JOKER² (ZOOM VERSION) : revolutionary, this lensless and focusable beamer gives 15 to 60 degrees of even light output. With its physical similarities to a faceted umbrella, the soft finish beautifully distributes light across your subject.Convenience & Travel
With its rolling case, the Joker² 1600W is a powerful fixture easy to take along on any journey. Additionally, because It can be run on domestic electrical supply, there is no need for a generator.
SKU: n/a -
HMI lighting
K5600 Alpha HMI Fresnel 18kW Head Kit
Weighing only 125 lbs and having a small shallow profile of merely 23”, the Alpha 18K can use a Ceramic glass lens or Standard 24” Fresnel to create the smallest, lightest and most versatile 18K ever designed.
At the core of this innovation is a custom made reflector molded out of quartz composite material. This allows the lamp to be placed much closer to the reflector, therefore reducing the physical size of the Alpha 18K by a third compared traditional 18K’s on the market. The light output from this new reflector increases output by nearly 15%, adding a softer and smoother lighting pattern compared to the oversized conventional aluminum reflector.
The extrusion/vent system is precisely angled to get maximum cooling efficiency , the small diameter reflector allows for better heat circulation, along with a new back bulkhead, which assures that the Alpha 18K operating temperatures remain within specifications in any critical position, including straight down.
A double suspension system (one to the lamp heat sinks and one to the chassis support) makes the Alpha 18K lamp less fragile to rough handling, occurring during location transportation.
Whether it’s creating a soft Fresnel look or a hard shadow using the open eye set-up, the Alpha 18K gives any cinematographer or lighting director the tool he needs to get the job done.
SKU: K56-K18KALPHA
