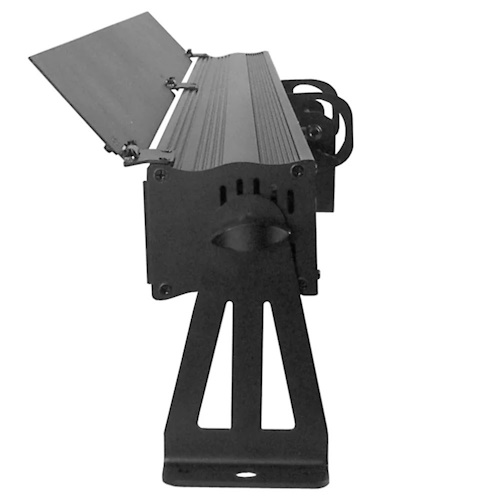

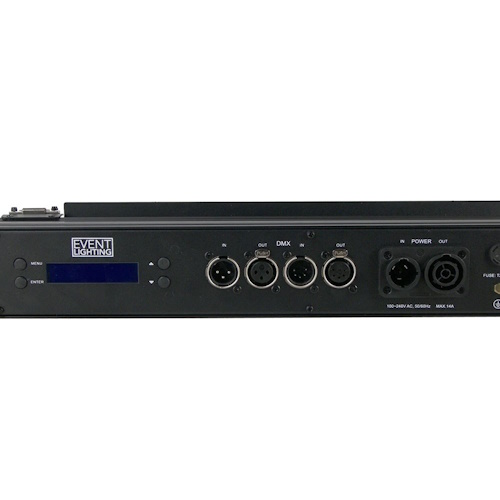

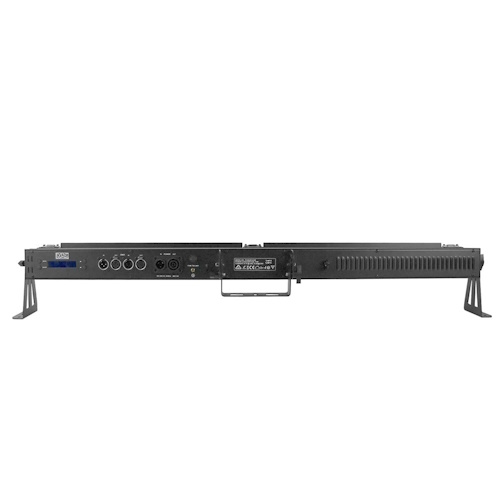

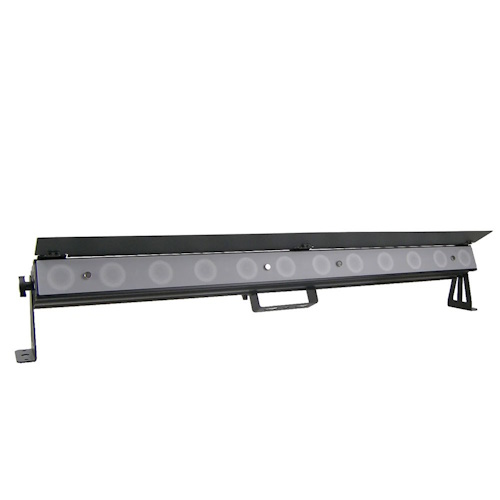

Event Lighting PIXBAR12H LED Pixel Bar 12 x 12W RGBWAU w/ Barndoor & Frost Filter
- Light Source: 12x 12 W RGBWAU LEDs
- Beam Angle: 30° (optional: 55°)
- Output: 2,050 lux @ 2 m RGBWAU full on
- PWM: 12,000 Hz
- LED Life: 50,000 hours
- Dimming: 4 x 16-bit Dimming Curves
- Strobe: 1~30 Hz
- Input Voltages: 100~240 V AC, 50/60 Hz, 150 W
- Power Connection: True1 in/out
- Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
- Display: 4-button LCD control panel
- Control Protocol: DMX512
- DMX Channels: 3 / 4 / 4A / 8 / 12 / 24 / 72 / 74
- Control Interface: 3-pin and 5-pin XLR in / out
- Software Upgrade via DMX: Yes
- Housing Materials: Aluminium, matte black finish
- Barndoor: included
- Frost filter: included
- Cooling: Fanless Cooling
- Dimension: 1050 x 165 x 80 mm
- Net Weight: 4.5 kg
$859.00
Event Lighting PIXBAR12H LED Pixel Bar, a dynamic solution featuring 12 x 12W RGBWAU LEDs that bring vibrant and versatile lighting possibilities to your space. Whether you’re a professional or just starting, this Pixel Bar delivers stunning visuals with a beam angle of 30° (optional 55°) and a powerful output of 2,050 lux at 2 meters when RGBWAU is in full swing.
With a remarkable LED life of 50,000 hours and a PWM of 12,000 Hz, the PIXBAR12H ensures longevity and smooth lighting transitions for your events. The effects are further enhanced with 4 x 16-bit dimming curves and an adjustable strobe ranging from 1 to 30 Hz.
Powerful yet efficient, the PIXBAR12H operates with 100-240V AC input, featuring a True1 in/out power connection. The comprehensive control options include DMX, manual, auto, sound-active, master/slave, and multi-fixture chase modes, making it adaptable to various setups. The 4-button LCD control panel allows easy navigation, while the DMX512 protocol ensures seamless integration with your lighting system.
Crafted with precision, the PIXBAR12H boasts a sleek matte black aluminium finish, providing durability and a touch of elegance. Included barndoor and frost filter accessories offer additional flexibility in shaping and softening the light output. The fanless cooling design keeps the fixture silent, ensuring an immersive lighting experience.
Compact and lightweight, the PIXBAR12H measures 1050 x 165 x 80 mm and weighs just 4.5 kg. Upgrade your lighting game with the Event Lighting PIXBAR12H LED Pixel Bar – where innovation meets performance for an unforgettable visual experience.
