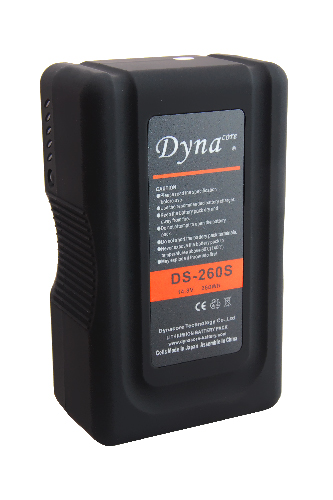

Dynacore DS-260S Battery V-Lock Regular 14.8V 260Wh

Dynacore

  • Lightweight, compact, high-performance Lithium-ion battery pack.
  • The five-step LED power status indicator shows accurately remaining battery capacity.
  • Industry-standard Power Tap can fit on-board Camera Light.
  • Built-in intelligent IC circuit control, protection for over-charge, over-discharge, over current, short circuit and non-equilibrium an unconventional situation.
  • Non-memory effect.
  • Environment-friendly: No poisonous elements such as hydrargyrum and cadmium, etc.

$559.00

Dynacore DS series 260wh V-Lock battery.

DN series batteries have an innovative dual housing structure: the inner cell cage and outer anti-shock housing.
The new structure makes the battery strong with anti-shock capabilities that protect the battery from damage.

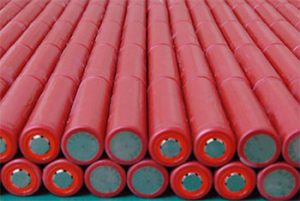

High-Class Imported Lithium Cells
Dynacore has been one of the leading brands in the professional broadcast field for over a decade.
The first reason is the high-quality Lithium cells adopted.
The cells must have consistency to each other ensuring the highest performance of the whole battery pack. When in storage, the self-discharging rate is minimal, again extending the battery life effectively.

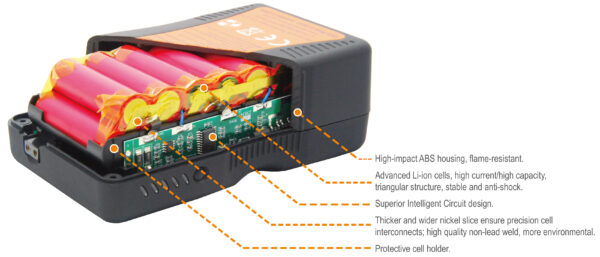

Excellent production craft
Dynacore pays attention to the details inside the battery pack, by using the unique designed nickel slice to solder the cells, minimizing the voltage drop, dissipate heating, and enhance the assembly intensity.
Cells are arranged as a triangular structure in the battery pack, stable and anti-shock.

Multiple Safety Protection Design
Built-in intelligent IC circuit control will cut off power when over-voltage, short-voltage, over-current, short circuit, over-charging, over-discharging, and non-equilibrium an unconventional situation.
Moreover, the battery housing is made from the high-impact ABS, with waist design and non-slip tread for secure handling.

Specifications:

 Model

 DS-260S

 Battery Type

  V-Mount

 Voltage

  14.8V

  Capacity

260Wh/17.4Ah

 Max Output

 220W,18A

 Dimension

 170 x 100 x 64 (mm)

 Weight

 1.40Kg

 Operating temperature

  -30°C  ~ +50°C

SKU: DYN-DS-260S Category: Brand:
