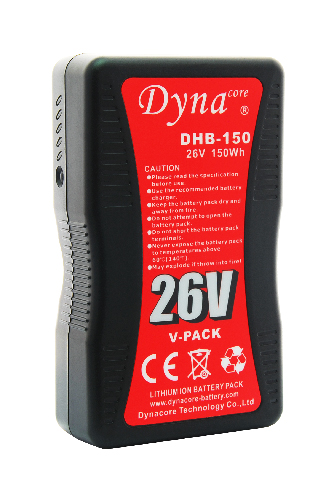

Dynacore DHB-150 Battery V-Lock 26V 150Wh
To use these, you must also purchase a Dynacore D-HB26 Safety Adapter V-Lock 26V for each battery.
- Voltage: 26V
- 150Wh/5.8Ah capacity
- Max Output: 200W
- Max Output Current: 20A
- Max Input Current: 5A
- Operating Temp: -30C
$338.00
Dynacore DHB-150wh 26 Volt High Performance Battery
The Dynacore DHB series batteries are made the highest quality of cells. The cells are sourced with minimal difference between each cell and strict production requirements to create the highest quality product. This ensures the batteries with greatest & safest working performance and long operating life.
Internally these batteries employ extra bracing to isolate the cells from PCB, helping to prevent prevent damage from shock caused by dropping.
Thicker and wider nickel sheet is chosen to connect all of the cells to reduce any voltage changes and increase the heat dissipation, and high strength welds connect all of cells.
Each housing is made from High strength ABS material for the highest quality of protection and durability. The compact design allows for ease of use on set or in studio.
Built-in USB output (5V, 2.1A) can fit to charge your devices (mobile phones, Ipad, etc).
Specification:
|
Model |
DHB-150 |
|
Battery Type |
V-Mount/Gold Mount |
|
Voltage |
26V |
|
Capacity |
150Wh/5.8Ah |
|
MAX Output Power |
200W |
|
Max Output Current |
20A |
|
Max Input Current |
5A |
|
Dimension |
170mm x 100mm x 47mm (V-Mount) |
|
170mm x 100mm x 52mm (Gold Mount) |
|
|
Weight |
0.94Kg(V-Mount) |
|
0.96Kg(Gold Mount) |
|
|
Operating temperature |
-30°C ～ +50°C |
