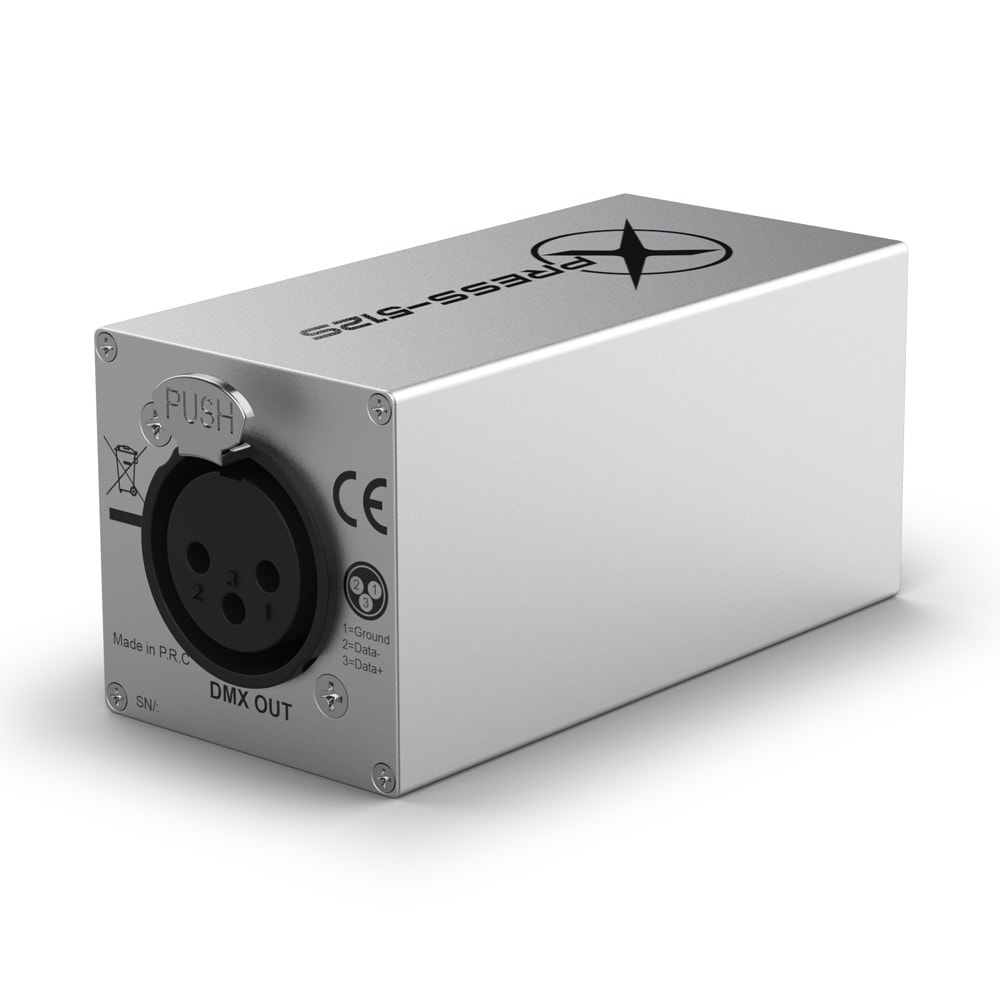

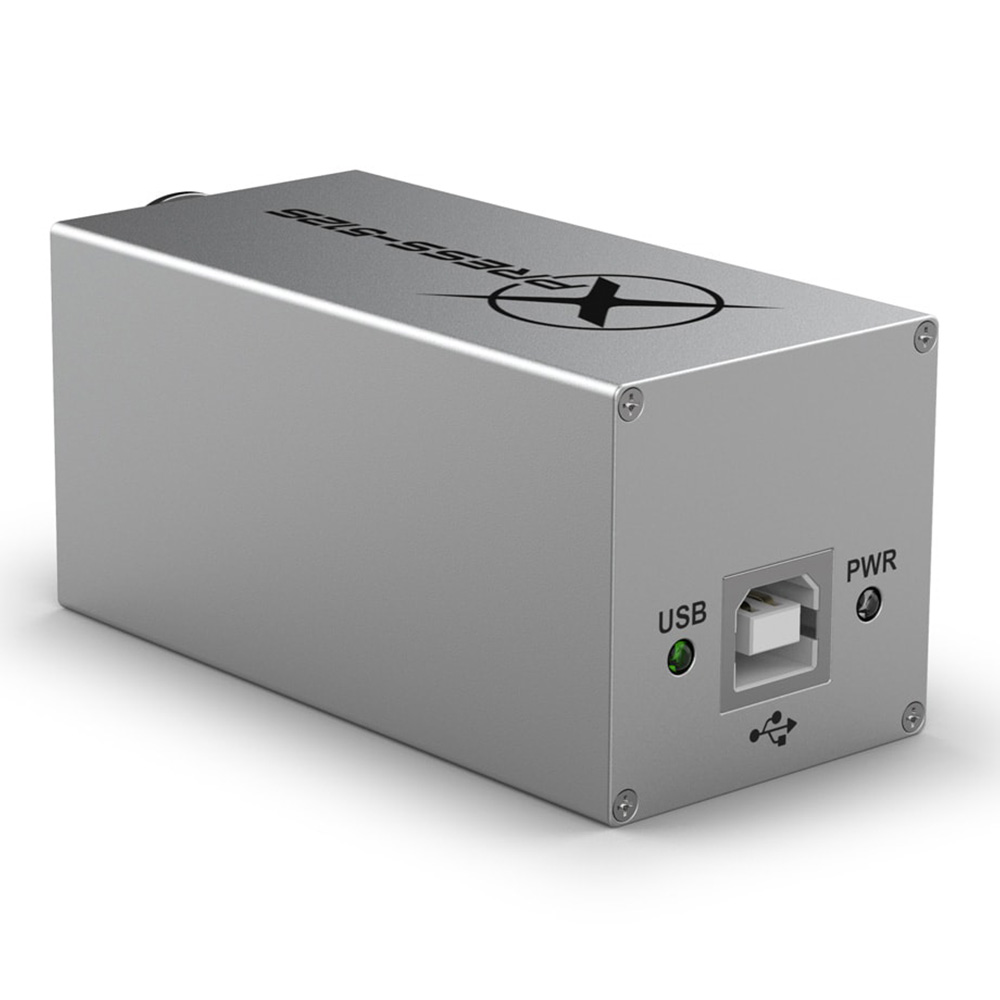

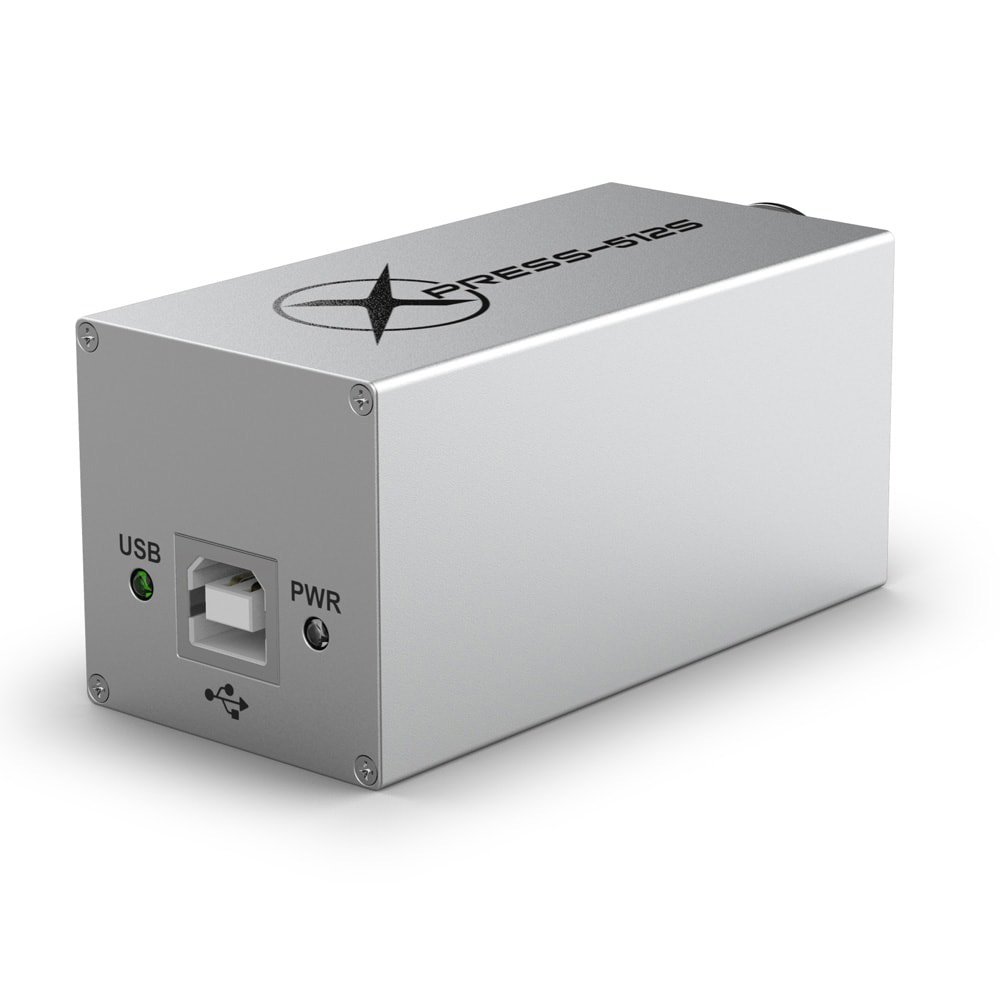

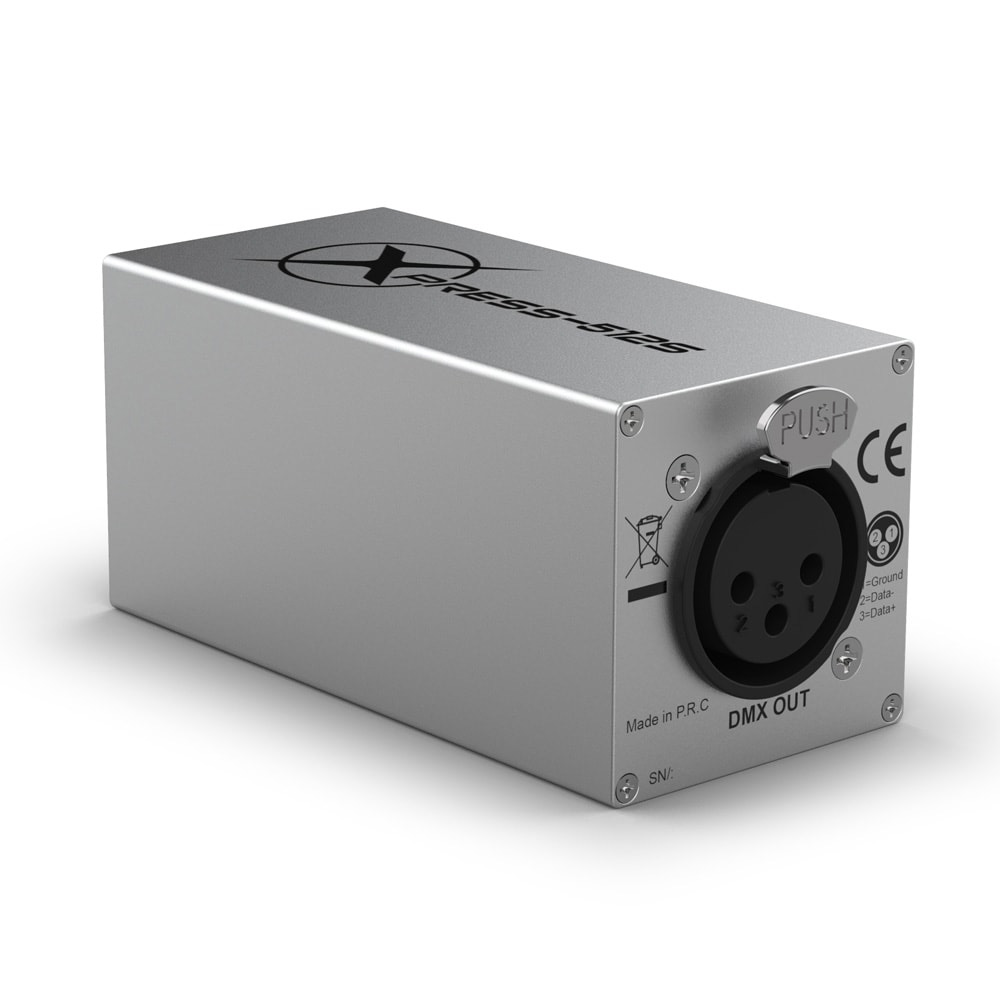

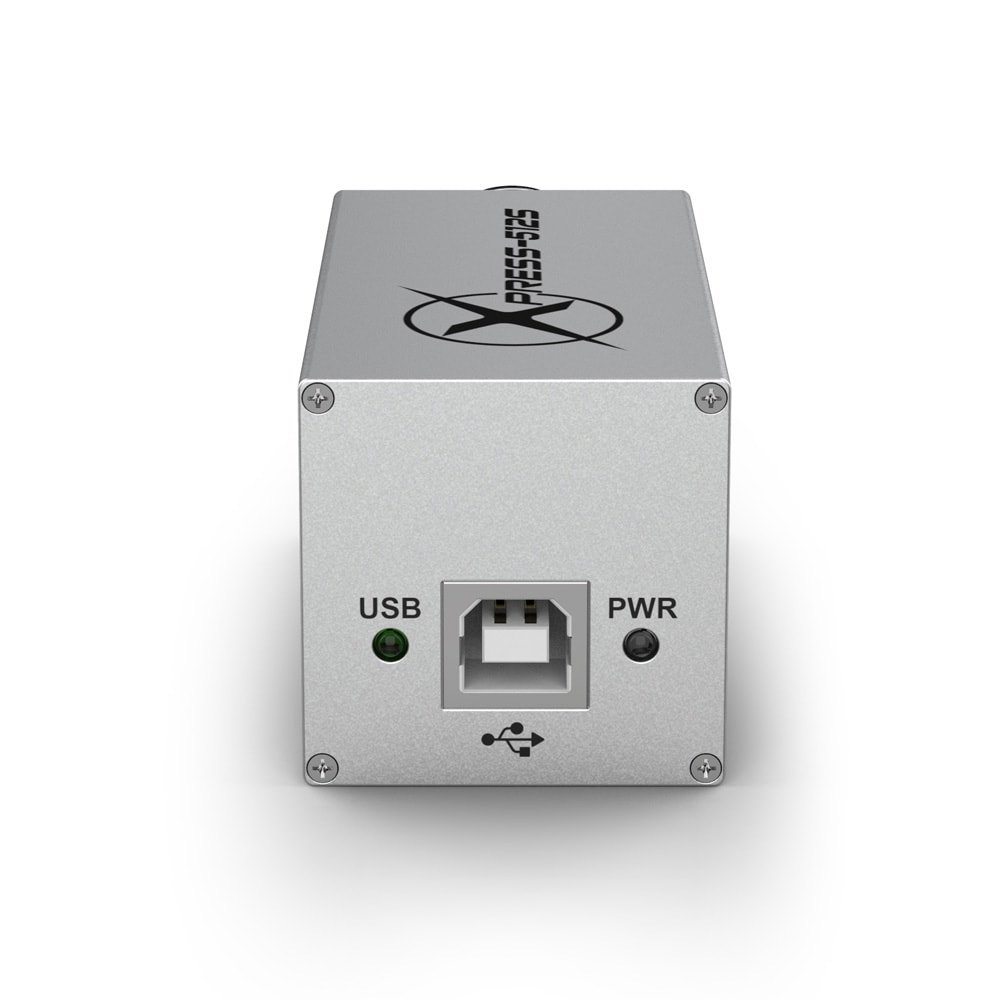

Chauvet DJ Xpress 512S DMX USB Interface with Software
The Chauvet DJ Xpress 512S is a powerful USB DMX interface that lets you control your lighting fixture with the ShowXpress lighting software. It is compatible with both Windows® and Mac OS X systems with a live control app. This means that you can use it with a smartphone device.
$569.00
Features:
Self-contained, aluminium DMX interface for ShowXpress™ software
Controls a full DMX universe and unlocks an additional ArtNet universe (2 universes total)
Easily store and playback 1 show without a computer
Compatible with Windows® and Mac OS X systems
Connect multiple interfaces to control additional universes
Hot-swappable and automatically re-connects within seconds
Specifications:
DMX Channels: 512 + 512 via ArtNet
DMX Connectors: 3-pin XLR
Input Voltage: 5 V USB
Weight: 0.1 kg
Dimensions: 74 x 35 x 35 mm
Compatible Software: Show Xpress
Approvals: CE
DMX Refresh Rate: 40 Hz
