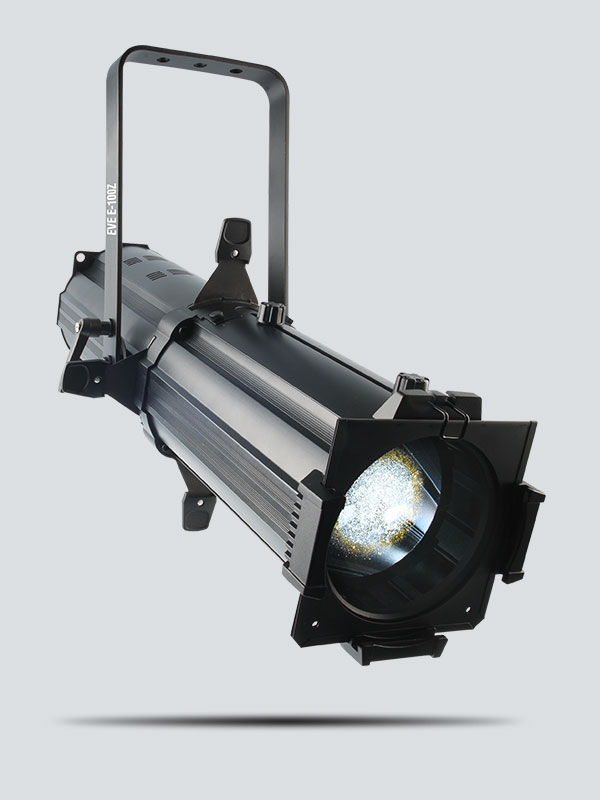

Chauvet DJ EVE E-100Z LED Ellipsoidal Framing Spot
Chauvet DJ’s EVE E-100Z is a powerful LED framing spot designed to highlight and illuminate particular areas of your stage, performance, or display. The fixture includes 4 ‘frames’ for shaping your beam, a range of gobos, and has a warm white colour.
$1,299.00
Features:
LED Ellipsoidal shines a hard-edged, warm white spot in any direction
Easily highlight areas by altering the projected beam with framing shutters
Flexibility to project from any distance using the manual zoom
Includes holders for glass and steel gobos and a gel frame
Save time running extension cords by power linking multiple units
Eliminate the need for DMX control with standalone operation
Specifications:
DMX Channels: 1 or 3
DMX Connectors: 3-pin XLR
Light Source: 1 LED (warm white) 100 W (2.3 A), 50,000 hours life expectancy
Strobe Rate: 0 to 30 Hz
Zoom Angle: (manual): 14° to 30°
Illuminance:
(14°): 15,100 lux @ 2 m
(30°): 3,800 lux @ 2 m
(14°): 3,238 lux @ 5 m
(30°): 829 lux @ 5 m
Power Linking: 9 units @ 120 V; 16 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
106 W, 0.9 A @ 120 V, 60 Hz
103 W, 0.5 A @ 230 V, 50 Hz
Gobo Size: M (66 mm outside, 48 mm image, 2 mm max thickness)
Weight: 12.6 lb (5.7 kg)
Size: 24 x 7.2 x 16.9 in (611 x 183 x 430 mm)
Approvals: CE, MET
CRI: 80
Color Temperature: 3,500 K
Accessory Holder/Gel Frame Size: 6.3 x 6.3 in (160 x 160 mm)/6.24 x 6.24 in (158.5 x 158.5 mm)
