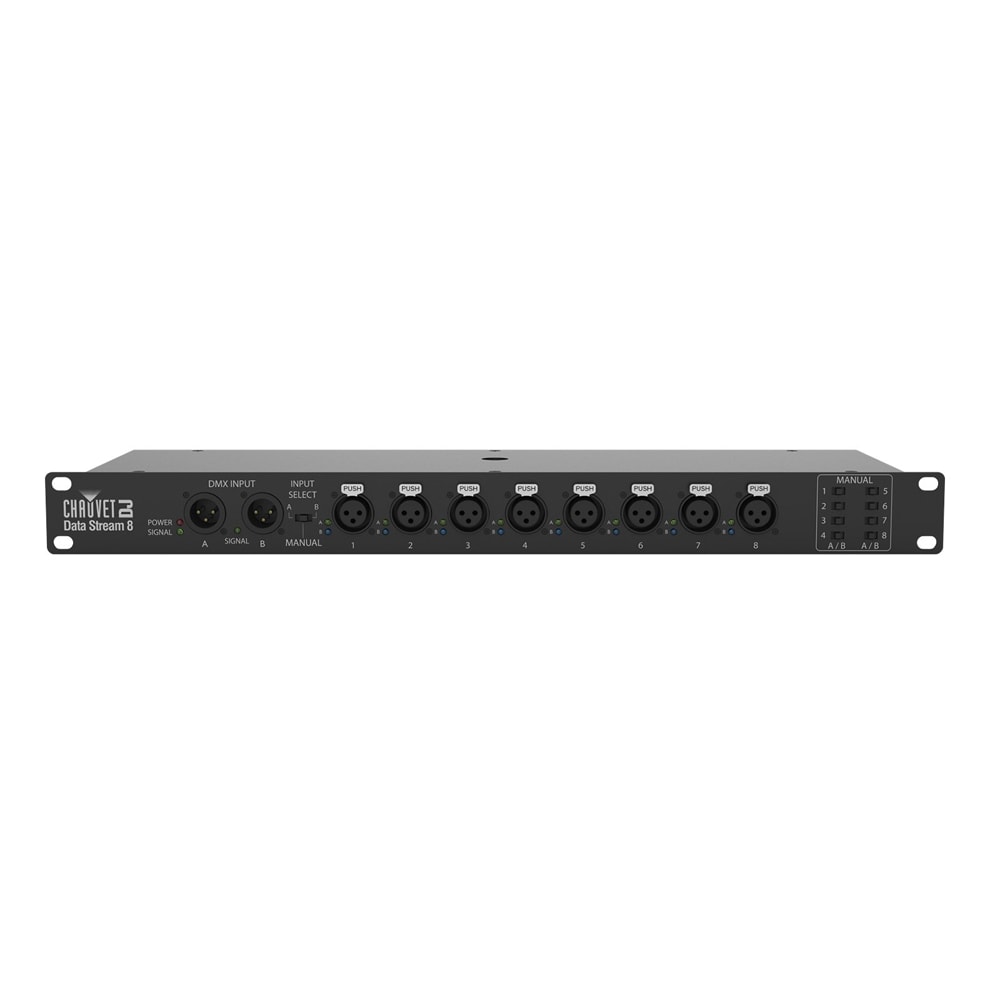

Chauvet DJ DataStream8 8-Channel DMX Splitter
Chauvet DJ DataStream8
The Chauvet DJ Data Stream 8 is a flexible DMX splitter designed to distribute and boost incoming DMX signals from dual inputs into 8 separate outputs via a master 3-position switch. Each input can be used simultaneously and sent to any output. Individual 2-position switches can also send data from either the A or B input separately. Each of the outputs is optically isolated from the others providing protection in the event of a short. A threaded insert allows the unit to be safely secured to trussing.
$649.00
Features:
Flexible DMX splitter provides up to 8 outputs from dual inputs.
Each input can be used simultaneously and sent to any output.
Master 3-position switch quickly sends A or B input to all 8 outputs.
Individual 2-position switches send data from either the A or B input.
Optically isolated outputs provide protection in the event of a short.
Threaded insert safely secures to overhead truss.
Specifications:
DMX Connectors: 3-pin XLR
Rackmount: 1U
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 2 W, 0.03 A @ 230 V, 50 Hz
Weight: 2.1 kg
Approvals: CE
