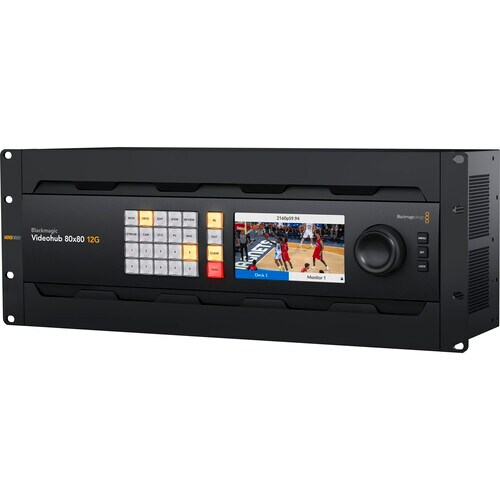

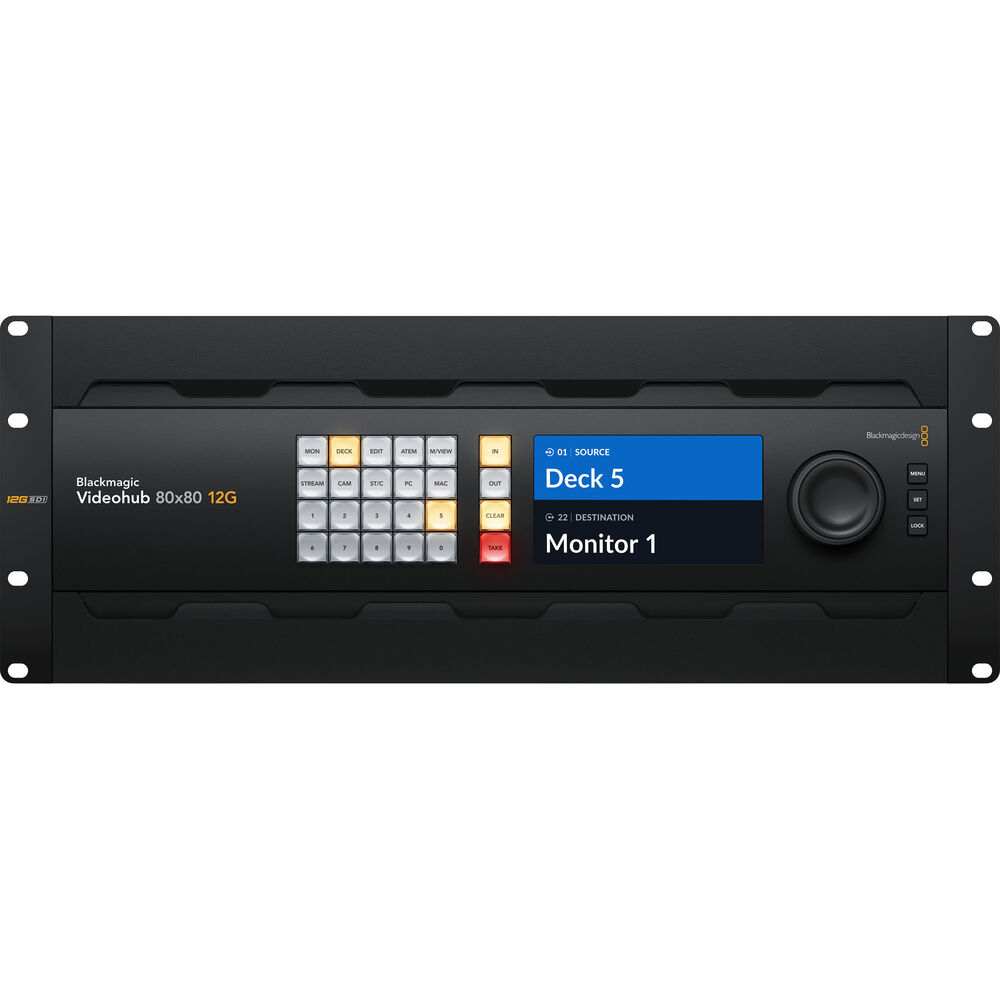

Blackmagic Design Videohub 80×80 12G Video Router with Zero-Latency
80 x 12G-SDI Inputs/80 x 12G-SDI Outputs
Zero-Latency Routing Switcher
Supports Up to DCI 4K60 Video
Combines SD, HD, UHD 4K & DCI 4K
4:2:2 & 4:4:4 Video Sampling Supported
Push-Button, Knob & Ethernet Control
32 Channels of Embedded Audio
SDI Reclocking
Includes Videohub Mac/Windows Software
$14,999.00

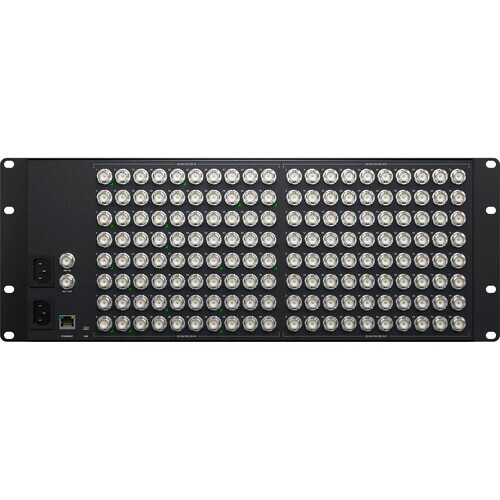

The Blackmagic Design Videohub 80×80 12G Video Router with Zero-Latency is an advanced zero latency video router that supports any combination of SD, HD and Ultra HD on the router at the same time. The 80 12G-SDI inputs feature LEDs on each BNC that indicate an SDI signal, plus there are 80 12G-SDI outputs, redundant power and reference connections in a stylish four-rack unit design. The large full HD LCD lets you see video before routing and clearly displays routing labels and video standards. Routing can be performed by direct button selection and using the large spin knob control that has an electronic clutch. It also features SDI re-clocking, and external Ethernet control and supports all SDI video standards up to 2160p60.
