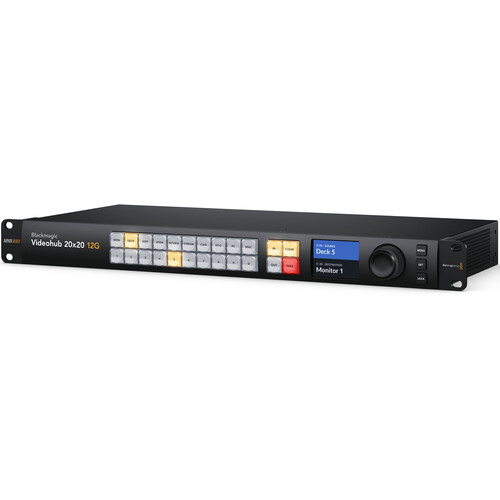

Blackmagic Design Videohub 20×20 12G Zero-Latency Video Router

Blackmagic Design
  • Zero-Latency Routing Switcher
  • 20 x 12G-SDI Inputs/20 x 12G-SDI Outputs
  • Supports Up to DCI 4K60 Video
  • Combines SD, HD, UHD 4K & DCI 4K Video
  • Push-Button, Knob & Ethernet Control
  • 2.2″ Front Panel LCD Status Display
  • SDI Reclocking, Compact 1 RU Size
  • Includes Videohub Mac/Windows Software

$3,577.00

Support a mix of multiple video formats using the Videohub 20×20 12G Zero-Latency Video Router from Blackmagic Design. This advanced router provides 20 12G-SDI inputs and 20 12G-SDI outputs for routing any combination of SD, HD, UHD 4K, and DCI 4K video. The Videohub 20×20 12G centralizes all your SDI cables in one hub, enabling you to connect any video input to any video output, or a single video input to multiple video outputs while eliminating clusters of cables and the need for complex diagrams. This versatile unit can be used with multiple HyperDeck recorders for redundant mastering, to route video to multiple streaming processors for all your broadcast platforms, or to add extra inputs to an ATEM switcher.

SKU: BLA-VHUBSMAS12G2020 Category: Brand:
Brand

Switching Type
Pushbutton, Software
Processing Resolution
DCI 4K at 60
Color Processing
8-Bit 4:2:2
10-Bit 4:2:2
12-Bit 4:4:4
Audio Processing
48 kHz / 24-Bit
Input
Video Inputs
20 x BNC (12G-SDI)
Input Video Format
SDI (10/12-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Input
SDI
Output
Video Outputs
20 x BNC (12G-SDI)
Output Video Format
SDI (10/12-Bit 4:4:4 RGB, YUV)
DCI 4K up to 30 fps
UHD 4K up to 30 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
SDI (10-Bit 4:2:2 RGB, YUV)
DCI 4K up to 60 fps
UHD 4K up to 60 fps
DCI 2K up to 60 fps
DCI 2KPsF up to 30 fps
1080p up to 60 fps
1080PsF up to 30 fps
1080i up to 60 fps
720p at 50/59.94/60 fps
576i / 625 lines at 50 fps
480i / 525 lines at 59.94 fps
Embedded Audio Output
SDI

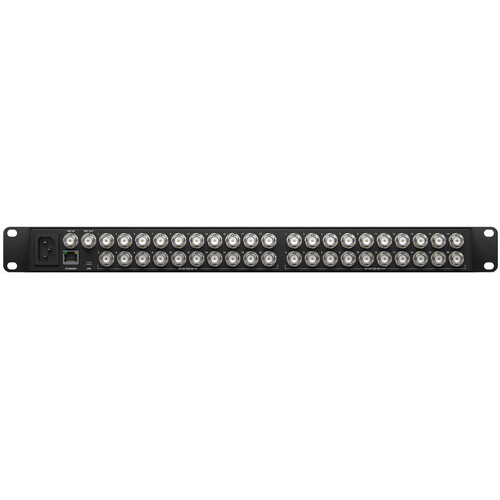

Connectivity
Other I/O
1 x RJ45 LAN
1 x USB-C
Video Standard Compliance
SMPTE 259M/292M/296M/372M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-10
ITU -R BT.601/BT.656
Display
Display Size
2.2″
Hardware
OS Compatibility
macOS 12.0
macOS 13.0 or Later
Windows 10 (64-Bit Only)
Windows 11
*As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Wi-Fi
No
Bluetooth
No
Power
Power I/O
1 x IEC C14 (100 to 240 VAC) Input
Power Consumption
27.5 W
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90% (Non-Condensing)
General
Rack Form Factor
1 RU
Dimensions
19 x 9.3 x 1.74″ / 48.3 x 23.6 x 4.42 cm
Weight
7.87 lb / 3.57 kg
Packaging Info
Package Weight
9.24 lb
Box Dimensions (LxWxH)
20.9 x 11.1 x 3.5″
