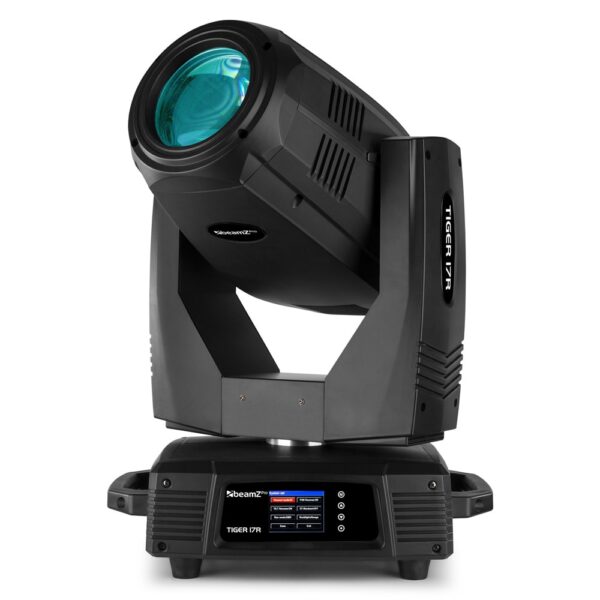

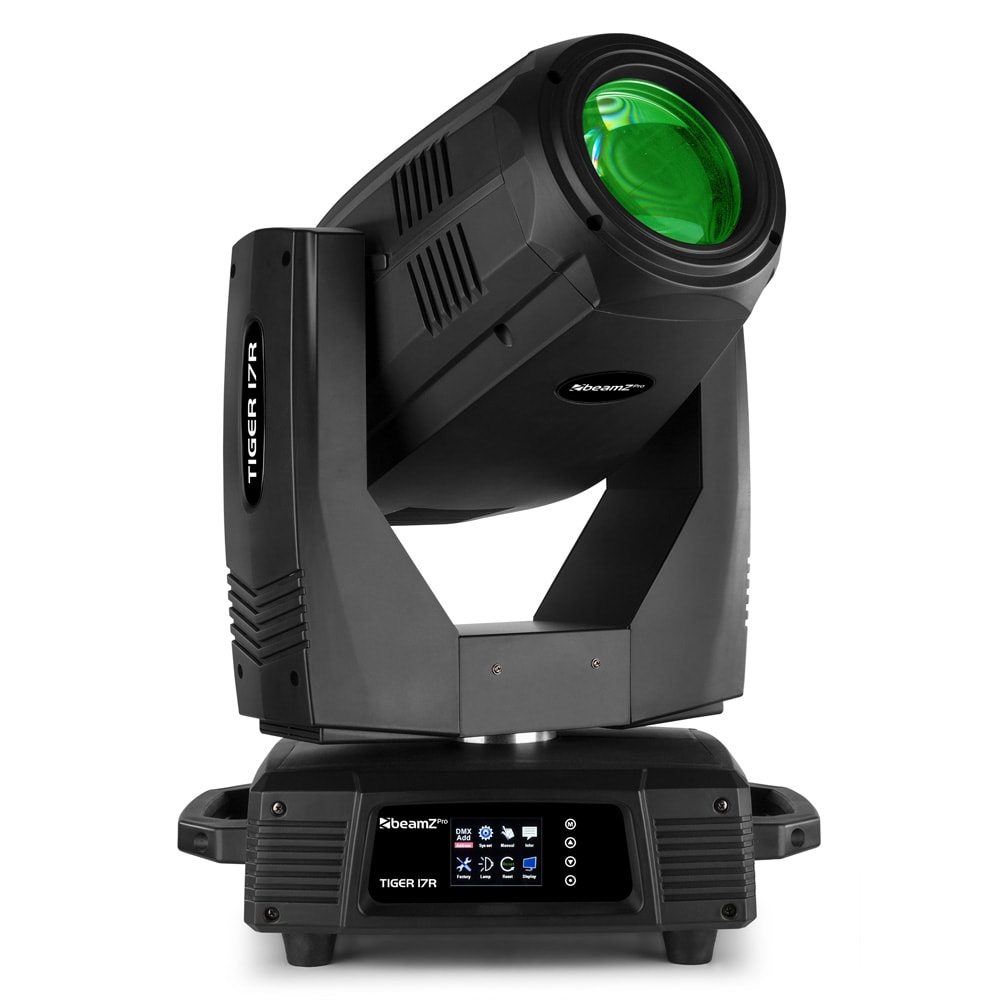

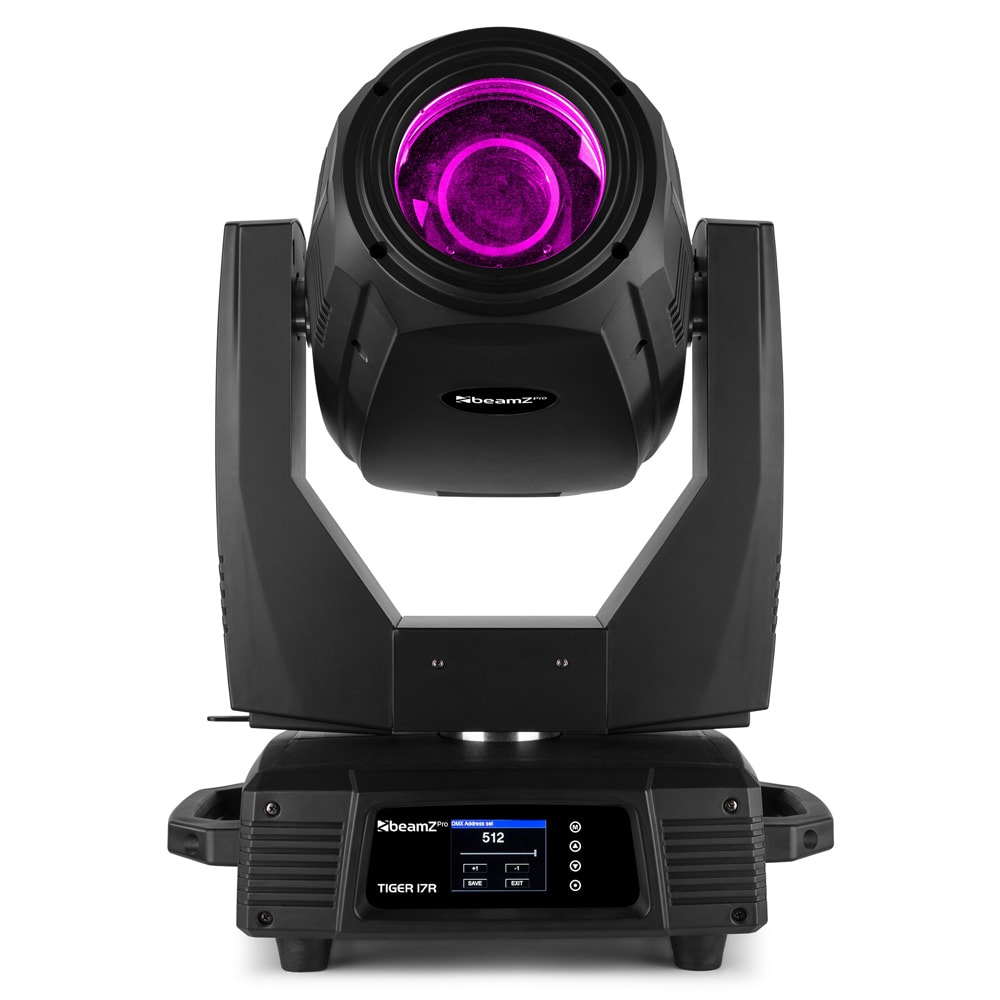

Beamz TIGER17R BSW 350W Moving Head 2 pcs in FC
The Beamz TIGER17R is a set of 2 professional 17R 2-in-1 moving heads with bright output due to the use of the 17R 350W high intensity discharge bulb. Equipped with a colour, frost, gobo and double prism effect wheel for ultimate control. The Tiger 17R moving head works both in DMX or stand-alone mode. When operating in DMX mode you have complete control with 16 or 20 DMX channels. Among its features are a mechanical shutter and adjustable speed strobe, frost filter, rotation prism, motorized focus and mechanical dimmer. Delivery in a customized flight case.
$4,699.00
Features:
2-in-1: Beam and Spot
350W 17R High-Intensity discharge bulb included
Gobo wheel: 14 static gobos + 9 rotating replaceable glass gobos
Colour Wheel: 13 Colours + open
Gobo shake effect
Frost effect filter
Prisms: rotatable 6 facet prism + rotatable 8 facet prism
Motorized focus
Mechanical shutter and adjustable speed strobe effect (1-13 x per sec)
Dimmer: 0 ? 100% linear dimmer
16 or 20 DMX Channels
DMX, Auto mode and Master/Slave function
Automatic pan/tilt correction
Pan: 540? and Tilt: 250? Movement
With pan/tilt lock mechanism
Pan/Tilt Resolution: 16bit
Control panel with LCD display
Battery function (mains power not required for fixture setup)

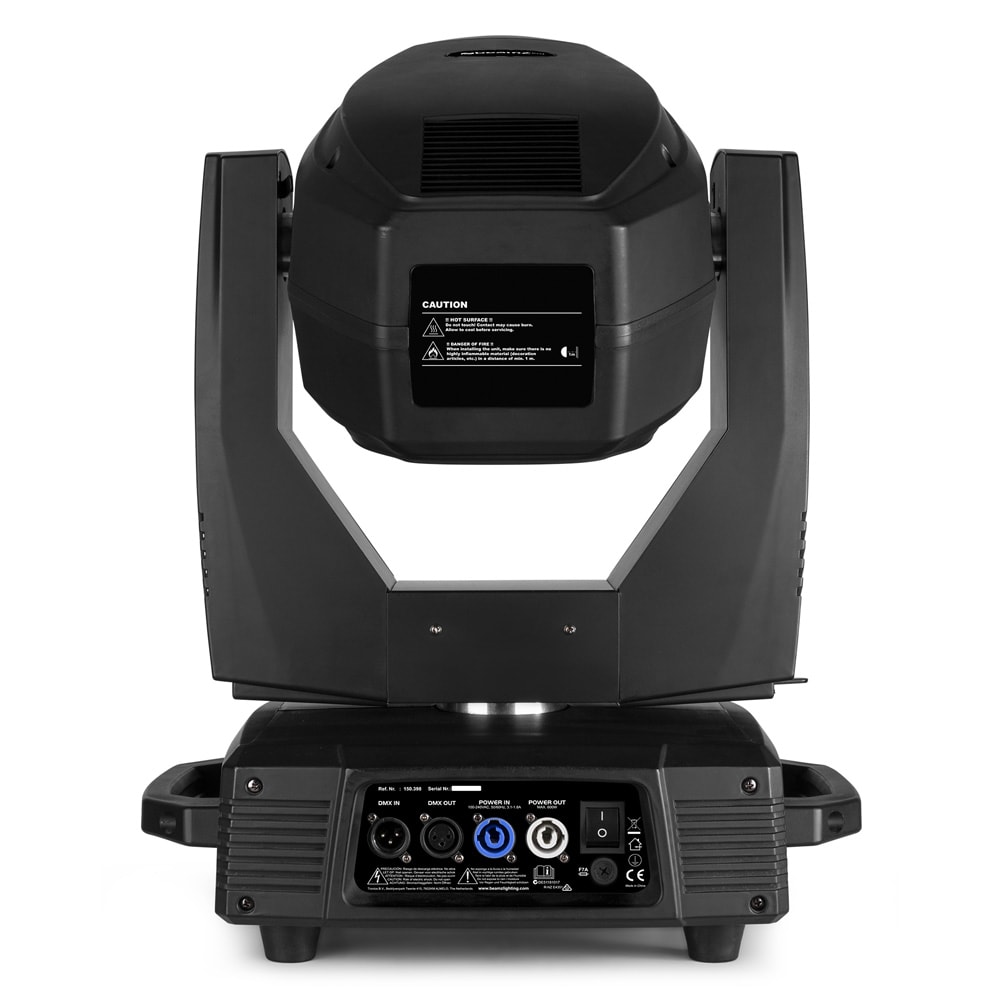

DMX in/output via 3-pin XLR
Powerconnector input/output

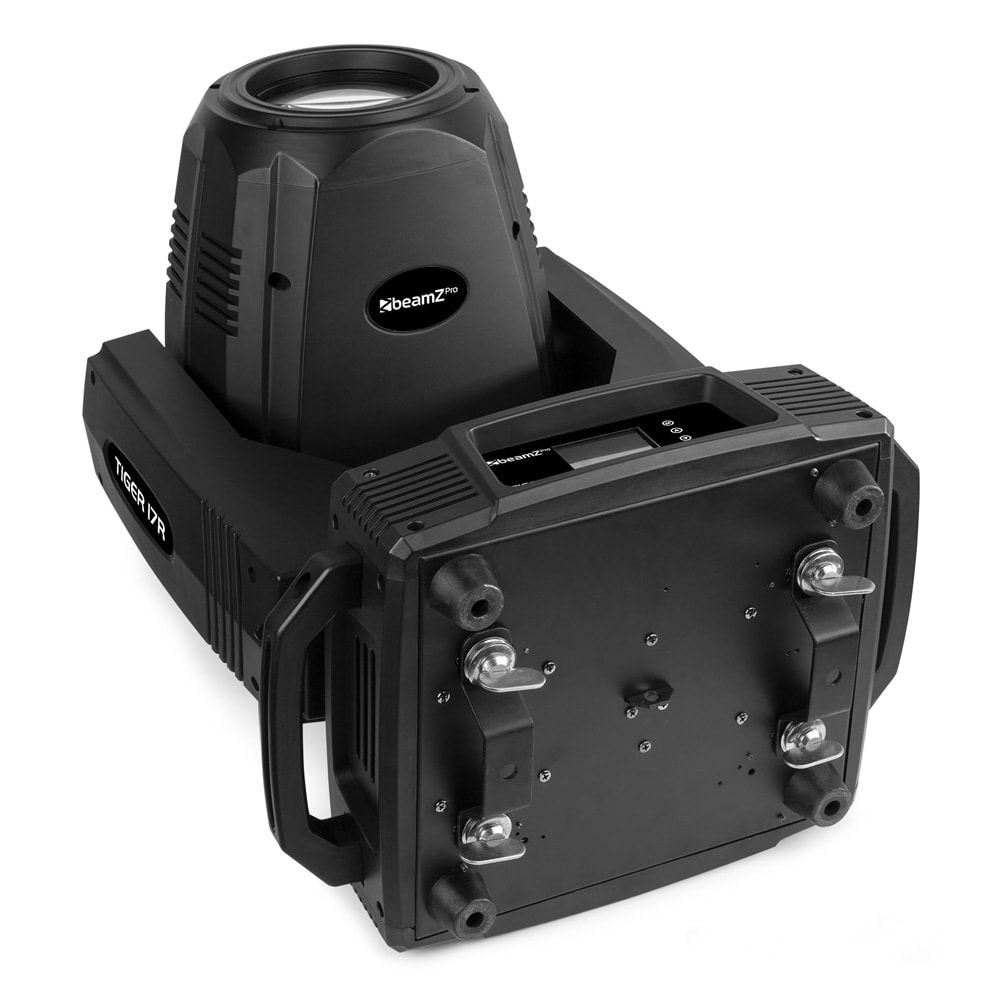

Quick lock omega clamp included (2x)
DMX cable included
Powerconnector cable included
Specifications:
Colour temperature: 8000K
Lightsource: MSD 17R 350W bulb
Colour wheel: 13 colours + open
Dispersion: Beam: 5?
Dispersion: Spot: 17?
Dispersion: Wash: 17? ? 43?
Zoom: Yes
Illuminance (lx): 145,000lx@10m
Head movement:Pan: 540
Head movement:Tilt: 270
Static gobo: Quantity: 14
Rotating gobos: Quantity: 9
Gobo Shake: Yes
Interchangeable Gobos: Yes
Gobo dimensions: 15.8mm
Prisma 1: 6 Facet
Prisma 2: 8 Facet
Frost filter: Yes
Flash rate per second: 1 ? 13Hz
Modes: Automatic programs, DMX, Manual, Master/Slave
Sound to Light mode: Yes
DMX Channels: 16, 20
DMX Connector: 3-pin XLR
Display: LCD
IP rating: IP20
Cooling: Temperature-controlled fan
Power Plug: Power-connector
Power consumption: 3.2 ? 1.8A
Power Supply: 100-240VAC 50/60Hz
Dimensions (L x W x H): 420 x 300 x 635mm
Weight (kg): 60
Weight:each (kg): 20.6
Accessories: DMX Cable, Mounting bracket, Power Cable
Related products
-
Moving beam and hybrid lighting
Chauvet DJ Intimidator Hybrid 140SR Moving Head
The Chauvet DJ Intimidator Hybrid 140SR is an all-new cutting-edge ‘all-in-one’ moving head fixture. Designed to morph from SPOT to BEAM to WASH effortlessly for almost any application. It is also fitted with a bright 140Watt Osram discharge light engine for cutting across any stage or dance floor with ease.
SKU: CDJ-INTIMHYBRID-140SR -
Moving beam and hybrid lighting
Event Lighting HAVOCH600F – 600W LED Moving Head Hybrid
Photometrics
- Light Source: 640w LED White
- Beam Angle: 4°-50°
- Output: 83,800 lux @ 5m at 4°
- Colour Temperature: 7,700K
- LED lifespan: 20,000 hours
Colour
- 8 Colours + Open
- Linear CMY+CTO
Gobos
- Fixed: 8 + Open
- Rotating: 7+ Open
Effects
- Dimming: 0~100%
- Strobe: Yes
- Focus: Motorised
- Prism: Rotating 4 facets
- Animation wheel
- Iris: Yes
- Frost: Yes
- Zoom: Yes (4° to 50°)
- 4 Individual Shutter Blades Rotating +/- 45°
Movement
- 16 bit resolution
- Auto repositioning
- Pan: 630° (4.4 sec) or 540° (3.9 sec)
- Tilt: 233° (2.3 sec)
Power
- Max power consumption: 590W
- Input Voltage: 100~240V AC, 50/60 Hz
- Connection: Neutrik® PowerCON in/out
Control
- Control Protocol: DMX512, RDM
- Optional Wireless
- DMX Channels: 28 / 30 / 37 / 38
- Interface: 5-pin XLR in/out, RJ45 in / out
- RDM function to change DMX address
- Display: 2.4″ colour LCD control panel
- Software Upgrade via DMX: Yes
Housing
- Materials: ABS & Steel, matte black finish
- Dimensions: 443 x 748 x 305mm
- Cooling: Multi sensor thermostat controlled variable speed fan
- IP rating: IP20
- Net Weight: 31kg
- Rigging: 2 x omega brackets with 1/4-turn quick locks
SKU: ELT-HAVOCH600F -
Moving beam and hybrid lighting
Beamz Fuze 75B 75W Beam LED Moving Head DMX IR
Beamz Fuze 75B
The Beamz Fuze 75B Moving Head is a lightweight, compact and ultra-fast moving fixture. Featuring a sharp and narrow beam, equipped with a powerful 75W LED. Including a frost filter that allows you to convert the beam from a tight to a wide wash.
The addition of a 2-degree beam angle makes this the ideal fixture for long-range gobo projection and sharp beam figures. Operated via DMX, auto mode, sound active mode, or master/slave mode. Giving you the freedom and simplicity you need to get your light show up and running.
It is the perfect fixture for lighting designers, DJs, bands, clubs, bars and installations where a small footprint and lightweight fixture is ideal.SKU: BMZ-FUZE75B -
Moving beam and hybrid lighting

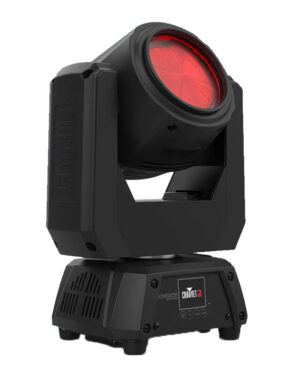

Chauvet DJ Intimidator Beam Q60 Moving Head
