Avenger C4462-1 Clamp Eye Coupler 16mm Spigot 300kg Payload 42-52mm Wide TUV SUD Certified

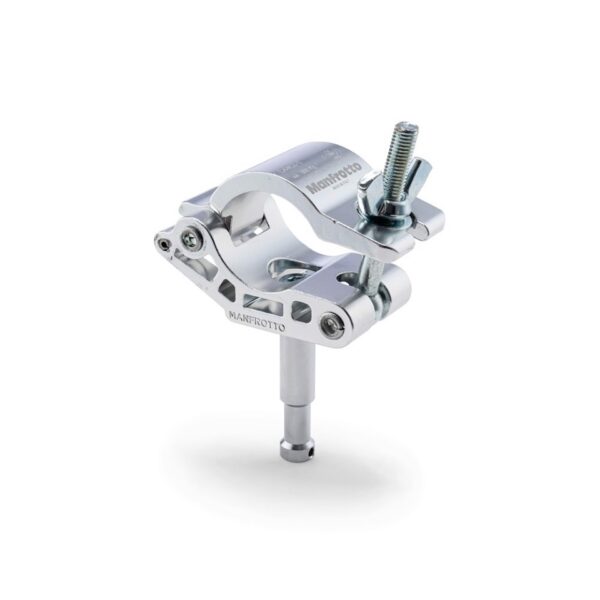

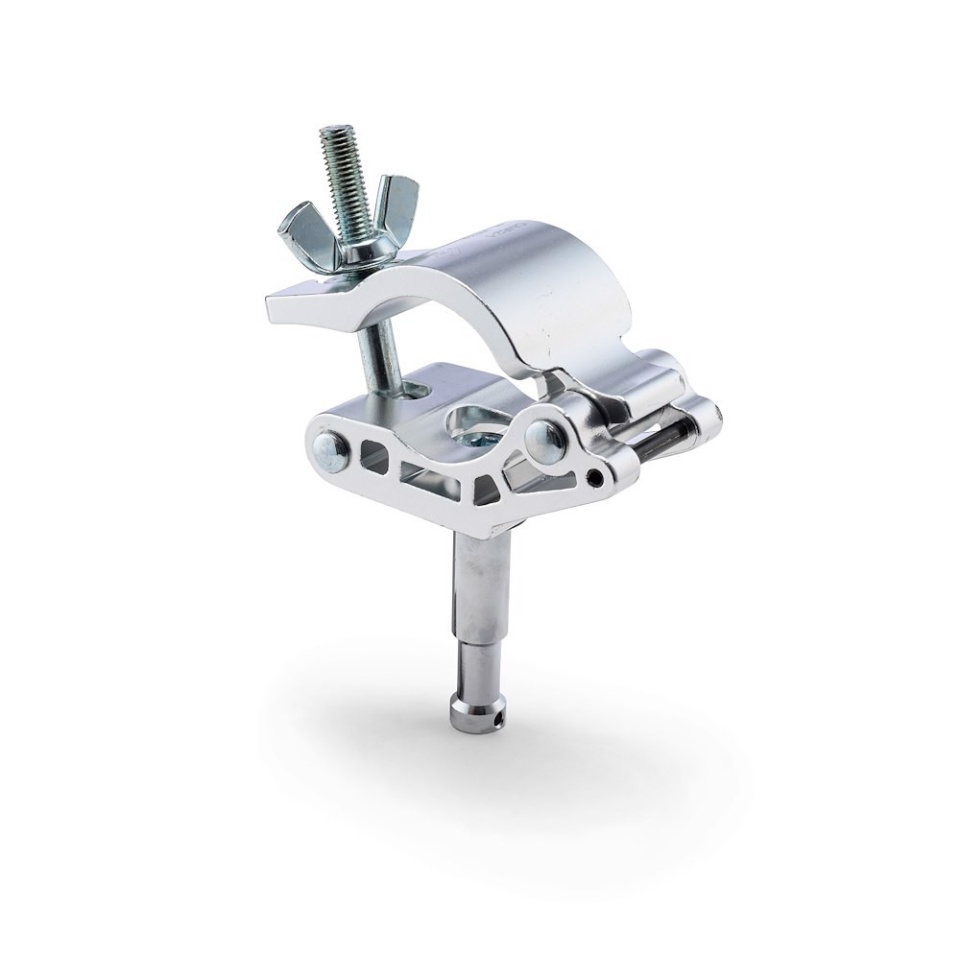

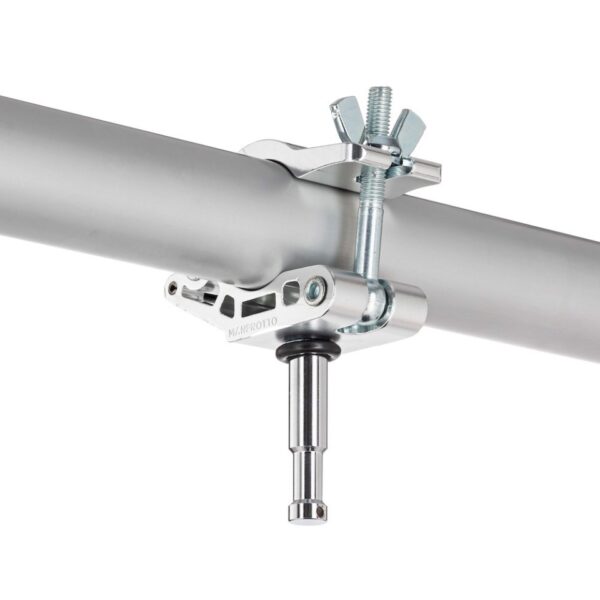

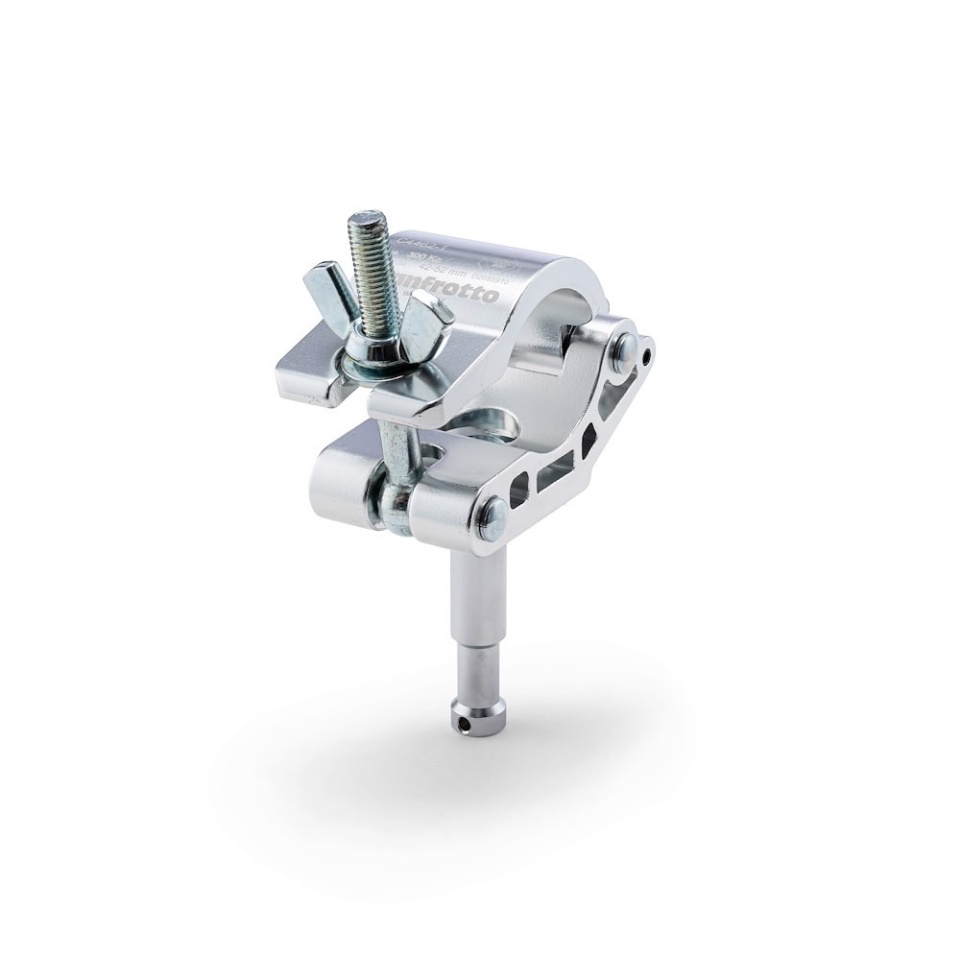

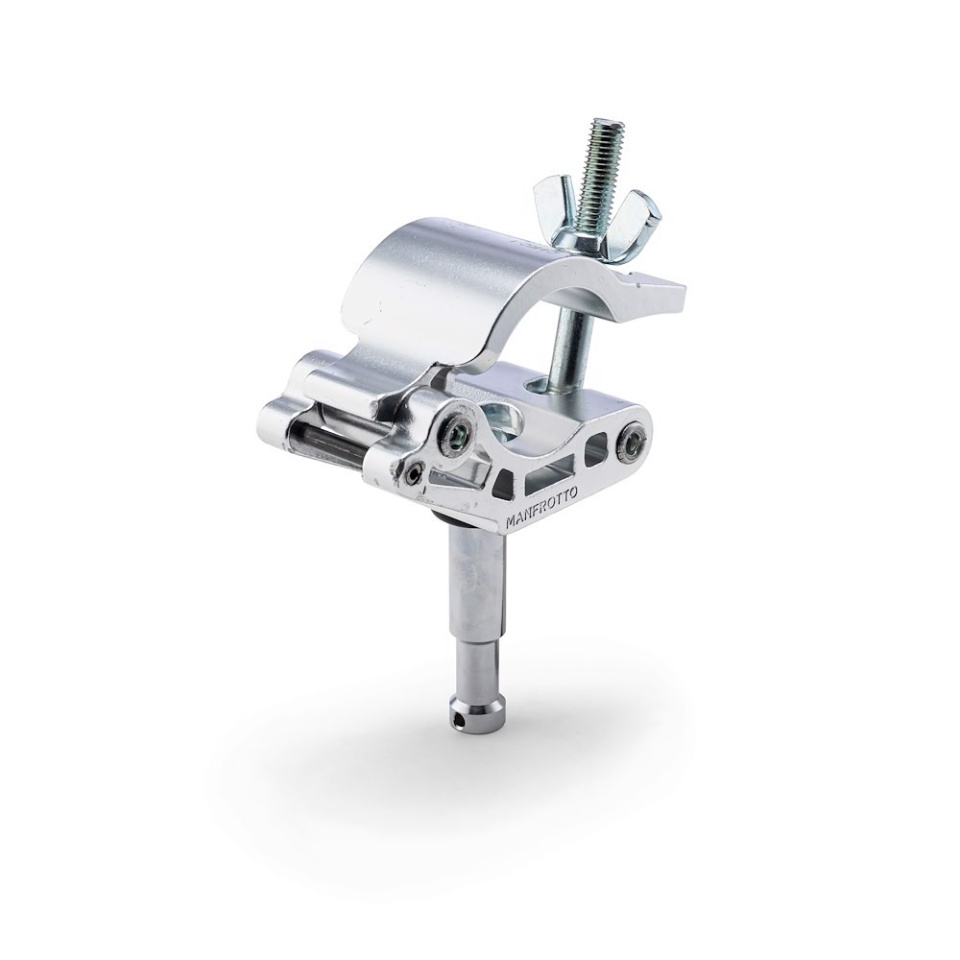

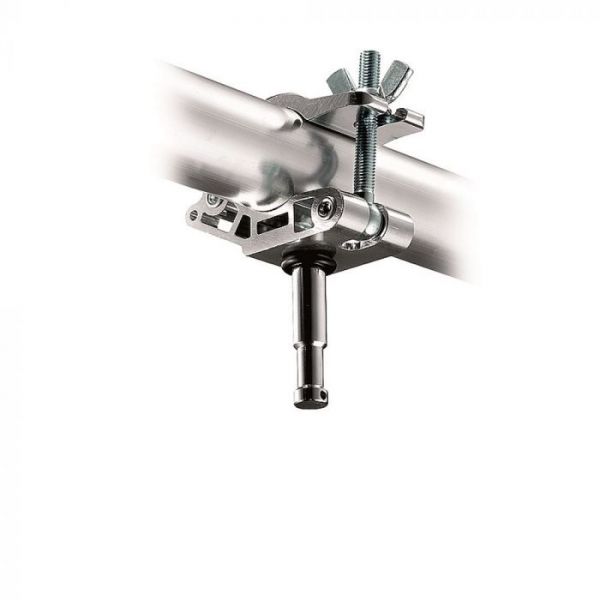

The Avenger C4462-1 MP Eye Coupler grid clamp comes supplied with a 16 mm(5/8”) baby male spigot. Commonly referred to as a Little Ben Clamp this popular clamp is ideal for many rigging systems, truss and entertainment configurations. This popular MP cheeseboro clamp has a wider clamp range than the LP clamp and is ideal for many rigging systems, truss and entertainment configurations. The lower jaw has a special flattened shape which helps in the sizing of this clamp and the increased flexibility to clamp down on different types of tubing. Capable of holding up to 300 kg loads this clamp will perform in many demanding environments. The MP Eye Coupler uses a wing nut with washer locking design and is able to clamp down on round tubes, truss or grids ranging from 42 mm(1.65”) to 52 mm(2.04”) and is 50 mm(1.96”) wide. TÜV and SÜD certified. Recommended Accessories: C155, C155-01, E390, C460-1, C463-1, C4460-1, C464-1, E200, C4465-1.
$97.00
Related products
-
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C345K-1 Clamp Barrel T-Knob TUV Silver 40-300Kg Payload 16/28mm M Gravity Casting w Safety Cable
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C345K-1 Clamp Barrel T-Knob TUV Silver 40-300Kg Payload 16/28mm M Gravity Casting w Safety Cable
The Avenger C345K-1 Barrel Clamp in silver is made with gravity cast aluminum, has a built in 28 mm/ 1 1/8 inch junior receiver, a 16 mm/ 5/8 inch baby pin with a 1/4” threaded top and a 16 mm/5/8 inch receiver. This barrel clamp is capable of mounting pipes or tubes ranging from 42 – 52 mm/1.65 – 2.05 inch and easily locks into place using a T-Knob. The baby attachment can support loads up to 40 kg while the junior receiver can take capacities up to 300 kg/661.4 lb. The C345K-1 includes a safety cable with locking pin to secure attachments that are mounted in the junior receiver. TÜV SÜD certified. Recommended Accessories: C155, C155-01, C155-02 E200, FF3276, A2029, C590, C626.
SKU: AVN-C345K-1 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C337 Clamp Quick Action Jr TUV Cer 40mm to 70mm Range 100Kg Payload Gravity Cast Alu
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C337 Clamp Quick Action Jr TUV Cer 40mm to 70mm Range 100Kg Payload Gravity Cast Alu
The Avenger C337 Quick Action Junior Clamp with 28 mm/1 1/8 inch receiver is the perfect partner for hanging lights with a 28 mm/1 1/8 inch Junior spigot or pins. Designed with a unique fast quick action mechanism which locks down the clamp quickly, followed by minor adjustments using the rubber covered T-Handle this clamp easily can hold lights up to 100 kg/220 lb. Made in gravity cast aluminum, this clamp is ideal to hang all types of lights and luminaires in TV studios and theatres. Its incredible coupling range means it can clamp onto most industry standard pipe diameters (Pipes ranging from 40-70mm/1.57 to 2.75 inch). To meet all safety requirements, the Avenger C337 has been designed with a dedicated slot for flexible steel safety cables, has a built in safety pin to secure the load or adapters mounted into this clamp. T-Top rubber T-Handle cover included to improve grip. TÜV SÜD certified. Recommended Accessories: E200, C155, FF3276, D400, C626, A2014, A2029, A2029CB, C590, C4461-1.
SKU: AVN-C337 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C150 C-Clamp Swivelling TUV Cert 28-78mm Range 10Kg on 16mm. 75Kg on 28mm
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C150 C-Clamp Swivelling TUV Cert 28-78mm Range 10Kg on 16mm. 75Kg on 28mm
The Avenger C150 Swiveling ”C” Clamp is an extremely robust Gravity Cast clamp that is designed to clamp on to truss, pipe grids or round tubes. It is rated to hold from 10-75 kg/22 lbs-165.3 lbs. (Up to 10KG on the 16 mm/ 5/8 inch retractable spigot and up to 75KG on the Junior 28 mm/1 1/8 inch receiver.) The clamping range on this clamp is 28-78 mm/1.1-3.1 inches. The added swiveling feature allows for easy aiming of any light. The clamp includes a safety cable with pin for the junior pin and an additional thumb screw to securely lock the pin when needed. TÜV SÜD certified. Recommended Accessories: C155, E200, E390, 158, E390, 014-14, 014-38, D200, C888UH, C500, C150.
SKU: AVN-C150
