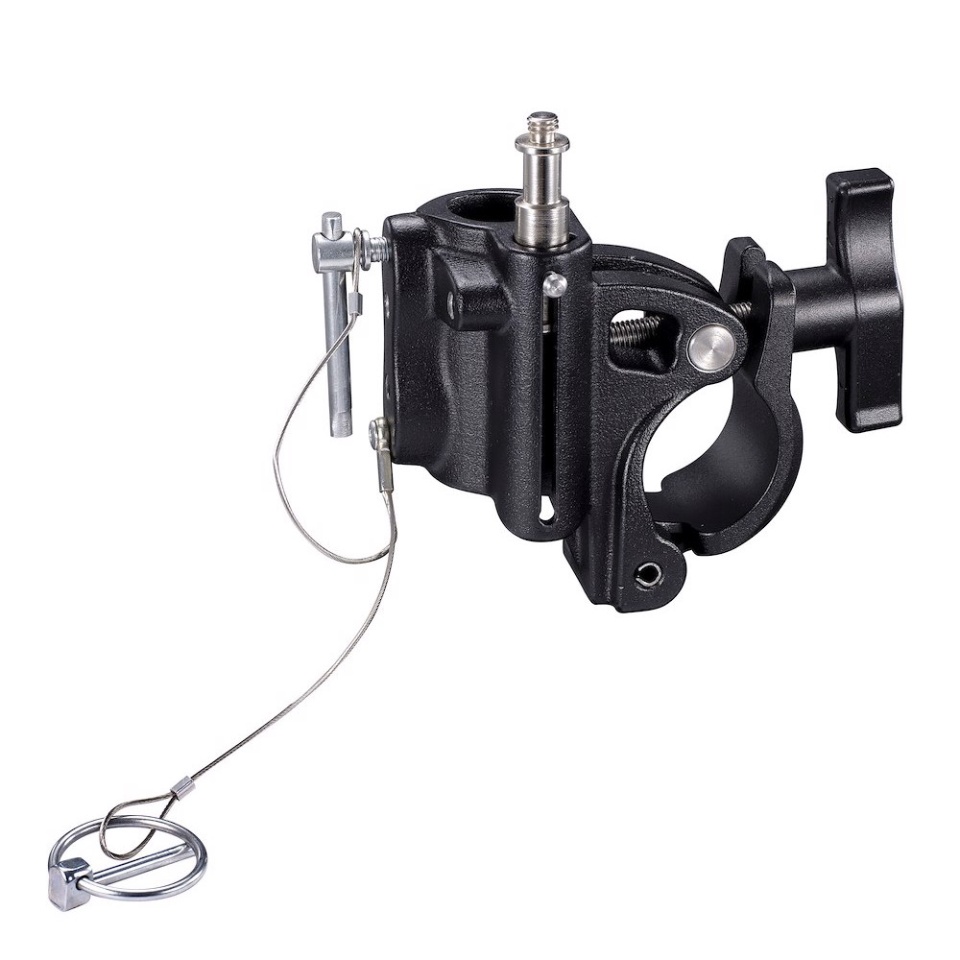

Avenger C345BK-1 Clamp Barrel T-Knob TUV Black 40-300Kg Payload 16/28mm M Gravity Casting w Safety Cable
This aluminum gravity casting black Barrel Clamp works on diameters from 42mm to 52mm. It holds a payload of 40kg on a 16mm attachment and 600kg on a 28mm attachment. The clamp is TUV SUD certified for maximum security for the user. It features 3 attachments: 5/8” (16 mm) bushing, 1” 1/8 (28 mm) bushing, and a 5/8” (16 mm) spigot. This clamp is extremely strong, featuring a knob locking mechanism for easy operation, and it includes a safety cable.
The C345BK supplied is black in colour
$176.00
