Atomos Shogun Connect 7″ Monitor & Recorder
- Our most powerful device for monitoring and recording
- Compatible with a wide range of digital cinema, mirrorless, and DSLR cameras
- Professional video connectivity including 12G-SDI, HDMI 2.0
- Monitor up to 8K HDR sources and use AtomOS tools to perfect every shot
- Record in a range of professional formats including Apple ProRes RAW, Apple ProRes, Avid DNxHD/HR, or HEVC (H.265)
- Includes full support for Atomos Cloud Studio
$1,980.00
Shogun CONNECT combines portable monitoring and professional RAW recording, with support for integrated and cloud-based workflows.
Shogun CONNECT builds on the pedigree of the ground-breaking Shogun product line. Every detail has been redesigned from the ground up to make Shogun CONNECT the most powerful and versatile device Atomos has ever created.
Key Features
- Our most powerful device for monitoring and recording
- Compatible with a wide range of digital cinema, mirrorless, and DSLR cameras
- Professional video connectivity including 12G-SDI, HDMI 2.0
- Monitor up to 8K HDR sources and use AtomOS tools to perfect every shot
- Record in a range of professional formats including Apple ProRes RAW, Apple ProRes, Avid DNxHD/HR, or HEVC (H.265)
- Includes full support for Atomos Cloud Studio

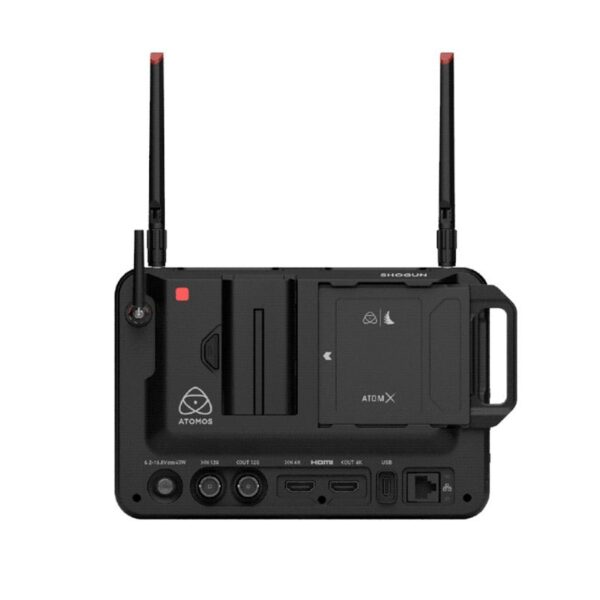

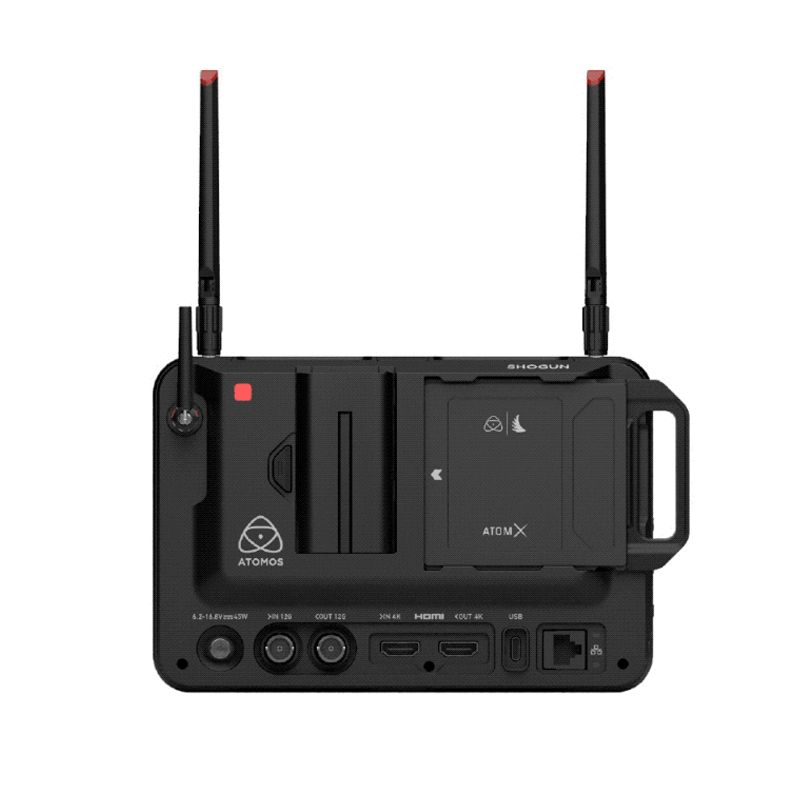

Featuring a super bright 7-inch 2000nit screen and multiple recording options, Shogun CONNECT provides a premium experience for HDR monitoring and RAW recording. In addition, it includes loop-through and cross-conversion functionality via its 12G SDI-IN and OUT interface. Shogun CONNECT supports SDI RAW inputs up to 6K at 30fps. It can simultaneously loop out standard YCC video via SDI and HDMI to multiple non-RAW compatible devices.
As you would expect from an Atomos device, Shogun CONNECT combines high-quality monitoring and many different industry-standard recording formats. It also transforms digital cinema, mirrorless, and DSLR cameras into devices that support a range of advanced cloud-based workflows.
Redesigned Touchscreen

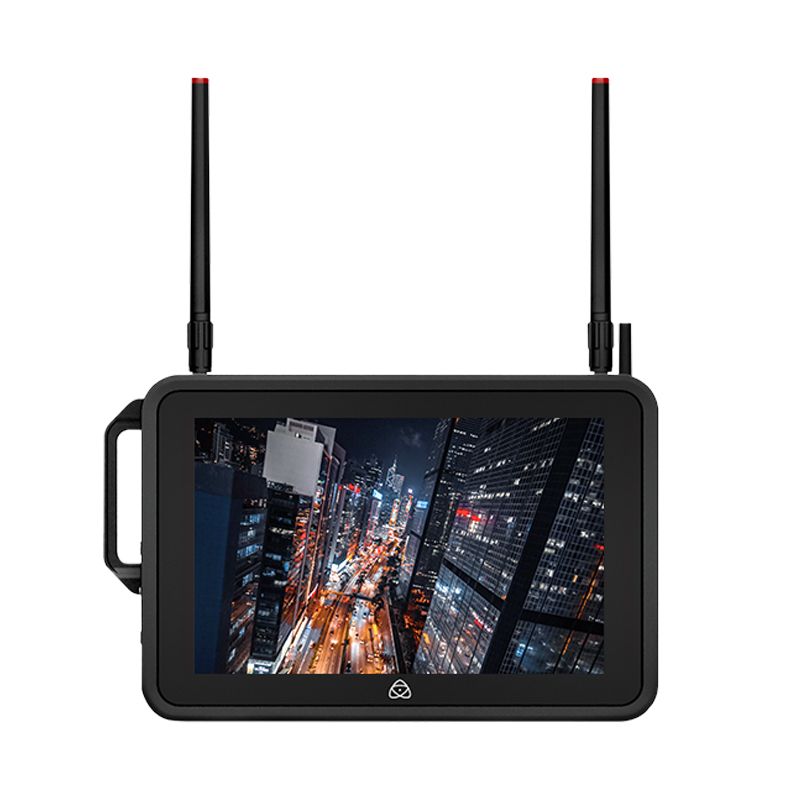

The new 7-inch, daylight-viewable, highly-responsive SuperAtom IPS touchscreen is perfect for outdoor use, even in direct sunlight. All the controls are there to perform the adjustments necessary to allow Shogun CONNECT to function equally well in darker environments.
Compact and Versatile
From individuals to large-scale cinema productions, Shogun CONNECT has been built to fit into any camera rig. It features a versatile mount that can be adapted to suit different industry-standard equipment from a wide range of manufacturers. Once locked in place the mount is highly secure and offers anti-rotation settings, so you can trust Shogun CONNECT to remain in place at all times.
A Complete Monitoring Toolbox
Shogun CONNECT offers a comprehensive range of monitoring tools including a waveform, focus peaking, false color, and frame guides to help you get the composition and exposure exactly right. The AtomOS software is so easy to use and the control it provides over your images for exposure, framing or focus.
| Resolution | Frame Rate |
| 4K DCI | up to 4Kp60 |
| 4K UHD | up to 4Kp60 |
| 2K DCI 2046 x 1080 | up to 2Kp60 |
| FHD 1920 x 1080 Progressive | up to 1080p120 |
| FHD 1920 x 1080 PsF | only via pulldown to progressive |
| FHD 1920 x 1080 Interlaced | 1080i50 / 1080i60 |
| 1280 x 720p | 60p |
| 8K RAW | up to 8Kp30 Via HDMI |
| 6K RAW | up to 6Kp60 Via HDMI & 6Kp30 SDI |
| 4K RAW | up to 4Kp120 via HDMI / SDI |
| 3.5K Anamorphic RAW | up to 3.5Kp60 via HDMI |
| 2K RAW | up to 2Kp240 via SDI |
