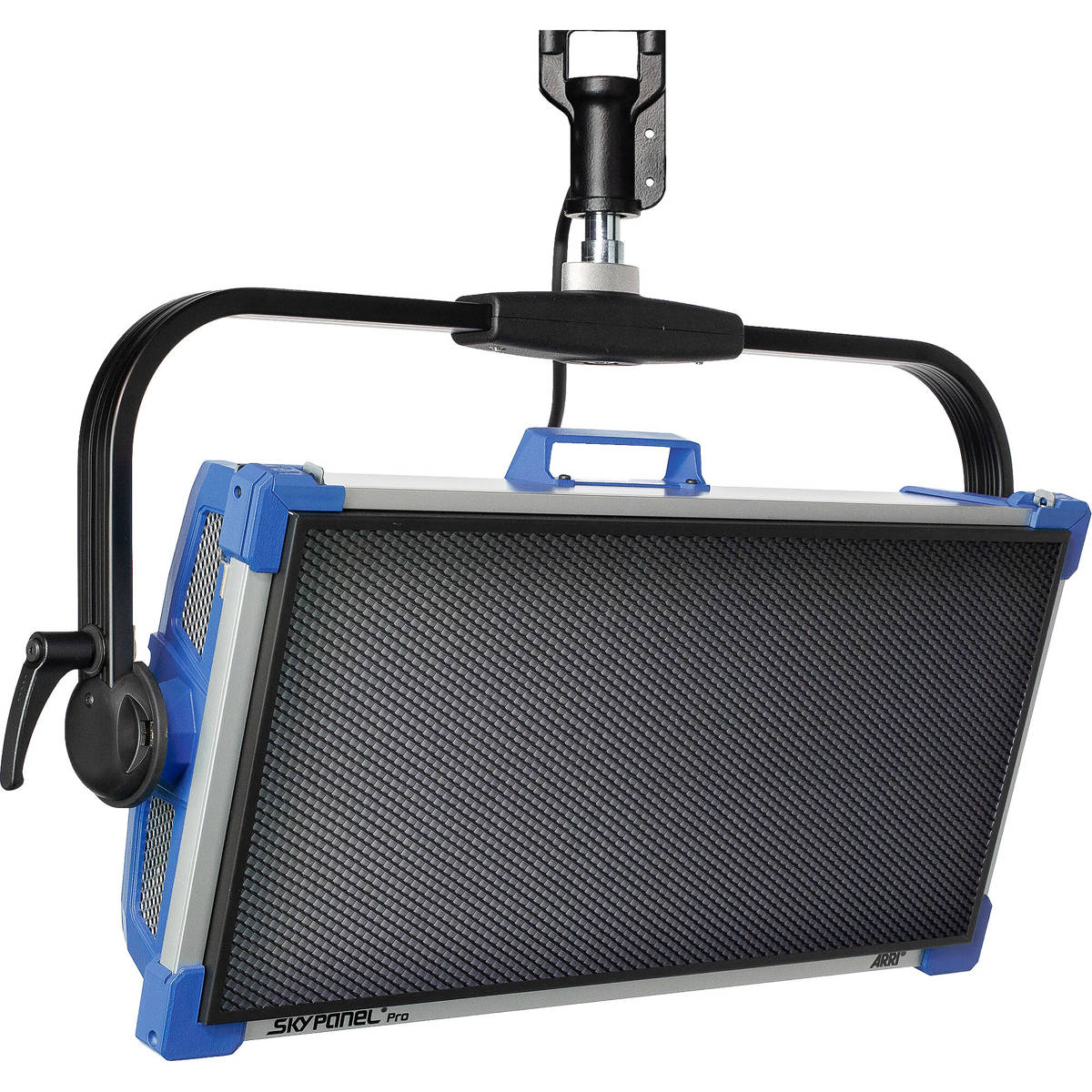

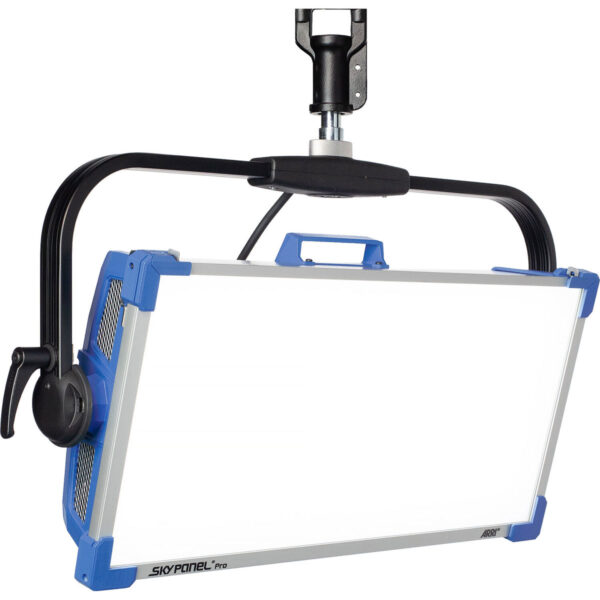

Arri SkyPanel S60 Pro Blue/Silver incl. Diffusion
- Native soft light
- Integrated power supply
- Size and weight comparable to S60-C
- SkyPanel S60-C front and mounting accessories compatible
- Digital twin
- Built-in wireless with Lumenradio CRMX and Bluetooth
- Remote maintenance via Claypaky’s Cloud IO
- Expanded wired connectivity options
- LiOS software with SkyPanel Classic on-board user interface
- Improved low-end dimming performance
- 4 individually controllable pixel zones
- RGBW LED light engine
- CCT range between 2,800 K – 10,000 K
$7,315.00
Upgrade your workflow: faster, smarter, more efficient
Introducing SkyPanel S60 Pro-building on the legacy of the iconic SkyPanel S60-C, the S60 Pro delivers smarter, faster solutions with cutting-edge technology for enhanced efficiency. The ARRI S60 Pro is designed to meet the demands of modern productions, offering everything you loved about the S60-C, but better-with no learning curve required.
Leverage Synergies
Seamlessly integrate SkyPanel S60 Pro into your existing workflows. ARRI assures color consistency from fixture to fixture and from one SkyPanel generation to the next. We even offer full compatibility with S60-C front and mounting accessories.
Improved Workflows
Elevate your productions with enhanced dimming, light output, built-in wireless and PSU, new software features, and more connectivity options.
Seamless Digitalization
Embrace the future with our digital twin, offering you unparalleled customization and control throughout the entire virtual production chain.
Easy Serviceability
Our remote service tool CloudIO ensures your SkyPanel Pro remains reliable and up to date with effortless maintenance.
Lighting quality and control
• Native soft light for natural skin tones
• 20% more output than its predecessor
• Size and weight comparable to S60-C
• Enhanced low-dimming performance
• RGBW LED light engine
• CCT range between 2,800 – 10,000K
• Four LED zones for better pixel control
• Re-use of SkyPanel S60-C front and mounting accessories
Improved workflows
• Integrated power supply
• Digital twin for real-time simulation and control
• Integrated wireless connectivity with LumenRadio’s CRMX and Bluetooth
• Remote service and maintenance tool CloudIO from Claypaky
• Hardwired Ethernet/LAN in and out continue to pass data while powered off
• Based on LiOS software with on-board user interface from SkyPanel Classic

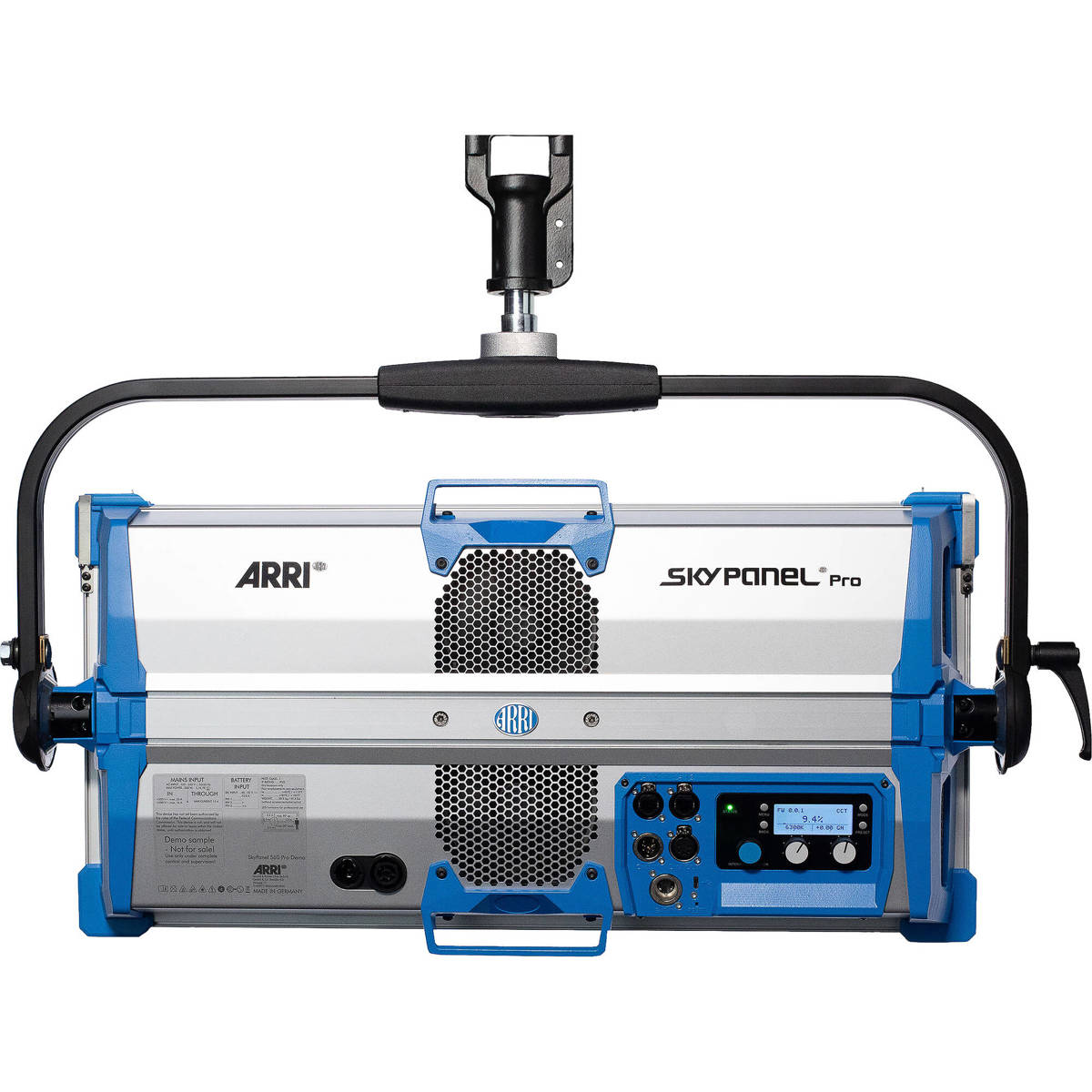

• Wide range of interfaces (AC In/thru, 48V Battery input, DMX/RDM In/Out, 2 Ethernet ports, USB-C)
How to control your SkyPanel S60 Pro
Advanced lighting control-expanded interfaces and connectivity options
SkyPanel Pro introduces versatile control options with interfaces including AC in/thru, 48V battery input, DMX/RDM in/out, two Ethernet ports, USB-C, integrated wireless CRMX from LumenRadio, plus Bluetooth app control. Controlling your SkyPanel Pro is easier than ever via lighting console, web portal, smartphone, or tablet.
Wireless control options
CRMX
S60 Pro offers CRMX integrated wireless control via the LumenRadio TiMo2 chip. This chip is compatible with both CRMX2 and Classic CRMX.
Bluetooth
Control your SkyPanel Pro with the ARRI LiCo app or any Bluetooth or CRMX-compatible lighting app. Manage wireless DMX, RDM for SkyPanel Pro, and operational modes via the app’s intuitive interface and easily adjust color, dimming, and effects on both iOS and Android devices.
Wired control options
SkyPanel Pro offers an expanded range of interfaces compared to its predecessor:
• DMX-512A/RDM in and thru
• Hardwired LAN, sACN, Art-Net in and thru. Data pass-through without power
• USB-C
• 48V DC Input
Onboard control options
SkyPanel Pro retains the fast and familiar onboard control panel of the SkyPanel Classic, but with an upgrade: it’s now positioned at the bottom of the fixture for easier access when mounted on a stand. This design makes it the perfect choice for various applications (internal link), from compact setups to large studio installations.
Web Portal
The Web Portal offers a convenient way to adjust your SkyPanel S60 Pro via Ethernet or Wi-Fi, featuring intuitive navigation and comprehensive control interfaces. Use the portal to manage all fixture settings via any web browser, including the close monitoring of DMX functions for your SkyPanel Pro.
Console control
Ideal for both small and large sets- the S60 Pro keeps your set running smoothly with intuitive and familiar DMX profiles from SkyPanel Classic.
Software
The S60 Pro software, based on ARRI’s LiOS platform, is adapted from the familiar user interface of SkyPanel Classic:
• ARRI ALEXA Modes
• Classic SkyPanel DMX Modes
• LumenRadio CRMX
• Bluetooth 5.0 connectivity
• Color modes incl. CCT, HSI, direct LED control, X/Y, gel, source matching
• Lighting effects across four pixel zones
