Aputure Amaran PT2c 8 Pixel RGBWW 600mm Tube
The amaran PT2c is a 2-foot battery-powered pixel tube that is part of amaran’s first-ever full-color LED pixel tube series. The Pixel Tube series is comprised of a family of 1-foot, 2-foot, and 4-foot lengths – all featuring multiple Pixel FX, RGBWW color quality, Sidus Link app & DMX *1 control, and USB-C rechargeable batteries packed into their sleek & slender form factor. At 2 feet in length, the amaran PT2c is an intuitive, mid-sized multitool and versatile tube light that expands creativity and opens a world of colorful possibilities.
For greater control and color chasing capabilities, the PT2c features 8 built-in pixels that can be independently adjusted via the Sidus Link app and 7 pre-programmed Pixel FX for a variety of scenarios, in addition to 9 System FX.
As a full-color fixture, the PT2c’s RGBWW LED chipset produces stellar color quality and accurate skin tones throughout its CCT range of 2,700K to 10,000K with full green-magenta control, achieving high CRI [95], TLCI [98], and SSI values across the board, with an SSI (Tungsten) of 85 and SSI (D56) of 75.
Inside its sleek T12 form factor, the PT2c is powered by a 38.5Wh internal lithium-ion battery for up to 170 minutes of maximum output. By utilizing a ubiquitous USB-C port, the PT2c can be easily charged, and can even fast charge at 20W using USB-C PD to reach full capacity in under 3 hours.
$369.00
Complementing its simple design, each PT2c comes with two clear, 3/8- 16in threaded magnetic T12 brackets to make mounting as easy as possible. Use the magnets to attach the pixel tube to ferromagnetic surfaces or add a 3/8-16in spigot or baby pin to mount it to a light stand. The clear design of the brackets ensure that the mounting solutions do not interfere with the quality or output of the light.
For additional mounting options, each endcap houses a 3/8-16in threaded mount. The possibilities are endless, with the ability to use splicing connectors *2 to arrange the tubes in multiple 3D shapes, like with the amaran T2c/T4c.
The PT2c can be controlled from the new interface on the back of the tube, featuring the latest UI, or via the Sidus Link Bluetooth app that powers the rest of the Aputure and amaran product lines. This ultra- capable application can control all the lights in the scene, activate stunning lighting effects, and ensure that the Pixel Tubes are always up to date. For more advanced console controls, a Wired USB-C to 5-Pin XLR In & Out DMX Dongle1 unlocks DMX control for the entire Pixel Tube product line, like the amaran T2c/T4c and F-Series products.
Combining layers of functionality, battery power, high-quality color, and a high transmittance diffuser that produces a wide 180° beam angle, the versatile mid-sized Pixel Tube from amaran shines as an effects, fill, accent light, and so much more. Lastly, for that extra touch of lighting control, the 45o Fabric Light Control Grid *3 will hone the quality of the light to perfection.
*1 amaran USB-C to DMX Adapter with USB-C Input Sold Separately
*2 amaran Pixel Tube Splicing Connectors Sold Separately
*3 45deg Fabric Light Control Grid for amaran PT2c Sold Separately
Features:
- 2ft (60cm) Battery Powered RGBWW Color LED Pixel Tube
• 8 Independently Controllable Pixels (LED Engines)
• Built-In 38.5Wh Lithium-Ion Battery (Approx. 170 min.
Runtime @ Max Power)
• Supports USB PD 20W Fast Charging
• 5-Sided Endcaps for Quick Positioning
• 3/8-16in Mounting Points on Each End Cap for Additional
Rigging Options
• Fully Tunable CCT from 2,700K to 10,000K
• CRI: 95, TLCI: 98, TM-30 Rf (ave.): 92, TM-30 Rg (ave.): 100,
SSI (D56): 75, SSI (Tungsten): 85
• Fully Tunable Green-Magenta Adjustment (Full Plus/Minus
Green)
• Advanced HSI with White Point CCT Control
• Sidus Link Bluetooth App Control
• DMX Control via USB-C with 12 Built-In DMX Profiles & DMX
Loss Behaviors1
• 9 System FX: Fireworks, Fire, Paparazzi, Faulty Bulb, TV,
Pulsing, Cop Car, Lightning, Party Lights
• 7 Pixel FX: Color Fade, Color Cycle, One Pixel Chase, Two
Pixel Chase, Three Pixel Chase, Rainbow, Pixel Fire
• Smooth Diffusion for High-Output Blended Color
• Included Threaded Magnetic Brackets & Eyebolt for
Additional Mounting Options
• Included Carrying Case
* amaran USB-C to DMX Adapter with USB-C Input Sold Separately
amaran PT2c Specifications:
CCT 2,700K – 10,000K
CRI (@ 5,600K) 95
TLCI (@ 5,600K) 98
CQS (@ 5,600K) 96
SSI (D56) 75
SSI (Tungsten) 85
TM-30 RF (@ 5,600K) 92
TM-30 RG (@ 5,600K) 100
Max Power Output 11.5W
Max Power Consumption 16W
Pixel Mapping 8 Pixels
Lumens 721lm
Beam Angle 180o
Charging Input USB Type-C PD 20W
Power Supply:
Voltage USB PD 5V/9V/12V/15V/20V
Cable Length 1.8m
Battery Voltage 14.8V
Battery Capacity 2600mAh, 38.48Wh
Battery Life:
Approx. 170 Mins @ 100% Output
Approx. 210 Mins @ 75% Output
Approx. 294 Mins @ 50% Output
Approx. 668 Mins @ 10% Output
Charge Time Approx. 170 Mins (20V/1A)
Operating Temperature -10°C ~ 40°C / 14°F ~ 104°F
Control Methods On-board, Sidus Link App, DMX via USB Type-C (Sold Separately)
Firmware Upgradeable Sidus Link
Wireless Operating Range ≤80m / ≤262.5ft (Bluetooth)
Screen Type TFT
IP Rating IP20
Cooling Method Passive Cooling
Dimensions:
Fixture φ42 x 600 mm
Magnetic T12 Bracket 54 x 46 x 42mm
Power Adapter 58 x 58 x 29mm
Eyebolt 36 x 20 x 40mm
Carrying Case 650 x 110 x 100mm
Weight:
Fixture 705g
Magnetic T12 Bracket 54g
Power Adapter 185g
Eyebolt 41g
Total with Case 1.55kg

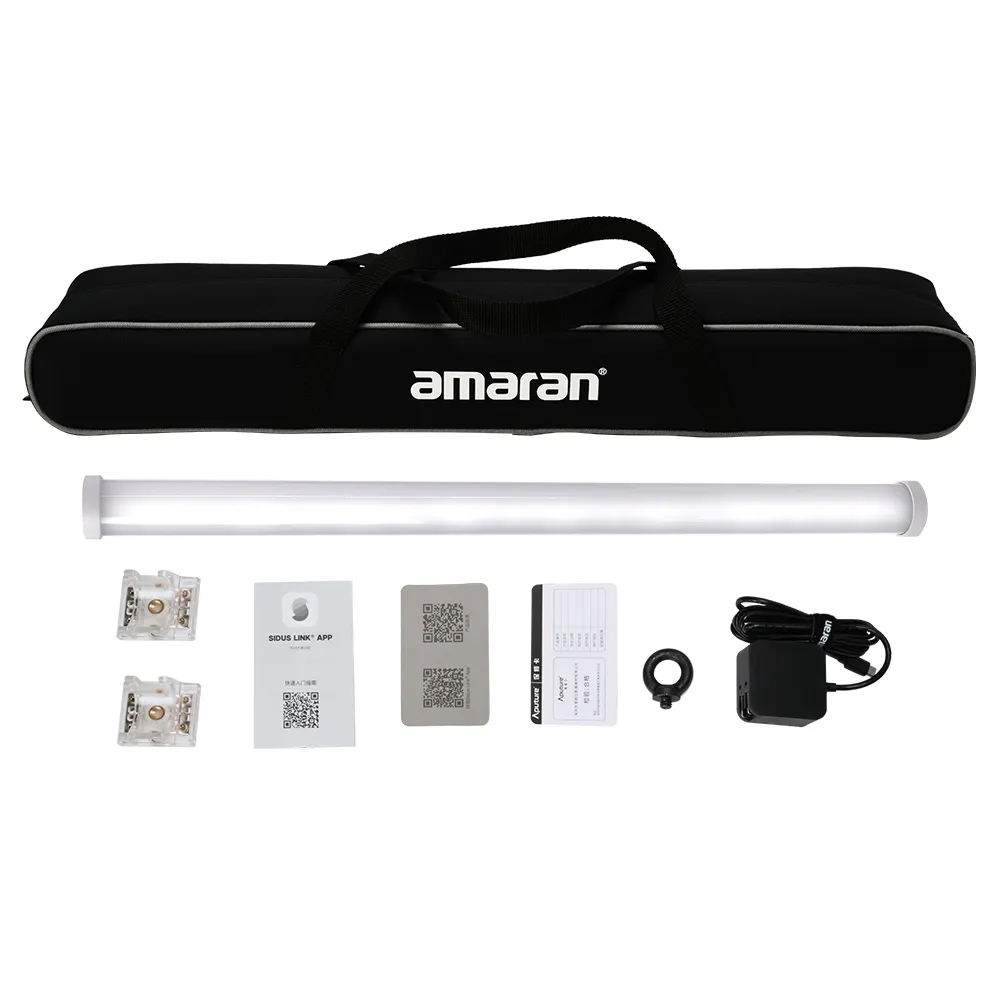

What’s in the Box:
amaran PT2c x 1
45W Power Adapter with USB-C PD Power Cable (1.8m) x 1
Magnetic T12 Bracket x 2
3/8-16in Eyebolt x 1
Carrying Case x 1
