AJA U-TAP USB 3.0 Powered HDMI Capture Device

AJA U-TAP USB 3.0 Powered HDMI Capture Device - Image 2

AJA U-TAP USB 3.0 Powered HDMI Capture Device

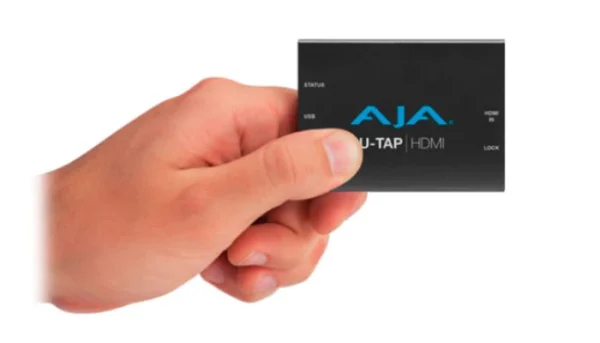

The AJA U-TAP USB 3.0 Powered HDMI Capture Device is suitable for use in the field, on set, or at a studio where USB connectivity provides a quick and easy way to obtain HDMI sources for capture, without the need to install additional software drivers. This compact capture device is bus-powered and supports frame rates up to 1080p60. This frame rate makes it useful for HD High Frame Rate (HFR) projects, live events, and fast moving subjects.

$780.00

Description

Connections

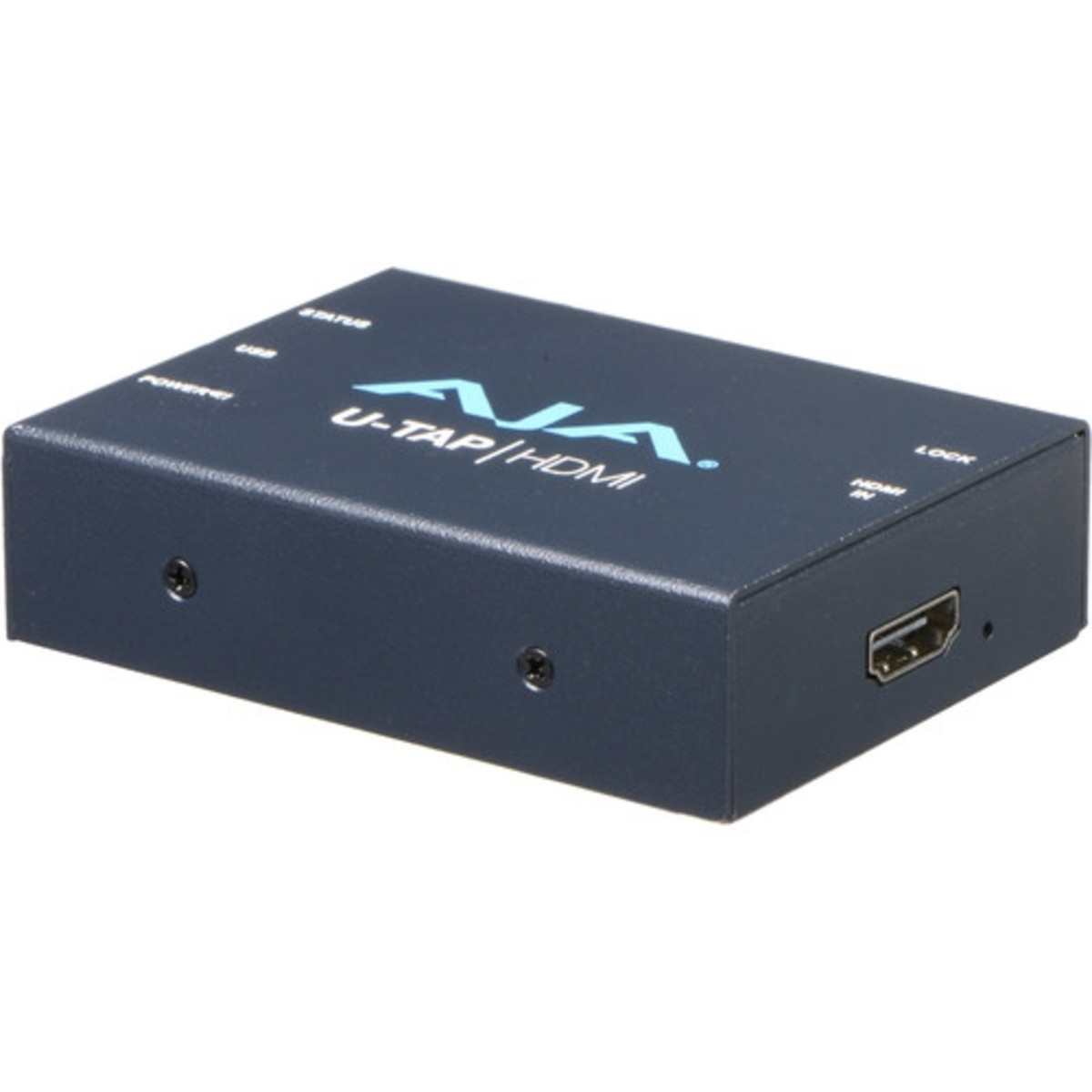

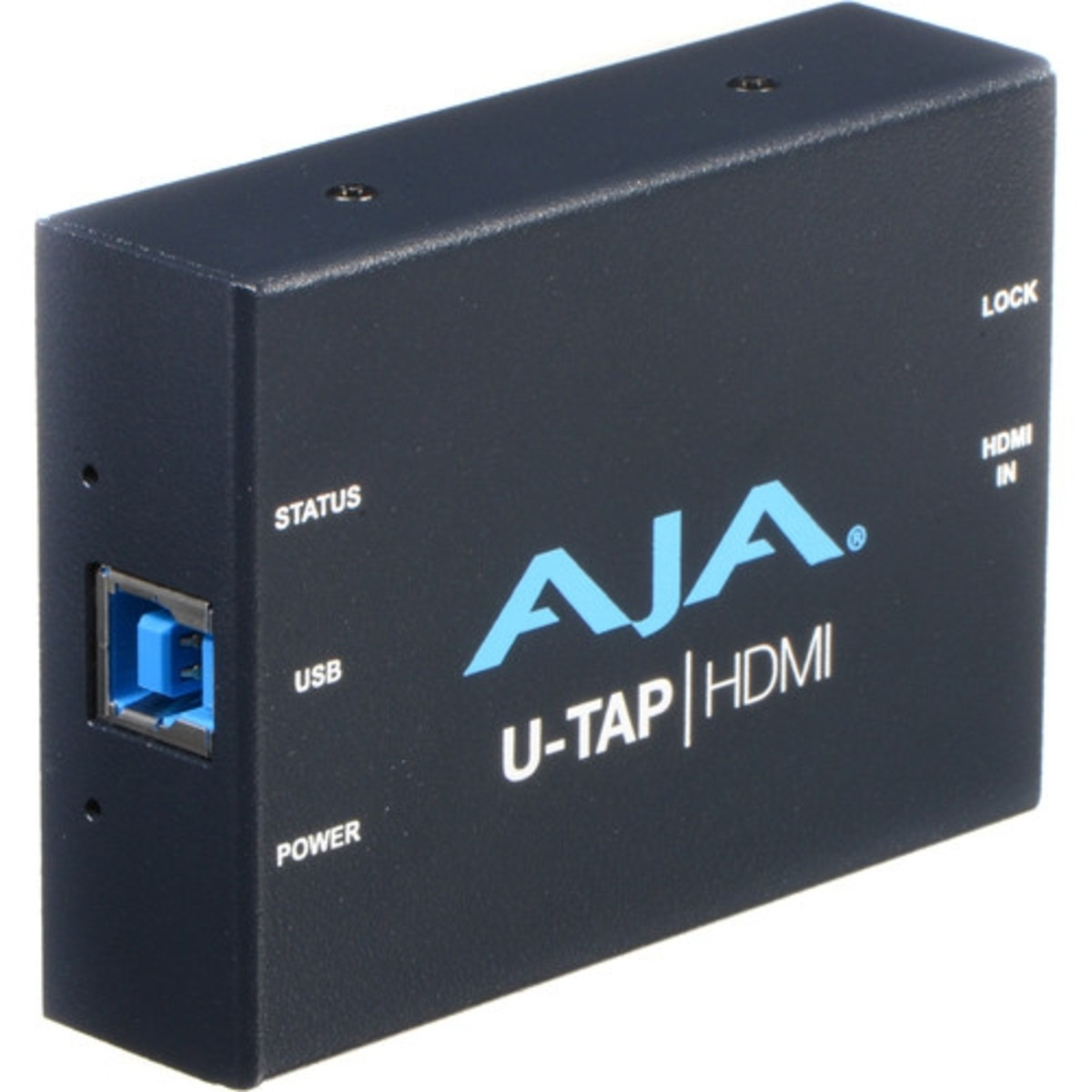

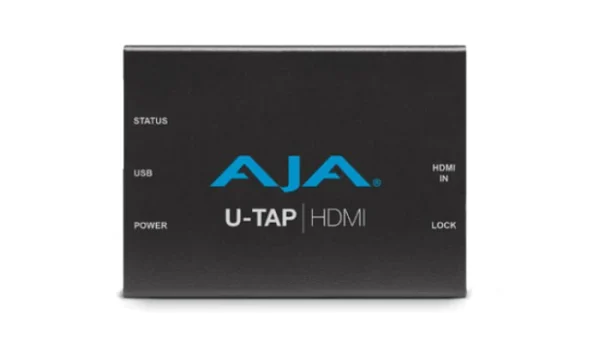

U-TAP HDMI features USB 3.0 host interface and HDMI input

Software Compatibility
U-TAP HDMI is UVC and UAC compatible on Mac, Windows and Linux, negating the need for additional drivers. This ensures compatibility with a wide range of professional software applications and a seamless integration between the native software.

Video Formats	Video: HD: 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 HD: 1920 x 1080i 25, 29.97, 30 HD: 1280 x 720p 50, 59.94, 60 SD: 625i 25 SD: 525i 29.97 Computer: 1920 x 1200p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1680 x 1050p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1600 x 1200p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1280 x 1024p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1280 x 960p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1024 x 768p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 800 x 600p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 720 x 576p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 640 x 480p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 Scaled: 1920 x 1200p 25, 29.97, 30, 50, 59.94, 60 1920 x 1080p 25, 29.97, 30, 50, 59.94, 60 1280 x 720p 25, 29.97, 30, 50, 59.94, 60 1024 x 576p 25, 29.97, 30, 50, 59.94, 60 856 x 480p 25, 29.97, 30, 50, 59.94, 60 768 x 576p 25, 29.97, 30, 50, 59.94, 60 720 x 576p 25, 29.97, 30, 50, 59.94, 60 720 x 480p 25, 29.97, 30, 50, 59.94, 60 640 x 480p 25, 29.97, 30, 50, 59.94, 60 640 x 360p 25, 29.97, 30, 50, 59.94, 60
Video Input Digital	HDMI v1.4a, 24-bits/pixel, RGB or YUV
Audio Input Digital	2-channel, HDMI embedded audio, 48 kHz sample rate
Host Interface	USB 3.0/2.0 UVC/UAC compliant
Software Compatibility	PC/Mac: Skype, Adobe Connect, GoToMeeting, Webex, Wirecast, TwitchTV, Ustream, YouTube Live, Flash Media Live Encoder, TeamViewerMac Only: FaceTime, QuickTime, and ScreenflowPC Only: Microsoft Lync, vMix, ProPresenter, and XSplitPC/Mac/Linux: VLC, OBS, Google Hangouts
Power	5 V USB bus powered; 6.5 W maximum
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-40 to 140°F (-40 to 60°C)
Relative Humidity	10 to 90% non-condensing
Operating Altitude	Up to 10,000′ (3,000 m)
Dimensions	3.3 x 2.4 x 1.0″ (8.4 x 6.1 x 2.5 cm)
Weight	0.3 lb (0.2 kg)
