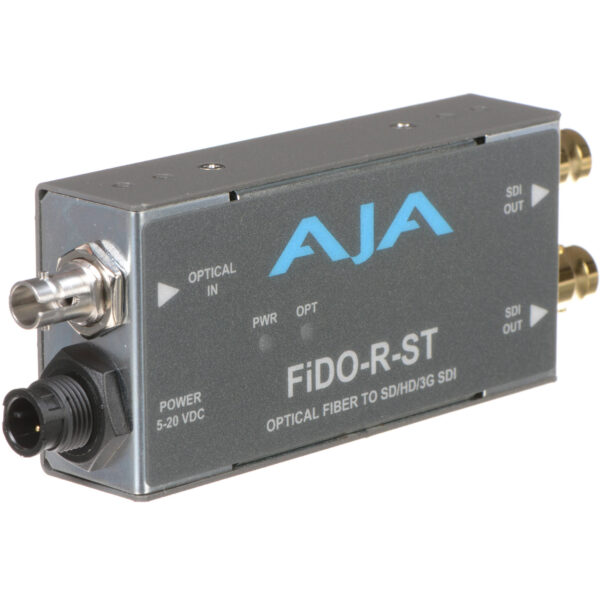

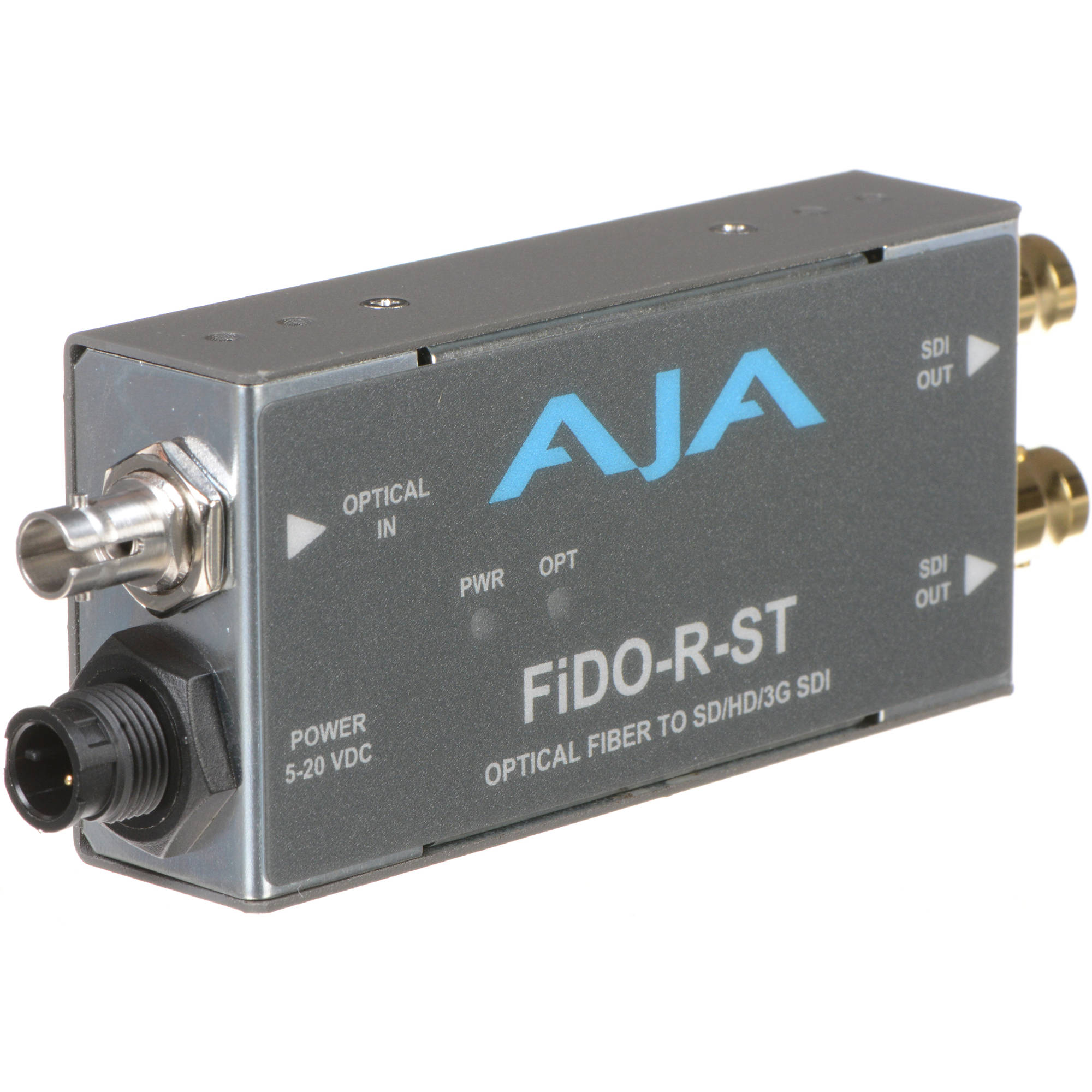

AJA FiDO 1-Channel Single Mode ST Fiber to 3G-SDI with Dual Outputs Receiver
Convert an ST fiber signal to two simultaneously active 3G-SDI outputs in resolutions up to 1080p. Transmit the input signal from up to six miles away at the max resolution over a single-mode fiber cable. AJA’s FiDO-R-ST features one ST optical fiber input and two 3G-SDI outputs, in a compact body suitable for indoor and outdoor use. Use it with compatible devices, or pair it with a corresponding FiDO Mini Converter.
Key Features
- Small enough to fit behind a monitor, back of a rack, or directly on a camera rig
- Autodetection of video format
- Equalized and reclocked input
- ASI compatible
- Meets all relevant SMPTE specifications
- Locking power connector
- 1.5W power consumption
Includes 5-20V worldwide power supply with four interchangeable plug adapters
$1,462.00
Specs
- Formats: 3 Gbps, 1.5 Gbps, 270 Mbps (automatically selected based on input)
- Input: 1 x ST optical fiber
- Output: 2 x 3G/HD/SD-SDI on BNC
- Supported Resolution: Up to 1920 x 1080p
- Power: 5-20 VDC
- Power Consumption: 1.5 W
- Dimensions: 12 x 4.3 x 2.4 cm (4.6 x 1.7 x 0.9″)
