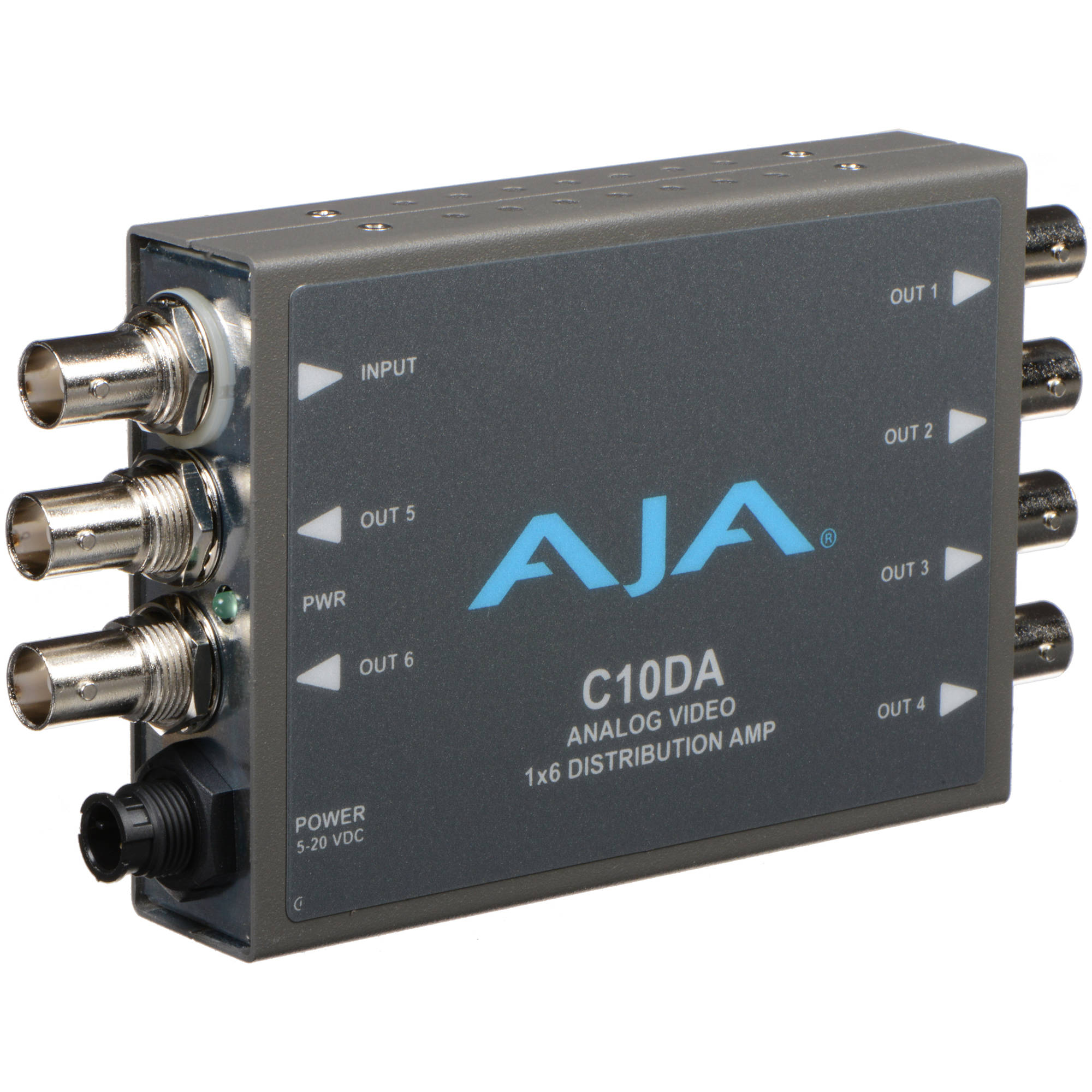

AJA Analog Video 1×6 Distribution Amplifier

AJA C10DA Specs

• Input: 1 x BNC, Analog HD/SD-SDI

• Outputs: 6 x BNC, Analog HD/SD-SDI

• Video Format Support: NTSC, PAL

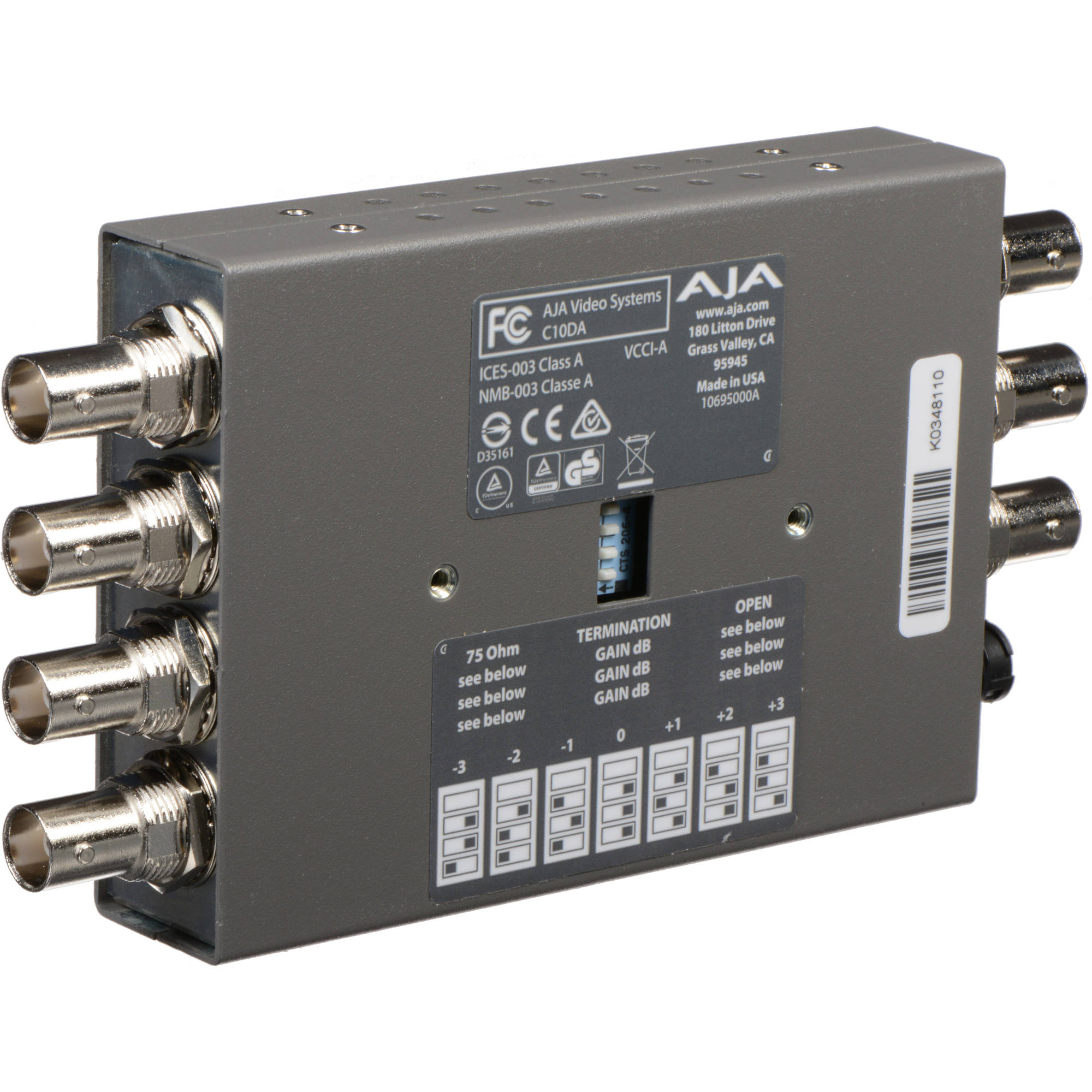

• Termination: 75 Ohms, Non-Terminated Option

• Video Bandwidth: 0 to 6 MHz ±0.1 dB

• Common Mode: 10 Vpp

• Return Loss: >35 dB to 6 MHz

• Output Isolation: >40 dB

• Gain: -3 to +3 dB ±0.3 dB

• Diff Gain: 0.15%, Not Load Dependent

• Diff Phase: 0.1°, Not Load Dependent

• Horizontal/Vertical: Tilt: < 0.1%

• Response: <0.1 dB, 1 to 6 Loads

• Operating Temperature: 32 to 104°F / 0 to 40°C

• Storage Temperature: -40 to 140°F / -40 to 60°C

• Relative Humidity, Non-Condensing: 10 to 90%

• Operating Altitude: <10,000′ / 3000 m

• Power: 5 VDC, 2 W

• Dimensions: 5.8 x 3.1 x 1″ / 14.7 x 7.9 x 2.5 cm

• Weight: 12.8 oz / 363 g
