Hangers Telescopic, Pantographs, Sky Track and Operating Poles

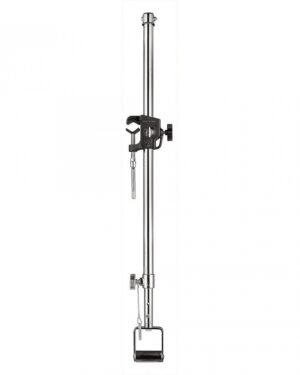

The Avenger C822 telescopic hanger with stirrup is an extra long 2 section hanger, with a single riser extension. This telescopic hanger has a minimum length of 210 cm/82.7 in and can extend as along as 379 cm/149.2 in and will hold capacities up to 40 kg/88 lb. The stirrup attachment on the end of this hanger is Ø 40 mm/1.6 in The grid clamp used to attach to pipes, truss or grids is also used to control the extension of the first section of the hanger. The clamping range is 25 to 55 mm/1 to 2.16 in. A safety cable with locking pin is included to add extra security for the extension. Recommended Accessories: C155, C1575B, C210, C150, C100, C338, C339UH, C461-1, C465-1, C345-1, C345K-1.

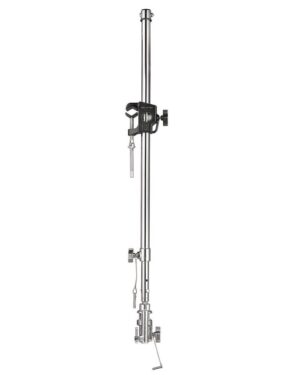

The Avenger C825 telescopic hanger with universal (combo) head is a 2 section hanger, with a single riser extension. This telescopic hanger has a minimum length of 121 cm/47.6 in and can extend as long as 201 cm/79.1 in. The junior receiver will hold capacities up to 40 kg/88 lb while the retractable 16 mm/ 5/8 in pin can hold a capacity up to 10 kg/22 lb. The grid clamp attaches to pipes, truss or grids and is also used to control the extension of the first section of the hanger. The clamping range is 25 to 55 mm/1 to 2.16 in. Two safety cables with locking pins are included to add extra security for the extension and the inserted junior pins which mount into the receiver. Recommended Accessories: C155, C1575B, C210, C150, C100, C338, C339UH, C461-1, C465-1, C345-1, C345K-1.

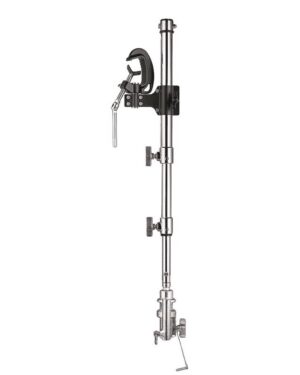

The Avenger C888UH offset telescopic hanger with universal (combo) head is a 3 section compact hanger, with a double riser extension. This compact telescopic hanger has a minimum length of 76 cm/29.9 in and can extend as long as 161 cm/63.4 in. The junior receiver will hold capacities up to 40 kg/88 lb while the retractable 16 mm/ 5/8 in pin can hold a capacity up to 10 kg/22 lb. The offset swivel grid clamp attaches to pipes, truss or grids and is also used to control the extension of the first section of the hanger. The clamping range is 10 to 55 mm/0.4 to 2.16 in. One safety cable with locking pin is included to add extra security for the inserted junior pins which mount into the receiver. Recommended Accessories: C155, C1575B, C210, C150, C100, C338, C339UH, C461-1, C465-1, C345-1, C345K-1.

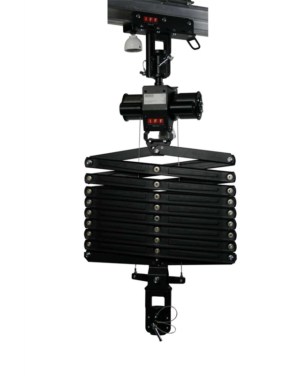

IFF Pole Operated Pantograph suspends and positions luminaires with loads of up to 40kg (88 Lbs). It is a versatile suspension unit for small, medium and large studios.

The pantograph can be extended via twin wire ropes. The self-locking drum winch with two steel cables support loads under static and dynamic conditions. The specially designed double scissors mechanism adds extra stability and is furnished with cable clips to support luminaire power cables. It is dynamically and statically irreversible thanks to its static and dynamic efficiency (<0.5). The pantograph is manufactured in accordance with the DIN 15560-46. Closed height 0.66 m.

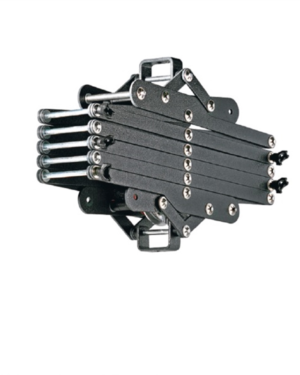

The TOP 4C is a manual operated friction pantographs for single loads of up to 18 kg (39.7 Lbs). TOP 2C extends 3.8 m.

The innovative design of the pantograph allows lights to be placed closer to the ceiling than ever before. A complete new range of top and bottom attachments have been designed to reduce at minumum the closed length. Entirely produced in Aluminum (P-Al MgSi UNI3569) and according to DIN 15560-46. The load is supported by a steel cable of 2 mm diameter (safety factor 12). Loads up to 12 kg (26.4 Lbs) can be supported by the patented friction device, while loads up to 18 kg (39.7 Lbs) require the use of optional springs.

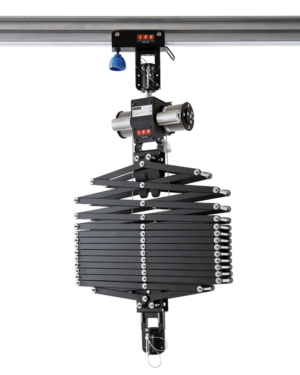

Manual, pole operated pantograph for single loads of up to 40kg (88Lbs).

The self-locking drum winch mechanism with two steel cables support loads under static and dynamic conditions. The specially designed sheet metal scissors add stability and are furnished with cable clips for power cables. Closed height 0.78 m.

Additional spring for pantograph.

Spring usage:
Without spring: From 0 to 4kg (8.8lbs)
Type 4: From 3kg (6.6lbs) to 8kg (17.6lbs)
Type 4 + Type 4: From 8kg (17.6lbs) to 14kg (30.8lbs)
Type 12: From 9kg (19.8lbs) to 16kg (35.3lbs)
Type 4 + Type 12: From 13kg (28.6lbs) to 18kg (39.7lbs)

Additional spring for pantograph.

Spring usage:
Without spring: From 0 to 4kg (8.8lbs)
Type 4: From 3kg (6.6lbs) to 8kg (17.6lbs)
Type 4 + Type 4: From 8kg (17.6lbs) to 14kg (30.8lbs)
Type 12: From 9kg (19.8lbs) to 16kg (35.3lbs)
Type 4 + Type 12: From 13kg (28.6lbs) to 18kg (39.7lbs)
