Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Showing 1–15 of 80 results
-
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper

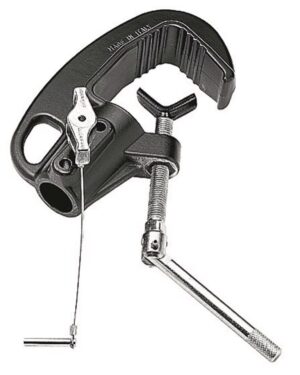

Avenger C100 Clamp Piper Jr 20 – 50mm 250Kg. 28mm Socket and Safety Cable Lock
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C100 Clamp Piper Jr 20 – 50mm 250Kg. 28mm Socket and Safety Cable Lock
The C100 Junior Pipe Clamp has a built-in 28 mm/1 1/8 in receiver. Capable of handling all junior pins, this gravity cast aluminum clamp has a Tommy Bar locking handle and requires no tools when attaching to truss or pipe grids. This clamp has a capacity of 250 kg, The jaws clamping range is from 20 mm – 55 mm/0.78 – 2.16 in and has an added safety cable with pin to secure junior pins. Recommended Accessories: C155, E200, C4461-1, C590, C4485, C822, C820, C888UH, C500, C150.
SKU: AVN-C100 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C150 C-Clamp Swivelling TUV Cert 28-78mm Range 10Kg on 16mm. 75Kg on 28mm
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C150 C-Clamp Swivelling TUV Cert 28-78mm Range 10Kg on 16mm. 75Kg on 28mm
The Avenger C150 Swiveling ”C” Clamp is an extremely robust Gravity Cast clamp that is designed to clamp on to truss, pipe grids or round tubes. It is rated to hold from 10-75 kg/22 lbs-165.3 lbs. (Up to 10KG on the 16 mm/ 5/8 inch retractable spigot and up to 75KG on the Junior 28 mm/1 1/8 inch receiver.) The clamping range on this clamp is 28-78 mm/1.1-3.1 inches. The added swiveling feature allows for easy aiming of any light. The clamp includes a safety cable with pin for the junior pin and an additional thumb screw to securely lock the pin when needed. TÜV SÜD certified. Recommended Accessories: C155, E200, E390, 158, E390, 014-14, 014-38, D200, C888UH, C500, C150.
SKU: AVN-C150 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C210 Clamp Baby Pipe w/ Tommy Bar 10mm to 55mm Range 100Kg Payload Alu
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C210 Clamp Baby Pipe w/ Tommy Bar 10mm to 55mm Range 100Kg Payload Alu
Avenger C210 Clamp Baby Pipe w/ Tommy Bar 10mm to 55mm Range 100Kg Payload
Works on diameters from 10mm to 55mm. It has a 5/8″ mounting stud and a load capacity of 220.46 lb (100 kg). Made of aluminum.
SKU: AVN-C210 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C210D Clamp Baby Pipe no Tommy Bar 10mm to 55mm Range 100Kg Payload Alu
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C210D Clamp Baby Pipe no Tommy Bar 10mm to 55mm Range 100Kg Payload Alu
The Avenger Baby Pipe Clamp w/o Tommy Bar works on diameters from 10mm to 55mm. It has a 16mm (5/8”) mounting stud and a load capacity of 100 kg (220.46 lb). A safety cable is included.
SKU: AVN-C210D -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C337 Clamp Quick Action Jr TUV Cer 40mm to 70mm Range 100Kg Payload Gravity Cast Alu
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C337 Clamp Quick Action Jr TUV Cer 40mm to 70mm Range 100Kg Payload Gravity Cast Alu
The Avenger C337 Quick Action Junior Clamp with 28 mm/1 1/8 inch receiver is the perfect partner for hanging lights with a 28 mm/1 1/8 inch Junior spigot or pins. Designed with a unique fast quick action mechanism which locks down the clamp quickly, followed by minor adjustments using the rubber covered T-Handle this clamp easily can hold lights up to 100 kg/220 lb. Made in gravity cast aluminum, this clamp is ideal to hang all types of lights and luminaires in TV studios and theatres. Its incredible coupling range means it can clamp onto most industry standard pipe diameters (Pipes ranging from 40-70mm/1.57 to 2.75 inch). To meet all safety requirements, the Avenger C337 has been designed with a dedicated slot for flexible steel safety cables, has a built in safety pin to secure the load or adapters mounted into this clamp. T-Top rubber T-Handle cover included to improve grip. TÜV SÜD certified. Recommended Accessories: E200, C155, FF3276, D400, C626, A2014, A2029, A2029CB, C590, C4461-1.
SKU: AVN-C337 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper

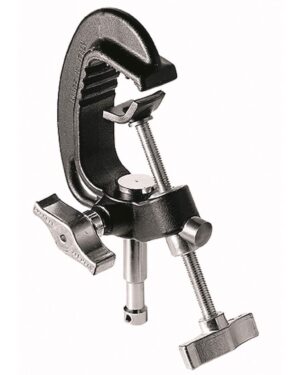

Avenger C338 Clamp Quick Action baby clamp 20mm to 52mm Range 50Kg Payload
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C338 Clamp Quick Action baby clamp 20mm to 52mm Range 50Kg Payload
The Avenger C338 Quick Action Baby Clamp with 16 mm/5/8 inch spigot or pin is ideal for all types of lights or fixtures with a baby receiver. This slim, lightweight baby clamp designed with a unique fast quick action mechanism which locks down the clamp quickly, followed by minor adjustments using the T-Handle can easily hold lights up to 50 kg/110.2 lb. The jaws of this quick action baby clamp can grip pipe diameters ranging from 20 to 52 mm/0.78 to 2.04 inch. Along with the attached safety cable with carabiner for the clamp there is a dedicated slot to use an additional safety cable if needed. Recommended Accessories: C155, C155-01, C155-02, FF3276, E390, C1575B.
SKU: AVN-C338 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C339 Clamp Grab
Carrier clamp for steel beams and pipes. The C339 Grab Clamp can be used flexibly and quickly by means of quick-release fasteners and universal fastening claws. Wing screws for adjusting the mounting opening and fixing the clamp. Field of application: TV, video, photo studios and much more.
SKU: AVN-C339 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C339BB Clamp Grab with 16mm Bushing
The Avenger C339BB Grab Clamp with Baby Bushing is flexible and fast and thanks to its pincer jaw design can be affixed to a wider variety of round or square pipes, beams and bars than traditional clamps. It has a push button lock for extra safety and a standard 5/8″ Baby receiver for fixtures and gear with a matching stud. Used in TV, video and photographic studios and theaters, the Grab Clamp will hold up to 50kg (110lb).
SKU: AVN-C339BB -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C339SP Clamp Grab with Spinning Pulley
The C339SP Grab Clamp with Spinning Pulley from Avenger is a pincer jaw clamp designed to fit a variety of round or square pipes, beams, and bars for supporting TV and theater backgrounds. The clamp is equipped with a push-button lock for extra safety and 9.9cm (3.9″) pulley for raising curtains or other articles in a theater environment. A testament to its zinc-plated steel construction, the clamp can support up to 150kg (331lb).
SKU: AVN-C339SP -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C345BK-1 Clamp Barrel T-Knob TUV Black 40-300Kg Payload 16/28mm M Gravity Casting w Safety Cable
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C345BK-1 Clamp Barrel T-Knob TUV Black 40-300Kg Payload 16/28mm M Gravity Casting w Safety Cable
This aluminum gravity casting black Barrel Clamp works on diameters from 42mm to 52mm. It holds a payload of 40kg on a 16mm attachment and 600kg on a 28mm attachment. The clamp is TUV SUD certified for maximum security for the user. It features 3 attachments: 5/8” (16 mm) bushing, 1” 1/8 (28 mm) bushing, and a 5/8” (16 mm) spigot. This clamp is extremely strong, featuring a knob locking mechanism for easy operation, and it includes a safety cable.
The C345BK supplied is black in colourSKU: AVN-C345BK-1 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper

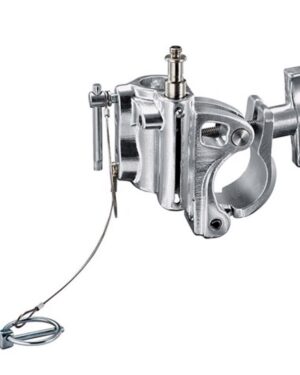

Avenger C345K-1 Clamp Barrel T-Knob TUV Silver 40-300Kg Payload 16/28mm M Gravity Casting w Safety Cable
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C345K-1 Clamp Barrel T-Knob TUV Silver 40-300Kg Payload 16/28mm M Gravity Casting w Safety Cable
The Avenger C345K-1 Barrel Clamp in silver is made with gravity cast aluminum, has a built in 28 mm/ 1 1/8 inch junior receiver, a 16 mm/ 5/8 inch baby pin with a 1/4” threaded top and a 16 mm/5/8 inch receiver. This barrel clamp is capable of mounting pipes or tubes ranging from 42 – 52 mm/1.65 – 2.05 inch and easily locks into place using a T-Knob. The baby attachment can support loads up to 40 kg while the junior receiver can take capacities up to 300 kg/661.4 lb. The C345K-1 includes a safety cable with locking pin to secure attachments that are mounted in the junior receiver. TÜV SÜD certified. Recommended Accessories: C155, C155-01, C155-02 E200, FF3276, A2029, C590, C626.
SKU: AVN-C345K-1 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C4462-1 Clamp Eye Coupler 16mm Spigot 300kg Payload 42-52mm Wide TUV SUD Certified
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C4462-1 Clamp Eye Coupler 16mm Spigot 300kg Payload 42-52mm Wide TUV SUD Certified
The Avenger C4462-1 MP Eye Coupler grid clamp comes supplied with a 16 mm(5/8”) baby male spigot. Commonly referred to as a Little Ben Clamp this popular clamp is ideal for many rigging systems, truss and entertainment configurations. This popular MP cheeseboro clamp has a wider clamp range than the LP clamp and is ideal for many rigging systems, truss and entertainment configurations. The lower jaw has a special flattened shape which helps in the sizing of this clamp and the increased flexibility to clamp down on different types of tubing. Capable of holding up to 300 kg loads this clamp will perform in many demanding environments. The MP Eye Coupler uses a wing nut with washer locking design and is able to clamp down on round tubes, truss or grids ranging from 42 mm(1.65”) to 52 mm(2.04”) and is 50 mm(1.96”) wide. TÜV and SÜD certified. Recommended Accessories: C155, C155-01, E390, C460-1, C463-1, C4460-1, C464-1, E200, C4465-1.
SKU: AVN-C4462-1 -
Clamps Half Coupler, Barrel, Grab, C-Clamp and Piper
Avenger C4482 Clamp MP Eye Couple Swivel 300kg Payload 42-52mm Wide Rotates 360Deg
Clamps Half Coupler, Barrel, Grab, C-Clamp and PiperAvenger C4482 Clamp MP Eye Couple Swivel 300kg Payload 42-52mm Wide Rotates 360Deg
The Avenger C4482 Swivel MP Eye Coupler is made from 2 connected couplers that are free to rotate 360°. Designed for quick and easy connecting of trusses, bars or pipes. This swivel coupler is capable of clamping diameters ranging from 42 mm(1.65”) to 52 mm(2.04”) and each coupler is 50 mm(1.96”) wide.
Recommended Accessories: E390, C155, C460-1, C461-1, C463-1, C4460-1, C464-1, E200, C4465-1, C464-1.
SKU: AVN-C4482
