Enlargers and copy stands
Showing 1–15 of 137 results
-
-
Enlargers and copy stands

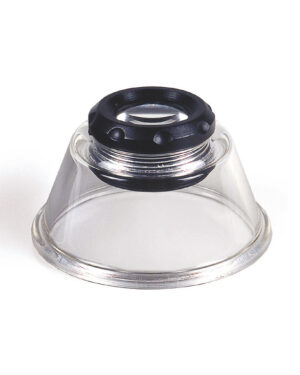

Kaiser Fototechnik 2351 All-Purpose Magnifier 4.5 x
Base magnifier with high-quality lens made of optical glass.
- Sharp, distortion-free image up to the edges.
- Eyesight correction from +1 to -2.5 for individual adjustment to one’s own visual acuity.
- Light-weight, sturdy plastic housing.
- Translucent base for reflected and transmitted light originals.
Specifications
- Magnification: 4.5-fold
- Lens:?? 35mm
- Viewing field:?? 45 mm (suitable for 35 mm slides)
- Height: approx. 70 mm
- Weight: approx. 56 g
SKU: KFO-KF-2351 -
Enlargers and copy stands
Kaiser Fototechnik 4401 B & W Enlarger VP 350
For sizes up to 24 x 36 mm (35 mm film) and lenses up to 50 mm focal length.
- Lamp head with 75 W opal lamp, lamp adjustable.
- Removable compound negative carrier with negative masks for size 24 x 36 mm.
- Optically ground single condenser.
- Lens stage with spirit level and red filter.
- Quick change attachment for lens.
- Can accommodate filter drawer.
- Height adjustment by hand crank-operated friction drive on plastic bearings.
- Column with cm and inch scales.
- Floor projection possible.
- The enlarger is convertible to sizes up to 6 x 9 cm and to a Color enlarger and to a copy stand.
- Supplied with compound negative carrier, lamp and two lens holder rings, without lens.
Specifications:
- Baseboard (WxHxD): approx. 400 x 420 x 25 mm (15.7 x 16.5 x 1 in.)
- Height of column: approx. 760 mm (30 in.)
- Maximum enlargement on baseboard: 24 x 30 cm (9.4 x 4.8 in.)
- Lamp: Opal lamp 75 W
- Cord: ca. 2.50 m (8 ft. 2 in.)
(Replacement lamp: 4356)
SKU: KFO-KF-4401 -
Enlargers and copy stands
Kaiser Fototechnik 4407 Column 0.8m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in. - Height adjusted by gear rack, with weight compensation by built-in roller spring, additional 1:6 fine drive.
- Locking screw for fixing height adjustment. Height: 80 cm (31.5 in.)
SKU: KFO-KF-4407 -
Enlargers and copy stands
Kaiser Fototechnik 4408 Column 1.2m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
- Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)
- Height adjusted by gear rack, weight compensated by built-in roller spring, locking screw for fixing height adjustment.
- Height 1.2 m (47 in.)
SKU: KFO-KF-4408 -
Enlargers and copy stands
Kaiser Fototechnik 4409 Column, 1.5m
Wide and extremely vibration-resistant column of aluminium tubing with dull black anodized surface and cm and inch scales.
- With mount and fastening mechanism for camera arms and for lower part enlarger head 4568.
- Height adjustment by hand crank.
- Cross-sectional dimensions of the column: 70 x 35 mm (2.8 x 1.4 in.)
- Height adjusted by friction gear with plastic bearings, weight compensated by built-in roller spring, locking screw for fixing height adjustment.
- Height: 1.5 m (60 in.)
SKU: KFO-KF-4409 -
Enlargers and copy stands
Kaiser Fototechnik 4412 Wall Mount
Sturdy wall mount for all R1 system columns.
- Wall mounting with 6 screws.
- Upper part adjustable for absolutely vertical position.
- Lower part with base and spirit level.
- Entire height with 1 m column: 1.16 m (3 ft. 10 in.).
- Distance wall – front edge of mount (without camera arm): approx. 25 cm (9.8 in.)
- Supplied with screws and dowels.
SKU: KFO-KF-4412 -
Enlargers and copy stands

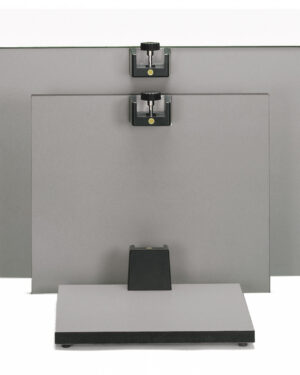

Kaiser Fototechnik 4413 Base Board 600 x 500 mm
Matt-gray base board with column base fixed for attaching column.
Spirit level in column base. Individually height-adjustable feet.
Dimensions (WxHxD):
4472: approx. 450 x 28 x 500 mm (17.7 x 1.1 x 19.7 in.)
4413: approx. 600 x 32 x 500 mm (23.6 x 1.3 x 19.7 in.)
4414: approx. 800 x 32 x 600 mm (31.5 x 1.3 x 23.6 in.)
(Dimensions without base and feet)SKU: KFO-KF-4413 -
Enlargers and copy stands
Kaiser Fototechnik 4414 Base Board 800 x 600 mm
Matt-gray base board with column base fixed for attaching column.
Spirit level in column base. Individually height-adjustable feet.
Dimensions (WxHxD):
4472: approx. 450 x 28 x 500 mm (17.7 x 1.1 x 19.7 in.)
4413: approx. 600 x 32 x 500 mm (23.6 x 1.3 x 19.7 in.)
4414: approx. 800 x 32 x 600 mm (31.5 x 1.3 x 23.6 in.)
(Dimensions without base and feet)SKU: KFO-KF-4414 -
Enlargers and copy stands
Kaiser Fototechnik 4421 rePRO-Adapter
Kaiser Fototechnik 4421 rePRO-Adapter, for mounting the camera arms 5520-5527, 5539, 5540 and the enlarger head lower part (4568) on column RSP (5612) and copys stand 5710 and 5711. For use of R1 system camera arms with RSP or RSD/RD copy stands / columns.
SKU: KFO-KF-4421 -
-
