Video production hardware

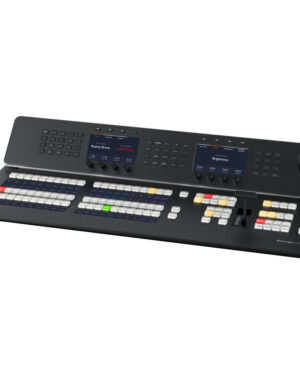

20 Input Buttons, 2 System Control LCDs
Control Panel for ATEM Switchers
4 x Upstream & 4 x Downstream Keyers
4 x M/E Rows
Joystick for Precise DVE Control
Ergonomically Designed T-Bar
Programmable Auto Transitions
Single-Button Fade to Black
Dedicated Preview Transition Button
Colour Backlit Buttons

30 Input Buttons, 3 System Control LCDs
Control Panel for ATEM Switchers
4 x Upstream & 4 x Downstream Keyers
4 x M/E Rows
Joystick for Precise DVE Control
Ergonomically Designed T-Bar
Programmable Auto Transitions
Single-Button Fade to Black
Dedicated Preview Transition Button
Color Backlit Buttons

The advanced ATEM 1 M/E Production Studio 4K model switches between SD, HD or Ultra HD video standards so you can connect a wide range of video sources such as cameras, disk recorders and computers. Featuring 10 inputs, chroma keys, transitions, media pool, 4 upstream keyers, downstream keyers, audio mixer, multi view, full motion DVE, stinger transitions, large media pool with full motion clips and 3 auxiliary outputs!

The 2 M/E model features 2 M/E rows with 20 input buttons and 2 independent system control LCDs for each row. Plus each row can control up to 4 M/Es in larger switchers. Both rows and all input buttons include LCDs for custom labeling. Each row also includes an independent select bus!

Supports 12/3G/HD-SDI at 10-Bit
20 x 12G-SDI Input, 12 x 12G-SDI Output
Up to 16-Multiview Monitoring Windows
Webcam Output via USB-C
Frame Rate/Format Converter per Input
48-Channel Audio Mixer

• Supports 3G/HD-SDI at 10-Bit
• 20 x 3G-SDI Inputs, 12 x 3G-SDI Outputs
• Up to 16-Multiview Monitoring Windows
• Webcam Output via USB-C
• Frame Rate/Format Converter per Input
• 48-Channel Audio Mixer
• 8 x Upstream, 2 x Downstream Keyer
• Chroma/Luma Keyers
• Color/Pattern Generators
• Hardware or Software Mac/Windows Control

Get one of the world’s most compact and advanced switchers with the new ATEM 4 M/E Broadcast Studio 4K. You get an incredibly high performance live production switcher designed to work with the latest formats and high frame rates, all the way up to Ultra HD 2160p59.94! You get 16 next generation ATEM Advanced Chroma Keyers with 4 per M/E, perfect for advanced work and virtual sets. As the most advanced ATEM switcher, this model also includes the latest technology and features such as 2 Ultra HD multi viewers, full 2D DVE, built in SuperSource compositing engine with 4 picture in picture DVE’s, full re-synchronization on each 12G-SDI input and much more! The multi rate 12G-SDI connections automatically switch between all HD and Ultra HD formats up to 2160p59.94 with a single BNC cable! Even if you’re not working in Ultra HD now, the ATEM 4 M/E Broadcast Studio 4K has all the power and features for the highest end live production work, while being Ultra HD ready the instant you need it!

The Blackmagic Design ATEM 4 M/E Constellation 4K is a massive 4 M/E Ultra HD live production switcher. It features 40 standards converted 12G-SDI inputs, 24 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multi viewers, 2 SuperSource processors and more. You even get built-in talkback and a professional 156-channel Fairlight audio mixer with EQ and dynamics.
