• Column made of special aluminum multisection tubing, matt black anodized, with cm and inch scales.
• Camera carrier made of aluminum section, can be horizontally adjusted over approx. 16 cm (6.3 in.) with rack-and-pinion parallel guides.
• Left hand/right hand operation, two blocking screws prevent inadvertent changing of the adjusted position.
• Camera mounting plate tiltable by ? 90?.
• Connecting screw horizontally adjustable.
• Height adjustment with hand crank (5602) or motorized (5603).
• Large non-reflecting matt grey base plate with printed grid, cm and inch scales.
• Feet adjustable in height.
• Spirit level.

Specifications

• Base plate (WxHxD): 680 x 38 x 570 mm (26.8 x 1.5 x 22.4 in.)
• Height of column: 1.20 m (3.9 ft.)
• Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
• Loading capacity: 8 kg (17.6 lbs.)
• Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
• Reversing mounting thread: 1/4? / 3/8? changeable

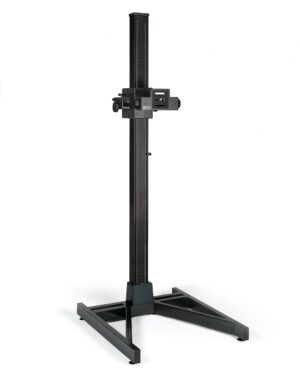

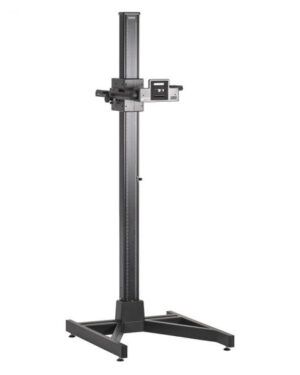

Heavy-duty copy stand for analogue and digital image capturing work with two-level motor-driven adjustment.

• Accepts originals up to 100 x 80 cm (39.4 x 31.5 in.).
• Extremely sturdy column, made of a multi-section special extrusion, black anodized, with printed cm and inch scales.
• Column foot made of double strutted steel tube.
• Steel socket for bolting the column.
• Four levelling feet.
• Detachable base board made of 4 mm aluminium with stabilizing substructure.
• Camera carrier made of die-cast aluminium, horizontally adjustable by parallel guides with friction drive and hand cranks for right-hand/left-hand operation.
• Two blocking screws.
• Camera mounting plate tiltable by +/- 90?. Built-in spirit level.

• Camera carrier and base board with individual motorized height adjustment.
• Two travel speeds, independent of load.
• Self-limiting worm gear: any height position is exactly held.
• Automatic end switch by magnet sensor.
• Anti-collision device.

• Cable remote control.


Specifications:

• Total height: 227 cm (89.4 in.)
• Maximum working span: 160 cm (63 in.)
• Column cross section: 120 x 80 mm (4.7 x 3.1 in.)
• Maximum load on camera carrier: 10 kg (22 lbs.)
• Maximum load on base board: 15 kg (33 lbs.)
• Base board: 100 x 80 cm (39.4 x 31.5 in.)
• Camera platform: 13 x 13 cm (5.1 x 5.1 in.)
• Connecting thread (interchangeable): 1/4? / 3/8?
• Required floor space (WxD) : 100 x 126 cm (39.4 x 49.6 in.)
