Rycote

Product Code: 065566

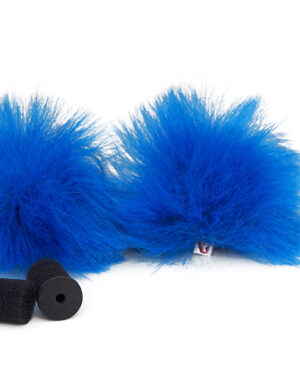

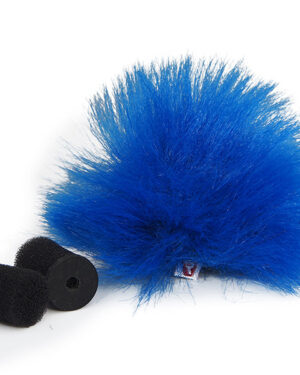

Suitable for use with Lavalier Mic Foams

Main Benefits:

• High-level protection against wind noise for lavalier mics in the open air
• Reduces lavalier microphone noise and clothes rustle

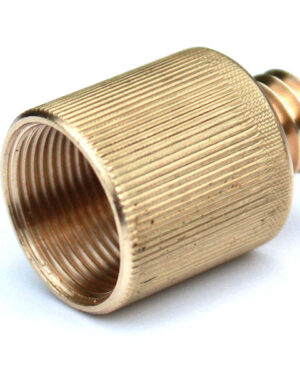

Brass 3/8″ M to 5/8″ F screw adaptor

Product Code: 047302

Main Benefits:

• Stronger, through better design & new material

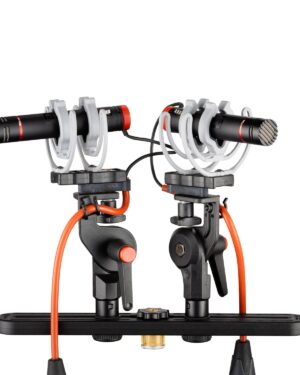

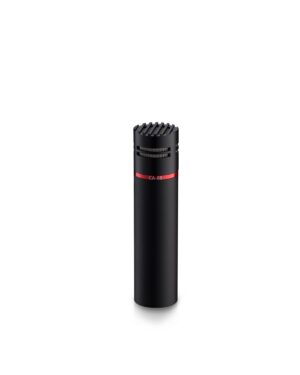

The Rycote CA-08 (Stereo Pair) is a pair of cardioid pencil condenser microphones designed for a range of applications in studio and field recording.

The CA-08 microphones provide slight directionality with a virtually flat frequency response from 70Hz-20KHz, gradually dropping off below 60Hz. The mics are built on Rycote’s low self-noise preamp design and capsules which offer a consistent sonic signature that mixes well when cut together with other Rycote microphones in the
range. The CA-08 mics can be used individually or in matched stereo pairs.

FEATURES

Capsule:
• Professional broadcast quality and individually fine-tuned back electret capsule
• Virtually flat frequency response from 70Hz to 20KHz

Preamp:
• Compact design
• Ultra low noise circuitry
• Sophisticated RF shielding
• Low power consumption

Connector:
• Gold-plated Neutrik XLR connector

RF-Protection:
• Active in-line filtering
• Fine-tuned mechanical RF shielding
• Thoroughly tested against digital wireless systems and walkie talkies

Materials:
• Preamp made from non-corrosive machined brass – low impedance to ensure best possible and longest lasting RF shielding
• Capsule made from lightweight machined aluminium

Items included in delivery:
• 2 x CA-08 Microphone
• 1 x Microphone hard case
• 2 x Microphone clamp
• 2 x Microphone foam

PRODUCT CODE: RYC079006

SPECIFICATIONS PER MICROPHONE:

Frequency Range: 45 Hz – 20 kHz
Self Noise: 13.0 dB-A (+/- 2 dB)
Polar Pattern: Cardioid
Capsule Type: Back Electret Condenser
Output Sensitivity: 24.3 mV/Pa (-26.9 dB)
Max. Output Voltage: 4 Vp
Output Impedance: 100 Ω
Min. Load Impedance: 1 k Ω
Signal / Noise Ratio: 80 dB typical (@ 1 kHz/Pa A-weighted)
CMRR (@ 1 kHz): > 60 dB
Max. Cable Length: 100 m
Powering: P-48
Powering Valid Range: 48-24V (Max SPL reduced at 24V)
Current Consumption: 3.0 mA
Max. SPL: 133 dB SPL (at 1 kHz 1.0% THD Typical) 127 dB SPL (at 1 kHz 0.5% THD Typical)
RFI Shield: Yes
Connector: XLR-3M
Weight: 69 g
Colour: Matte Black

COMPATIBLE RYCOTE WINDSHIELDS
• 5cm SGM Foam
• 5cm Classic Softie
• 5cm Short Fur Softie
• 5cm Super Softie
• Nano Shield Kit NS1-BA
• Cyclone Windshield, Small
• Modular Windshield WS 10 Kit
• Baseball 19/20mm

Classic Adaptor for PCS-Boom Connector

The Classic Adaptor for PCS-Boom Connector (Connector not supplied), is the neatest, lightest and simplest way to integrate the Rycote Professional Connection System into your existing Rycote windshield kit. The Classic Adaptor replaces your kit’s existing boom adaptor and has a built-in, fixed PCS tip, along with a unique new XLR holder with 360° adjustability.

1 x Classic Adaptor for PCS-Boom Connector

1 x XLR Holder (pre-fitted)

Main Benefits:

Simplest way to integrate the Rycote PCS quick attachment/quick release functionality into your existing Rycote windshield kit

• Smaller and lighter – compared to using the existing boom adaptor with a separate 3/8” PCS Tip attached

• Built-in PCS tip means your windshield is always ‘PCS-ready’ and there’s one less moving/removable part to think about!

• With a fixed PCS tip, as opposed to threaded on, it is always in perfect alignment with the windshield kit itself

• Unique XLR holder which allows for 360 degree rotation, so you can easily choose & change where the XLR sits, relative to the mount

• XLR holder designed with a slight ‘kick angle’ to help better accommodate the use of plug-in transmitters at the end of the boom

• Compatible with Rycote Modular and Pre-Modular Windshield Kits; Super-Shield Kits; ‘Perfect For’ Windshield Kits; Classic-Softie® Kits and other Rycote mounts fitted with a boom adaptor (replacing the existing boom adaptor or pistol grip handle)

• Easy to fit
