Rycote

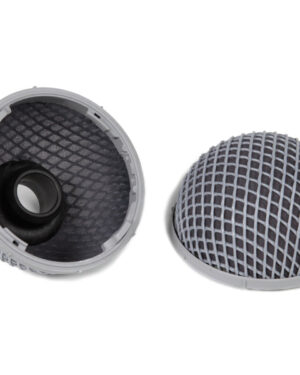

22mm BBG Windshield

Product Code: 011002

Maximum wind-noise protection in a compact spherical package

Suitable for microphones with a 22mm shank diameter

Main Benefits:

• Great windshielding, in a smaller package
• Perfect for hand-held operations and interviews
• Optional Windjammer available for windiest conditions

Made to offer the wind attenuation properties of a full sized windshield in a much smaller package, the BBG Windshields are designed to slip onto the body of the microphone. This allows the microphone to be hand-held or shock-mounted with a Lyre suspension.

Perfect for short microphones, the BBG Windshield are suitable for low-profile boom applications as well as for use in hand-held operations and interviews. They are widely used for microphones with bulbous ends and ORTF microphone pairs, where the maximum head diameter is 80 mm.

The windshield is constructed of the same material as the full size modular windshields, but rather than clipping to a microphone suspension, the Windshield is mounted directly on the microphone, by a grommet gripping the microphone body. The microphone is pushed through the grommet, to completely enclose the microphone capsule.

The Windshield consists of two halves, which can be separated, to fit microphones with a ball-head or tapered body from inside the windshield. For additional wind protection a furry Windjammer cover is available.

Tech Specs

Suitable for microphones with a 22mm shank diameter

Windshield Height: 100mm
Windshield Length: 100mm
Grommet Internal Diameter: 22mm
Maximum wind-noise attenuation: 30dB

Finding the correct Baby Ball Gag will depend mainly on the diameter of the microphone shank. The size of the Baby Ball Gag relates to the diameter of the microphone body, i.e. a 22 mm Baby Ball Gag will fit a microphone with a 22 mm diameter shank. The microphone is fitted through a neoprene grommet into the Ball Gag, and must be central for the best wind protection. Please note the maximum diameter of the head is 80 mm.

Finding the correct Baby Ball Gag will depend mainly on the diameter of the microphone shank. The size of the Baby Ball Gag relates to the diameter of the microphone body, i.e. a 20 mm Baby Ball Gag will fit a microphone with a 20 mm diameter shank. The microphone is fitted through a neoprene grommet into the Ball Gag, and must be central for the best wind protection. Please note the maximum diameter of the head is 80 mm.

29cm Classic-Softie (19/22)

Product Code: 033082

The Softie Windshield is a slip-on open-cell foam, with integral fur cover. The Softie will reduce wind-noise, protect your mic and is the standard world wide in TV.

Main Benefits:

• Cost effective windshielding which is tough enough to endure ENG and location recording
• Simple to use standard in world wide in TV
• High quality windshielding and shockmounting for an affordable price

The Softie Windshield provides a quick, simple, robust and cost effective windshield for the tough environment of modern day ENG and location recording.

The Softie Windshield is a slip-on open-cell foam, with integral fur cover. The Softie will reduce wind-noise, protect your mic and is the standard world wide in TV. Softie windshields are available in a large range of sizes to fit most popular shotgun microphones.

Both the acoustic foam and synthetic fur are made from materials which are specially designed and manufactured for the purpose, and as a result up to 25 dB of wind-noise reduction without any adverse effect on High-Frequency. In addition the foam is not susceptible to UV or moisture damage, giving this product great longevity.

Advanced materials, adhesives and assembly techniques all combine to make the Softie an extremely tough product that provides excellent wind protection in the harshest of environments.

The Softie Windshield can be purchased either on its own, or as part of a Kit, which includes a Windshield, Lyre shock-mount and Pistol-grip.

Softie Windshields come in two varieties of fur length, classic and short hair. The short haired Softie, known as the Camera-Mounted Softie has closely cropped dark grey synthetic fur, offers lower profile and a more compact design without severely altering the efficiency of the Softie. It can also be mounted close to the camera lens without causing unwanted shadows.

Tech Specs

Slip-on fur and open-cell foam windshield suitable for shotgun microphones, with slots no further than 29cm from the front of the mic and a diameter of 19-22mm.

To fit microphone diameter: 19-22mm
Windshield internal Length: 290mm
Total Windshield Length: 315 mm
Rubber diameter: 70mm
Overall diameter: 120mm
Fur length: 25mm
Fur Colour: Grey
Max Wind-noise Attenuation: 25 dB

Finding the correct slip-on windshield will depend on the type, length and diameter of the microphone. Slip-on windshields are designed for cylindrical shotgun mics, ranging from 19-25 mm in diameter.

For any windshield to work effectively it must cover all the ports on the microphone. Therefore a 12 cm slip-on windshield would be suitable for shotgun microphones, with slots no further than 12 cm from the front of the mic.

The diameter of the microphone is also key, as the fit must be tight in order to achieve a good seal. Rycote slip-on windshields come in two diameter fittings, Standard (19-22 mm) or Large (24-25 mm).

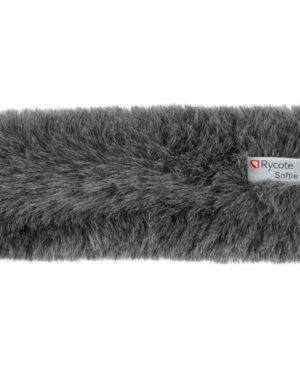

29cm Classic-Softie (24/25)

Product Code: 033083

The Softie Windshield is a slip-on open-cell foam, with integral fur cover. The Softie will reduce wind-noise, protect your mic and is the standard world wide in TV.

Main Benefits:

• Cost effective windshielding which is tough enough to endure ENG and location recording
• Simple to use standard in world wide in TV
• High quality windshielding and shockmounting for an affordable price

The Softie Windshield provides a quick, simple, robust and cost effective windshield for the tough environment of modern day ENG and location recording.

The Softie Windshield is a slip-on open-cell foam, with integral fur cover. The Softie will reduce wind-noise, protect your mic and is the standard world wide in TV. Softie windshields are available in a large range of sizes to fit most popular shotgun microphones.

Both the acoustic foam and synthetic fur are made from materials which are specially designed and manufactured for the purpose, and as a result up to 25 dB of wind-noise reduction without any adverse effect on High-Frequency. In addition the foam is not susceptible to UV or moisture damage, giving this product great longevity.
Advanced materials, adhesives and assembly techniques all combine to make the Softie an extremely tough product that provides excellent wind protection in the harshest of environments.

The Softie Windshield can be purchased either on its own, or as part of a Kit, which includes a Windshield, Lyre shock-mount and Pistol-grip.

Softie Windshields come in two varieties of fur length, classic and short hair. The short haired Softie, known as the Camera-Mounted Softie has closely cropped dark grey synthetic fur, offers lower profile and a more compact design without severely altering the efficiency of the Softie. It can also be mounted close to the camera lens without causing unwanted shadows.

Tech Specs

Slip-on fur and open-cell foam windshield suitable for shotgun microphones, with slots no further than 29cm from the front of the mic and a diameter of 24-25mm.

To fit microphone diameter: 24-25mm
Windshield internal Length: 290mm
Total Windshield Length: 315 mm
Rubber diameter: 70mm
Overall diameter: 120mm
Fur length: 25mm
Fur Colour: Grey

Max Wind-noise Attenuation: 40 dB

Finding the correct slip-on windshield will depend on the type, length and diameter of the microphone. Slip-on windshields are designed for cylindrical shotgun mics, ranging from 19-25 mm in diameter.

For any windshield to work effectively it must cover all the ports on the microphone. Therefore a 12 cm slip-on windshield would be suitable for shotgun microphones, with slots no further than 12 cm from the front of the mic.

The diameter of the microphone is also key, as the fit must be tight in order to achieve a good seal. Rycote slip-on windshields come in two diameter fittings, Standard (19-22 mm) or Large (24-25 mm).

30/55 Mini Windjammer for foam

Product Code: 055376

Suitable for 30/55 Reporter Mic Foams

Main Benefits:

• Using both foam and windjammer together provides up to 20dB wind and pop
• Excellent resistance to moisture and UV light from the durable, high quality open-cell acoustic foam
• The Windjammer offers a further 12 dB wind noise attenuation

The Mini Windjammer for the 30/55 Reporter Mic Foam provides excellent wind isolation for capturing audio in high-wind environments. Made from high-quality synthetic fur specifically designed for wind isolation,  easy-to-fit slip-on fur covers for use when recording outside with the built-in microphones found on portable cameras, external camera mics and handheld reporter microphones.

Some of our Mini Windjammers have 10 mm fur, while others have 25 mm Softie fur for use in more unsettled conditions, and can be fitted to a wide variety of devices.

Note: This Mini Windjammer is specifically designed for the 30/55 Reporter Mic Foams.

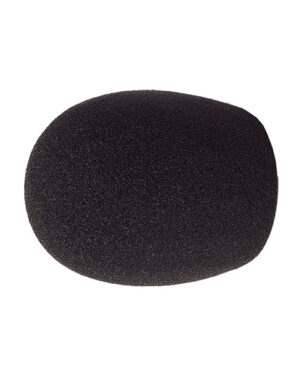

30/55 Reporter Mic Foam

Product Code: 104403

Suitable for reporter mics of 30 mm diameter, with slots no further than 55 mm from the front of the mic.

Main Benefits:

• Up to 10 dB wind and pop noise attenuation with minimal high-frequency loss from this discreet, slip-on windshield
• Excellent resistance to moisture and UV light from the durable, high quality open-cell acoustic foam

The Reporter Mic Foam is a discreet, slip-on foam windshield, designed to protect the microphone head against light wind and pop noise. Made of durable, high quality open-cell acoustic foam, these windshields offer up to 20 dB wind noise attenuation, whilst keeping high frequency loss to a minimum.

Engineered exclusively for Rycote, this high quality foam also provides excellent resistance against the damaging effects of moisture and UV light.

Additionally, you can now also benefit from a further 12 dB wind noise attenuation with Rycote’s Foam Windjammer, specifically designed to accommodate our range of Mic Foam windshields.
