Rycote

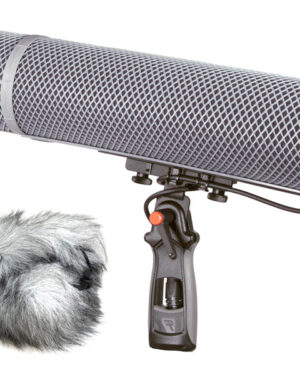

Modular Windshield WS 5 Kit

Product Code: 086005

The Modular Windshield 5 Kit is suitable for Shotgun microphones from 281mm up to 350mm in length and 19-34mm diameter with a 3-Pin XLR connector

Main Benefits:

• Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations
• The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology

The Modular Windshield Kit is the professionals’ choice when maximum isolation from wind and handling noise is required.

This complete modular system can be configured to allow almost any microphone to be shock-mounted and provided with varying degrees of windshielding. Components may be ordered separately, or as one of a series of kits, which simplify the selection process for many common configurations.A Modular Windshield Kit is comprised of the following three main components: Modular Suspension, Modular Windshield and Windjammer.

Modular Suspension

Our suspensions provides complete isolation against handling noise and cable-borne noises, by supporting the microphone in a cradle arrangement using Lyre suspension webs.

Windshield

The Windshield basket completely surrounds the microphone and its connector, sliding onto the Modular Suspension to provide up to 30dB of wind noise attenuation. This is the first layer of windshielding protection for your microphone.

Windjammer

The Windjammer introduced by Rycote in 1985, is high quality synthetic fur covers, designed to fit perfectly over the Modular Windshield. It gives an additional 20dB of wind noise attenuation. Fitted with a drawstring & toggle to allow snug and easy fitting. Modular Windshield Kits, including zipped Windjammer are also available on request.

Tech Specs

Windshield Body Length: 400mm (WS4 + Extension 70mm)
Total Windshield Length: 510mm (includes the End Caps)
Height of Windshield 100mm
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: XLR-3F
Max Wind-noise Attenuation: 50 dB

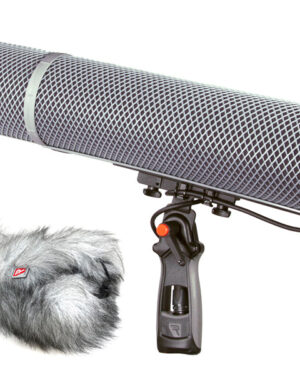

Modular Windshield WS 7 Kit

Product Code: 086007

The Modular Windshield 7 Kit is suitable for shotgun microphones from 401mm up to 450mm in length and 19-34mm diameter with a 3-pin XLR connector.

Main Benefits:

• Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations
• The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology

The Modular Windshield Kit is the professionals’ choice when maximum isolation from wind and handling noise is required.

This complete modular system can be configured to allow almost any microphone to be shock-mounted and provided with varying degrees of windshielding. Components may be ordered separately, or as one of a series of kits, which simplify the selection process for many common configurations.A Modular Windshield Kit is comprised of the following three main components: Modular Suspension, Modular Windshield and Windjammer.

Modular Suspension

Our suspensions provides complete isolation against handling noise and cable-borne noises, by supporting the microphone in a cradle arrangement using Lyre suspension webs.

Windshield

The Windshield basket completely surrounds the microphone and its connector, sliding onto the Modular Suspension to provide up to 30dB of wind noise attenuation. This is the first layer of windshielding protection for your microphone.

Windjammer

The Windjammer introduced by Rycote in 1985, is high quality synthetic fur covers, designed to fit perfectly over the Modular Windshield. It gives an additional 20dB of wind noise attenuation. Fitted with a drawstring & toggle to allow snug and easy fitting. Modular Windshield Kits, including zipped Windjammer are also available on request.

Tech Specs

The Modular Windshield 7 Kit is suitable for shotgun microphones from 401mm up to 450mm in length and 19-34mm diameter with a 3-pin XLR connector.

Windshield Body Length: 500mm (WS4 + Extension 170mm)
Total Windshield Length: 610mm (includes the End Caps)
Height of Windshield 100mm
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: XLR-3F
Max Wind-noise Attenuation: 50 dB

Modular Windshield WS 9 Kit (no CB)

Product Code: 086017

The Modular Windshield WS 9 kit is suitable for use with compact condenser mics when used with remote or active cables such as Schoeps CCM range (lemo) and Sennheiser MKH8000 range (MZL). Please note, this product is not supplied with a Connbox.

Main Benefits:

• Flexible, complete windshield and suspension package, which provides varying levels of windshielding for numerous microphone configurations
• The iconic Windshield Kit is the industry standard, and leads the way in windshielding and suspension technology

The Modular Windshield WS 9 Kit offers a unique and highly effective solution for compact condenser microphones requiring wind protection and maximum shock isolation. It completely surrounds the compact microphone, sliding onto the XX-Small Suspension to provide up to 25dB of wind noise attenuation. The wind attenuation performance is equivalent to a Rycote full sized Windshield yet in a much smaller and lighter package – only 170mm x 105mm including end caps.

High quality synthetic fur-cover Windjammer for WS 9 provides the highest possible protection against extreme wind-noise. When using a Windjammer fitted over a Windshield up to 35 dB of windnoise attenuation can be achieved, producing excellent exterior audio recordings.

Tech Specs

Windshield Body Length: 70mm
Total Windshield Length: 170 mm (includes the End Caps)
Height: Windshield 100mm
Windjammer Fur Length: 40mm
Windjammer Fur Colour: Grey
Microphone Connector: No Connbox supplied
Max Wind-noise Attenuation: 35 dB
