Showing 31–45 of 55 results
-
On camera monitors
PortKeys LEYE-SDI
The Portkeys LEYE is a versatile Electronic Viewfinder that features both 4K HDMI and FullHD 1080p 3G-SDI video inputs, all in a compact and lightweight package that can be powered externally or via a single Canon LP-E6 battery. This EVF features a 2.4″ LCD screen with a 1440 x 900 resolution, making it the perfect EVF for mirrorless cameras, while its SDI input makes it a versatile tool so that you can use it on a wide variety of other cameras.
Key features:
- Compact size: 125 x 70 x 78mm / 4.92 x 2.75 x 3.07in.
- Lightweight and rugged housing: only 265g/9.34oz.
- 2.4-inch, 8-bit panel with a 1440 x 900 resolution and 1100:1 contrast ratio.
- Maximum brightness of 450nits.
- 1 x 4K HDMI input, 1 x 3G-SDI input., 1 x 3.5mm audio output.
- Adjustable Red Oak diopter ring with a -3 to +8 diopter range.
- Professional monitoring tools: Waveform, Histogram, Vectorscope, Peaking, False Color.
- 3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
- Built-in Canon LP-E6 battery plate.
- 4-pin 7.4V-24V power input for external power (D-Tap cable included)
- Low power draw: only 5W.

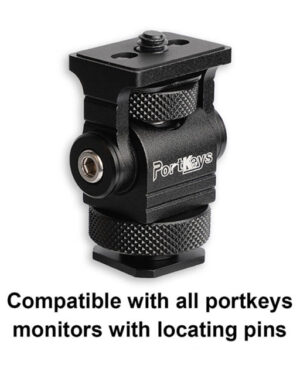

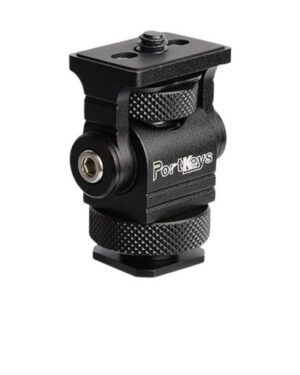

- Multiple 1/4″-20 mounting points with locating pins and built-in NATO rail.
SKU: PKY-PK-LEYE-SDI -
On camera monitors
PortKeys LH5P II
The Portkeys LH5P II is the most affordable 5.5-inch Wide Color Gamut on-camera monitor with a stunning maximum brightness of 2,200nits and wired/wireless camera control capabilities. This HDMI-only monitor features a rugged and durable design entirely made of aluminum with a complete set of professional monitoring tools ready for your next creative adventures.
Key features:
- 5.5-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
- Daylight-viewable with a maximum brightness of 2,200nits.
- 1 x HDMI input, 1 x HDMI output, 1 x 3.5mm audio output.
- Maximum input resolution: 4K DCI at 24p or 4K UHD at 30p.
- Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color.
- 3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
- Wireless camera control for most Sony and Blackmagic Design cameras.
- Touchscreen autofocus (wireless) feature is available for select Sony cameras, including the FX3, a7S III, and A7C.
- Wired camera control for Sony, Canon, Panasonic, BMD, and ZCAM E2.
- TILTA Nucleus N/M wireless follow focus wired control.
- Built-in Sony NP-F style battery plate.
- 5-pin 7.4V-24V power input for external power .
- Lightweight and rugged aluminum housing: only 285g/10.05oz.
SKU: PKY-PK-LH5P-II -
On camera monitors
PortKeys LH7P
The Portkeys LH7P features a 7-inch touchscreen monitor with 1,000 nits of brightness, HDMI input and output ports, a professional set of monitoring features, and wireless camera control capabilities compatible with multiple Sony and Blackmagic Design cameras.
Key features:
- 7-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
- Daylight-viewable with a maximum brightness of 1,000nits.
- Supports 4K oversampling to 1080p.
- Professional monitoring tools: Waveform, Vectorscope, Anamorphic, Peaking, ARRI False Color.
- Four user-assignable function buttons.
- Built-in Sony NP-F style battery plate. Low power draw of only 9W.
- Customized peaking range(Peaking Frame).
- Custom JPG picture custom freeze frame.
- Custom rectangular image crop.
- Wireless camera control for Sony and Blackmagic Design cameras.
- Lightweight: only 245g/8.6oz.
SKU: PKY-PK-LH7P-B -
-
Production monitors
PortKeys MT22
MT22 is a 21.5-inch high brightness production monitor with 1000 nit brightness, 1920*1080 resolution, 3000:1 contrast ratio, achieving 10-bit color depth through FRC technology.
It is a large monitor with HLG function that can monitor richer colors and details of the picture.
SKU: PKY-PK-MT22-DS -
-
On camera monitors
PortKeys PT5 II
The Portkeys PT5 II is an entry-level and very affordable 5-inch Wide Color Gamut touchscreen on-camera monitor. This HDMI-only monitor has a maximum brightness of 500nits and can be powered for hours by Sony NP-F or Canon LP-E6 batteries. Ready for your next creative adventures, the compact and rugged design houses a complete set of professional monitoring tools
Key features:
- 5-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
- Maximum brightness of 500nits.
- 1 x HDMI input, 1 x HDMI output, 1 x 3.5mm audio output.
- Maximum input/output resolutions: 4K DCI at 24p or 4K UHD at 30p.
- Professional monitoring tools: Waveform, Histogram, Vectorscope, Peaking, False Color.
- 3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
- The dual battery plate accepts Sony NP-F or Canon LP-E6 batteries.
- 5.5mm barrel connector 7.4V-24V power input. 5V USB-A power input.
- Low power draw: only 7W.
- Lightweight and rugged aluminum housing: only 150g/5.29oz.
SKU: PKY-PK-PT5-II -
On camera monitors
PortKeys PT6
The Portkeys PT6 is a professional entry-level 5.2-inch on-camera monitor with 600nits of brightness, 100% coverage of DCI-P3 color space, HDMI input and output ports, and 3D-LUT output capabilities.
Key features:
- 5.2-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1500:1 contrast ratio.
- Maximum brightness of 600nits, 100% DCI-P3 coverage.
- 1 x 4K HDMI input, 1 x HDMI input.
- Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color.
- 3D LUT monitoring and 3D LUT HDMI output capabilities.
- Built-in Sony NP-F and Canon LP-E6 style battery plate.
- 5.5mm barrel connector 7.4V-24V power input. 5V USB-A power input.
- Low power draw: only 6W.
- Lightweight and rugged ABS + PC housing: only 170g/6.0oz.
SKU: PKY-PK-PT6 -
Monitor screen accessories
PortKeys Screen Protector
Portkeys Tempered Glass LCD Screen Protector is designed to protect your 5.5-inch display from dust, dirt, and scratches. Compatible with BM5WR/BM5III/LH5P high brightness camera control monitor.
* 2 pieces of transparent screen protector
*Only applicable to 5.5-inch monitor
SKU: PKY-PK-SCREEN-PROTECTOR
