Showing 1–15 of 21 results
-
Power supplies and AC adapters
Mean Well GST120A12-R7B Desktop Power Supply 102W 12V 8.5A 2.1mm Plug
Output DC voltage is 12V, rated current is 8.5A, rated power is 102W
Input voltage range from 85 to 264VAC, 120 to 370VDC, efficiency is 88.5%
Universal AC input / full range, built-in active PFC function
3 pole AC inlet IEC320-C14, class I power unit
Fully enclosed plastic case, LED indicator for power on
Working temperature range from -30 to +70°
3 years warranty
Dimension (L x W x H) is 167 x 67 x 35mmSKU: MWL-GST120A12-R7B -
Power supplies and AC adapters
Mean Well GST120A15-R7B Desktop Power Supply 105W 15V 7A 2.1mm Plug
Universal AC input/full range
3-pole AC inlet IEC320-C14
Built-in active PFC function
No load power consumption 0.15W
Energy efficiency Level VI
Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS,EU ErP and CoC Version 5
Class I power (with earth pin)
Protections: Short circuit/Overload/Over-voltage
/Over-temperature
Fanless design with -30 to +70°C working temperature
Fully enclosed plastic case
LED indicator for power on
3 years warrantySKU: MWL-GST120A15-R7B -
Power supplies and AC adapters
Mean Well GST120A24-R7B Desktop Power Supply 120W 24V 5A 2.1mm Plug
Input voltage range from 85 to 264VAC, 120 to 370VDC, output DC voltage is 24V
Output rated current is 5A, output rated power is 120W(max)
Typical efficiency is 90.5%(R7B), 89.5%(P1M)
Plug for 12 to 48V, power DIN 4pin with lock type(standard)
Universal AC input / full range, 3 pole AC inlet IEC320-C14
Built-in active PFC function, energy efficiency level VI, high reliable
LED indicator for power on
3 years warranty
Working temperature range from -30 to +70°C
Dimension is (L x W x H) 167 x 67 x 35mmSKU: MWL-GST120A24-R7B -
Power supplies and AC adapters
Mean Well GST160A12-R7B Desktop Power Supply 138W 12V 11.5A 2.1mm Plug
Power supplies and AC adaptersMean Well GST160A12-R7B Desktop Power Supply 138W 12V 11.5A 2.1mm Plug
Universal AC input/full range
3-pole AC inlet IEC320-C14
Built-in active PFC function
No load power consumption 0.15W
Energy efficiency Level VI
Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS,EU ErP and CoC Version 5
Class I power (with earth pin)
Protections: Short ircuit/Overload/Over-voltage
/Over-temperature
Fanless design with -30 to +70°C working temperature
Fully enclosed plastic case
LED indicator for power on
3 years warrantySKU: MWL-GST160A12-R7B -
Power supplies and AC adapters
Mean Well GST160A15-R7B Desktop Power Supply 144W 15V 9.6A 2.1mm Plug
Universal AC input / Full range
3 pole AC inlet lEC320-C14
Built-in active PFC function
No load power consumption<0.15W
Energy efficiency Level Vl
Comply with ElSA 2007/DoE,NRCan,
AU/NZ MEPS,EU ErP and CoC Version 5
Class-power (with earth pin)
Protections: Short circuit / Overload / Over voltage
/ Over temperature
Fanless design with -30~+70° working temperature
Fully enclosed plastic case
LED indicator for power on
3 years warrantySKU: MWL-GST160A15-R7B -
Power supplies and AC adapters
Mean Well GST160A24-R7B Desktop Power Supply 160W 24V 6.67A 2.1mm Plug
Power supplies and AC adaptersMean Well GST160A24-R7B Desktop Power Supply 160W 24V 6.67A 2.1mm Plug
Input voltage range from 85 to 264VAC, 120 to 370VDC, output DC voltage is 24V
Output rated current is 6.67A, output rated power is 160W(max), typical efficiency is 93%
Standard model, power DIN 4Pin with lock type
Global certificates, universal AC input / full range, highly reliable
Built-in active PFC function
Energy efficiency level VI, LED indicator for power on
3 years warranty
Working temperature range from -30 to +70°C
Dimension is (L x W x H) 175 x 72 x 35mmSKU: MWL-GST160A24-R7B -
Power supplies and AC adapters
Mean Well GST220A12-R7B Desktop Power Supply 180W 12V 15A 2.1mm Plug
Universal AC input/full range
3-pole AC inlet IEC320-C14
Built-in active PFC function
No load power consumption 0.15W
Energy efficiency Level VI
Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS,EU ErP and CoC Version 5
Class I power (with earth pin)
Protections: Short circuit/Overload/Over-voltage
/Over-temperature
Fanless design with -30 to +70°C working temperature
Fully enclosed plastic case
LED indicator for power on
3 years warrantySKU: MWL-GST220A12-R7B -
Power supplies and AC adapters
Mean Well GST220A15-R7B Desktop Power Supply 201W 15V 13.4A 2.1mm Plug
Power supplies and AC adaptersMean Well GST220A15-R7B Desktop Power Supply 201W 15V 13.4A 2.1mm Plug
Universal AC input / Full range
3 pole AC inlet lEC320-C14
Built-in active PFC function
No load power consumption<0.15W
Energy efficiency Level Vl
Comply with ElSA 2007/DoE,NRCan,
AU/NZ MEPS,EU ErP and CoC Version 5
Class-power (with earth pin)
Protections: Short circuit / Overload / Over voltage
/Over temperature
Fanless design with -30~+70° working temperature
Fully enclosed plastic case
LED indicator for power on
3 years warrantySKU: MWL-GST220A15-R7B -
Power supplies and AC adapters
Mean Well GST220A24-R7B Desktop Power Supply 221W 24V 9.2A 2.1mm Plug
Input voltage range from 85 to 264VAC, 120 to 370VDC, output DC voltage is 24V
Output rated current is 9.2A, output rated power is 221W(max), typical efficiency is 93.5%
Standard model, power DIN 4Pin with lock type
Global certificates, universal AC input / full range, highly reliable
Built-in active PFC function
Energy efficiency level VI, LED indicator for power on
3 years warranty
Working temperature range from -30 to +70°C
Dimension is (L x W x H) 210 x 85 x 46mmSKU: MWL-GST220A24-R7B -
Power supplies and AC adapters
Mean Well GST280A12-C6P Desktop Power Supply 252W 12V 21A 6-pin Connector
Power supplies and AC adaptersMean Well GST280A12-C6P Desktop Power Supply 252W 12V 21A 6-pin Connector
Universal AC input/full range
3-pole AC inlet IEC320-C14
Built-in active PFC function
No load power consumption 0.15W
Energy efficiency Level VI
Comply with EISA 2007/DoE, NRCan, AU/NZ MEPS,EU ErP and CoC Version 5
Class I power (with earth pin)
Protections: Short ircuit/Overload/Over-voltage
/Over-temperature
Fanless design with -30 to +70°C working temperature
Fully enclosed plastic case
LED indicator for power on
3 years warrantySKU: MWL-GST280A12-C6P -
Power supplies and AC adapters
Mean Well GST280A15-C6P Desktop Power Supply 255W 15V 17A 6-pin Connector
Power supplies and AC adaptersMean Well GST280A15-C6P Desktop Power Supply 255W 15V 17A 6-pin Connector
Universal AC input / Full range
3 pole AC inlet lEC320-C14
Built-in active PFC function
No load power consumption<0.5W
Energy efficiency Level Vl
Comply with ElSA 2007/DoE,NRCan,
AU/NZ MEPS,EU ErP
Class-power (with earth pin)
Protections: Short circuit / Overload / Over voltage /
Over temperature
Fanless design with -30~+70° working temperature
Fully enclosed plastic case
LED indicator for power on
3 years warrantySKU: MWL-GST280A15-C6P -
Power supplies and AC adapters
Mean Well GST280A24-C6P Desktop Power Supply 280W 24V 11.67A 6-pin Connector
Power supplies and AC adaptersMean Well GST280A24-C6P Desktop Power Supply 280W 24V 11.67A 6-pin Connector
Input voltage range from 85 to 264VAC, 120 to 370VDC, output DC voltage is 24V
Output rated current is 11.67A, output rated power is 280.08W(max), typical efficiency is 93%
Standard model, 6 pin connector
Global certificates, universal AC input / full range, highly reliable
Built-in active PFC function, energy efficiency level VI
LED indicator for power on
3 years warranty
Working temperature range from -30 to +70°C
Dimension is (L x W x H) 220 x 95 x 46mmSKU: MWL-GST280A24-C6P -
Power supplies and AC adapters
Mean Well GST60A12-P1J Desktop Power Supply 60W 12V 5A 2.1mm Plug
Short circuit, overload and over voltage protected
3 pole AC inlet IEC320-C14, class I power unit
Energy efficiency level VI
Fully enclosed plastic case
LED indicator for power on
Mains lead sold separatelySKU: MWL-GST60A12-P1J -
Power supplies and AC adapters

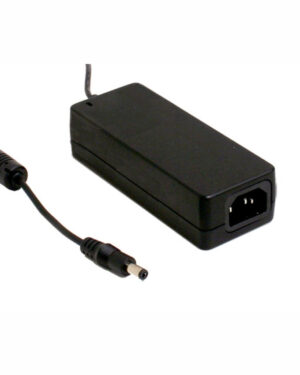

Mean Well GST60A15-P1J Desktop Power Supply 60W 15V 4A 2.1mm Plug
Short circuit, overload and over voltage protected
3 pole AC inlet IEC320-C14, class I power unit
Energy efficiency level VI
Fully enclosed plastic case
LED indicator for power on
Mains lead sold separatelySKU: MWL-GST60A15-P1J -
Power supplies and AC adapters
Mean Well GST60A24-P1J Desktop Power Supply 60W 24V 2.5A 2.1mm Plug
Short circuit, overload and over voltage protected
3 pole AC inlet IEC320-C14, class I power unit
Energy efficiency level VI
Fully enclosed plastic case
LED indicator for power on
Mains lead sold separatelySKU: MWL-GST60A24-P1J
