Showing 121–135 of 233 results
-
Enlargers and copy stands
Kaiser Fototechnik 4540 B & W Enlarger VP 9005 SYSTEM-V
B & W enlarger for all film formats up to 6 x 9 cm (2.4 x 3.5 in.) and lenses up to 105 mm focal length.
- Compound negative carrier fitted with Anti-Newton glass on top and flat glass on bottom, additional format mask 6 x 7 cm.
- Focusing with additional fine drive.
- Height adjustment with weight compensation by a roll-off spring mechanism.
- Filter holder for square filters and framed Multigrade filters, can be swung out and adjusted in height, with diffusor plate for integral metering.
- Baseboard (WxDxH): approx. 600 x 500 x 32 mm (23.6 x 19.7 x 1.3 in.)
B & W Enlargers SYSTEM-V
General specifications:- Lamp head with 75 W opal lamp, lamp adjustable.
- Exchangeable double condensor system.
- Filter drawer for e.g. Multigrade Filter.
- Removable compound negative carrier with interchangeable inserts, adjustable masking strips, adjustable film stops and grid pins.
- Lens stage with spirit level and red filter, tiltable for distortion correction on Scheimpflug principle.
- Quick change attachment for lenses.
- Height adjustment by hand-crank operated friction drive on plastic bearings.
- Wall and floor projection possible.
- Wide, vibration-resistant column of embossed aluminium tubing, with dull black anodized surface, cm and inch scales and markings for enlarging scales.
- Matt-gray laminated baseboard with individually height-adjustable feet.
- Spirit level on column base.
Technical specifications:
Lamp: Opal lamp 75 W, E 27 socket
Cord: approx. 2.50 m (8 ft. 2 in.)
Filter drawer: 85 x 85 mm (3.3 x 3.3 in.)
Column (HxWxD): approx. 1000 x 70 x 35 mm (39.4 x 2.8 x 1.4 in.)
Distance between optical axis and column base: approx. 220 mm (8.7 in.)
Can be converted into a copy stand.
Scope of supply: Incl. compound negative carrier, lamp, two lens holder rings and dust hood, without lens.
(Replacement lamp: 4356)
SKU: KFO-KF-4540 -
Enlargers and copy stands
Kaiser Fototechnik 4541 B & W Head SYSTEM-V
Suitable for all Kaiser enlargers.
- Lamp adjustable.
- Drawer for additional filters.
- Supplied with opal lamp.
- Specifications:
- Lamp: Opal lamp, 75 W
- Filter drawer: 85 x 85 mm (3.3 x 3.3 in.)
- Cord: approx. 2,5 m (8.2 ft.) with cord switch
- Dimensions: 145 x 150 x 245 mm (WxHxD) (5.7 x 5.9 x 9.6 in.)
(Replacement lamp: 4356)
SKU: KFO-KF-4541 -
Enlargers and copy stands
Kaiser Fototechnik 4542 Double Condenser
For SYSTEM-V enlargers. Simple fitting with two coin screws on the enlarger head lower part 4568.
4449: for formats up to 6 x 9 cm (2.4 x 3.5 in.).
Fits all enlargers made from 10/94 on (05 series).4542: for formats up to 6 x 6 cm (2.4 x 2.4 in.)
4443: for formats up to 24 x 36 mm (35 mm)
SKU: KFO-KF-4542 -
Enlargers and copy stands
Kaiser Fototechnik 4583 Compound Negative Carrier
For use with all negative masks and glass inserts size 100 x 72,5 mm (3.9 x 2.9 in.). Suitable for all SYSTEM-V enlargers made from 10/94 on (05 series).
- Adjustable guide pins for film widths 61.5 mm (rollfilm 120), 41 mm (rollfilm 127) and 35 mm film.
- Four steplessly adjustable masking strips for selecting the desired detail.
- Two grid pins at standard hole intervals.
- Dimensions: approx. 142 x 37 x 123 mm (5.6 x 1.4 x 4.8 in.)
SKU: KFO-KF-4583 -
Enlargers and copy stands
Kaiser Fototechnik 4584 Compound Negative Carrier
For mounted 6 x 6 slides with outer dimensions 7 x 7 cm (2.8 x 2.8 in.). Suitable for all SYSTEM-V enlargers made form 10/94 on (05 series). Four steplessly adjustable masking strips for selecting the desired detail.
Dimensions: approx. 142 x 37 x 123 mm (5.6 x 1.4 x 4.8 in.)
SKU: KFO-KF-4584 -
Darkroom accessories

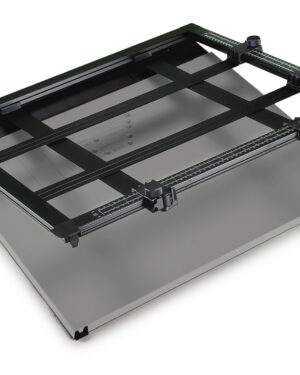

Kaiser Fototechnik 4704 “promask” Professional Masking Frame
- Margin stop with preclamping device, format markings and sinkable grid pins for centered positioning of photo paper.
- Grid pins at standard hole intervals.
- Frame made of non-warping moulded aluminium.
- Scales in cm and inch.
- Pneumatic spring with end position damping.
- Raised frame stays open.
- Four sliding masking strips with fast adjustment and fine setting by friction drive, lockable.
- Border width adjustable from 2 to 45 mm (0.08 to 1.8 in.). Each strip is individually adjustable.
- Light grey base plate.
For formats up to 30 x 40 cm (12 x 16 in.)
Dimensions: 630 x 70 x 515 mm (24.8 x 2.8 x 18.4 in.)SKU: KFO-KF-4704 -
Enlargers and copy stands

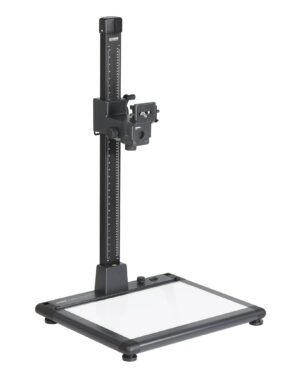

Kaiser Fototechnik 5215 Copylizer exe.cutive LED
Camera stand with integrated transmitted light source.
- Illumina base plate with 270 SMD LEDs, 5600 Kelvin daylight, color rendering index (CRI) = 95
- Serviceable illuminated area 50.6 x 36 cm (19.9 x 14.2 in., > tabloid format), illuminance approx. 8300 cd/m?, brightness continuously dimmable, flicker-free operation.
- Mounting fixtures for optional RB 5270 DX (5278) and RB 525 AS (5284) surface lighting units.
- Height-adjustable feet.
- Base with spirit level.
- 70 mm (2.8 in) wide high-stability, vibration-resistant column made of special aluminum tubing, matt black anodized, with cm and inch scales.
- Hand-crank operated height adjustment of camera arm by friction drive on plastic bearings.
- Weight compensation by integrated coil spring.
- RTP camera arm with horizontally adjustable camera platform, camera body positioning device and interchangeable 1/4? and 3/8? threads.
- Illumina base (WxD):?63 x 55 cm (24.8 x 21.7 in.)
- Column height:?1 m (40 in.)
- Max. load:?approx. 4 kg (8.8 lbs.)
Accessories
5278 – RB 5270 DX Copylizer Lighting Unit
5292 – Pressure Plate for Copylizer and Illumina Base exe.cutive
5294 – Metal Plate for Copylizer and Illumina Base exe.cutive
SKU: KFO-KF-5215 -
Enlargers and copy stands
Kaiser Fototechnik 5244 Illumina base plate exe.cutive LED
Can be combined with components of the Kaiser R1 system.
- Trans-illuminator with 270 SMD LEDs, 5600 Kelvin daylight, color rendering index (CRI) = 95, serviceable illuminated area 50.6 x 36 cm (19.9 x 14.2 in., > tabloid format), illuminance approx. 8300 cd/m_, brightness continuously dimmable, flicker-free operation.
- Mounting fixtures for optional RB 5270 DX (5278) and RB 525 AS (5284) surface lighting units.
- Height-adjustable feet.
- Column base with spirit level for 70 mm (2.8″) wide column.
- Dust hood for column included.
- Outside dimensions (WxD): approx. 63 x 55 cm (24.8 x 21.6 in.)
SKU: KFO-KF-5244 -
Enlargers and copy stands

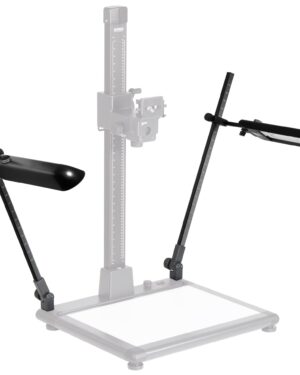

Kaiser Fototechnik 5278 LED Copylizer Lighting Unit
LED reflected light illuminating unit for Copylizer (5215) and exe.cutive LED Illumina Base Plate (5244) with two light banks for even and soft illumination.
- Each light equipped with 161 selected white SMD LEDs.
- Emitted light has absolutely no IR and UV content.
- DC operation provides for flicker free light without residual ripple.
- Lights continuously dimmable, separately or in conjunction.
- Removable diffusing cover (5466).
- Lights can be tilted, swiveled and adjusted in height.
- Vertical lamp arms with height markings, tiltable with detents.
- Attaches to Copylizer/Illumina Base Plate with articulated joint bases.
- Comes with mains adapter.
Specs
- LED array: 2 x 161 SMD LEDs
- Color temperature: approx. 6000 K
Color rendering index: CRI > 93 - Angle of radiation: 110?
- Max. illumination* w/o diffusing cover: 3000 lux
??????????????????????????????? with diffusing cover: 2400 lux
*measured with highest possible evenness of illumination of a 16.5 x 11.5? flat subject - Power consumption: 2 x 27 W
- Operating voltage: 12 V
- Light emitting area of one light: 33 x 8.5 cm (13 x 3.3 in.)
- The RB 5270 DX Copylizer Lighting Unit can also be attached as a reflected light illuminating set to the “TopTable PRO” Basic Support (5921).
Accessories
Downloads
SKU: KFO-KF-5278 -
Enlargers and copy stands

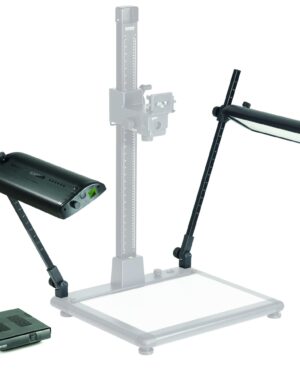

Kaiser Fototechnik 5284 RB 525 AS Copylizer Lighting Unit
LED surface lighting unit with thermo-management, consisting of two light banks for even and soft illumination. Suitable for Copylizer exe.cutive LED (5215) and Illumina Base?exe.cutive LED (5244). Can also be used as surface lighting unit for TopTable PRO shooting table (5921).
The efficiency of LEDs is much higher than that of conventional light sources. However, because LEDs also convert energy into heat, a thermal management system is necessary for optimal reproducibility, as otherwise both brightness and color temperature would change as the temperature rises.
The integrated thermo-management ensures that the adjusted brightness as well as the color temperature always remain constant, regardless of the room and unit temperature, thus achieving reproducible results. In addition, the LEDs have a longer service life.
This thermo-management includes both sensor-controlled temperature monitoring with dynamic compensation control and elaborate passive cooling via LED board and aluminum housing.
Each light equipped with 192 selected white SMD LEDs, 5600 Kelvin, CRI = 95. Emitted light has absolutely no IR and UV content, is flicker free without residual ripple. Lights can be dimmed separately or synchronously in 1 %-steps from 10 % up to 100 %. Illuminated info screen.
The light intensity of the two LED panels is matched to each other. This results in precisely homogeneous illumination with symmetrical alignment of the two light banks.
Memory function: The copy lighting starts with the brightness that was set before the last switch-off.
Lamp housings made of sturdy anodized aluminum section, can be swiveled, shifted and adjusted in height. Detachable soft screens. Vertical arms with height markings, tiltable with detents. Mounted with strong articulated joint bases. Comes with mains adapter.
Specifications:
Lights
LED arrays: 2 x 192 SMD LEDs
Color temperature: 5600 K
Color rendition index: CRI = 95
LED angle of radiation: 100?
Max. illumination* with soft screen: 4600 lux
?? ??????????????????????????w/o soft screen: 5200 lux
* based on uniform illumination of a 16.5 x 11.5 in. flat subjectPower consumption: 2 x ? 28 W
Operating voltage: 24 V
Light emitting area of one light: 39 x 16.5 cm (15.4 x 6.5 in.)
Vertical arms: 76 cm (29.9 in.) length / 20 x 20 mm (0.8 x 0.8 in.) edge dimensionMains adapter
Input: 100-240 V, 50/60 Hz
Output: 24 V, 3 A
Mains lead: approx. 2.50 m (8.2 ft.)Accessories
Subject to errors and technical changes.
This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
SKU: KFO-KF-5284 -
Enlargers and copy stands

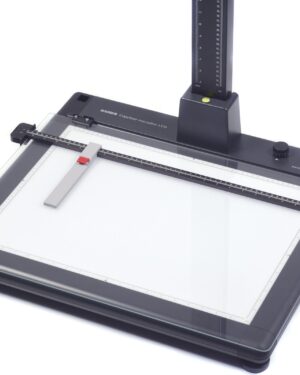

Kaiser Fototechnik 5292 Glass Plate
For Copylizer exe.cutive and exe.cutive illumina base plates.
Made of high-quality crystal glass to press “wavy” originals. Can be fitted to the hinge of the illumina base and is easily lifted. With adjustable stop guides.SKU: KFO-KF-5292 -
Enlargers and copy stands

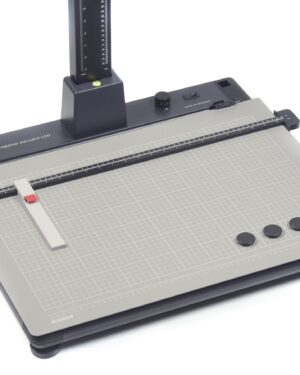

Kaiser Fototechnik 5294 Metal Baseplate
For Copylizer exe.cutive and exe.cutive illumina base plates.
For holding originals with magnetic holders (four included) and as a protective cover of the acrylic glass plate. Can be fitted to the hinge of the illumina base and is easily lifted. With printed grid for positioning and adjustable stop guides.SKU: KFO-KF-5294 -
Enlargers and copy stands

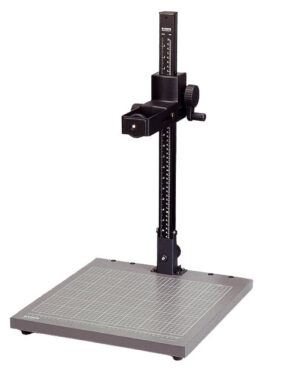

Kaiser Fototechnik 5301 Foldable Copy Stand RS 2 CP
Portable camera stand.
- Non-reflective matt grey baseboard with printed fine grid and cm/inch scale.
- Mattblack anodised aluminum section tube column with cm/inch scale.
- Hand-cranked height adjustment by friction drive in plastic bearings.
- With horizontally adjustable camera arm to change the distance to the column, moves approx. 7 cm (2.7 in.) back and forth. 1/4? mounting thread.
- Column folds down on baseboard.?
- Baseboard (WxHxD):?approx. 400 x 25 x 420 mm (15.7 x 1 x 16.5 in.)
- Column height:?approx.?60 cm (23.6 in.)
- Maximum load:?1.5 kg (3.3 lbs)?
- Comes in strong carrying case 67 x?47 x 23 cm (24.4 x 22.8 x 8.3 in.) with handle and shoulder strap.
Accessories
SKU: KFO-KF-5301 -
Enlargers and copy stands

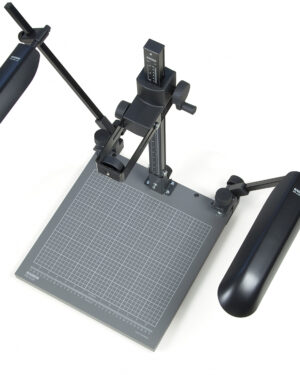

Kaiser Fototechnik 5304 Copy Stand RS 2 NCP
Portable copy stand with RB 218N HF Lighting Unit (5464).
- Non-reflective matt grey baseboard with printed fine grid and cm/inch scale.
- Matt-black anodised aluminium section tube column with cm/inch scale.
- Hand-cranked height adjustment by friction drive in plastic bearings.
- With horizontally adjustable camera arm to change the distance to the column, moves approx. 7 cm (2.7 in.) back and forth. 1/4? mounting thread.
- Column folds down on baseboard.
- Baseboard (WxHxD): approx. 400 x 25 x 420 mm (15.7 x 1 x 16.5 in.)
- Column height: approx. 60 cm (23.6 in.)
- Maximum load: 1.5 kg (3.3 lbs)
- RB 218N HF Lighting unit with an all-electronic high-frequency operating system (approx. 40 kHz) for immediate ignition and flicker-free operation.
- Two small light banks, each equipped with a cold light fluorescent lamp, tiltable and adjustable in height.
- Angle of vertical arms adjustable by lock joint.
- Mounted with strong die-cast clamp bases.
- Clamp width 48 mm (1.9 in.)
- Lamps: 2 x 18 watt
- Color temperature: 5400 K
- CRI: 90-100
- Replacement lamp: 5458
- Comes in strong carrying case 67 x?47 x?23 cm (26.4 x?18.5 x 9.0 in.) with handle and shoulder strap.
Accessories
?
SKU: KFO-KF-5304
