Enlargers and copy stands

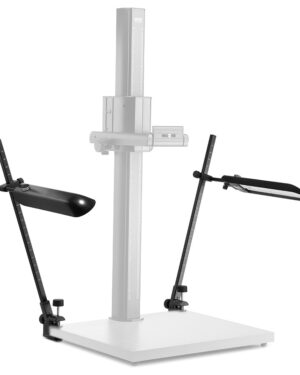

Kaiser Fototechnik 5551 LED RB 550 AS Lighting Unit
LED daylight lighting unit with two light banks for even and soft illumination.
- Each light equipped with 192 selected white SMD LEDs.
- Emitted light has absolutely no IR and UV content, is flicker free without residual ripple.
- Lights can be dimmed separately or synchronously in 1 %-steps from 10 % up to 100 %.
- Illuminated display.
- Lamp body made of sturdy anodized aluminum section, can be swiveled, shifted and adjusted in height.
- Detachable soft screens.
- Vertical lamp arms with height markings, tiltable with detents.
- Mounted with strong die-cast clamp bases, clamp width up to 48 mm (1.9 in.).
- Comes with mains adapter.
Specifications:
- LED array: 2 x 192 SMD LEDs
- Color temperature: 5600 K
- Color rendering index: CRI=95
- LED angle of radiation: 100?
- Max. illumination* with soft screen: 5000 lux
- w/o soft screen: 5600 lux
- Max. power of LEDs: 2 x 38.4 W
- Operating voltage: 24 V
- Light emitting area of one light: 41.5 x 16.5 cm (16.3 x 6.5 in).
*measured with highest possible evenness of illumination of a 16.5 x 11.5? flat subject
The RB 550 AS lighting unit is suitable for copy stands of the R1 System and RD system (5602, 5603).
SKU: KFO-KF-5551 -
-
-
Enlargers and copy stands

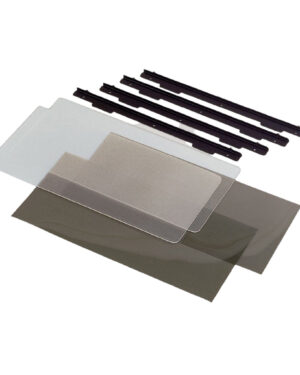

Kaiser Fototechnik 5582 Filter Holders (2 pairs)
Guiding rails for slide-in filters (Diffusion Screens 5583 respectively 5593 and Polarizers 5594). 2 pairs.
5582: For reflector size 50 x 21 cm (19.7 x 8.3 in.)
(Lighting Units 5556, 5557, 5558, 5588 and 5868)5592: For reflector size 64 x 21 cm (25.2 x 8.3 in.)
(Lighting Units 5589, 5590, 5591, 5595, 5656)SKU: KFO-KF-5582 -
Enlargers and copy stands
Kaiser Fototechnik 5583 Diffusing screens (pair)
Fine-structured acrylic glass.
Mounts to Kaiser lighting units in connection with 5582 / 5592 Filter Holders. 2 pieces.
5583: For reflector size 50 x 21 cm (19.7 x 8.3 in.)
(Lighting Units 5556, 5557, 5558, 5588 and 5868)5593: For reflector size 64 x 21 cm (25.2 x 8.3 in.)
(Lighting Units 5589, 5590, 5591, 5595, 5656)SKU: KFO-KF-5583 -
Enlargers and copy stands

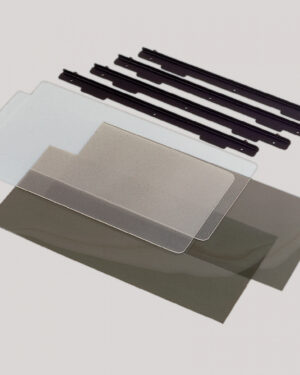

Kaiser Fototechnik 5592 Filter Holders (2 pairs)
Guiding rails for slide-in filters (Diffusion Screens 5583 respectively 5593 and Polarizers 5594). 2 pairs.
5582: For reflector size 50 x 21 cm (19.7 x 8.3 in.)
(Lighting Units 5556, 5557, 5558, 5588 and 5868)5592: For reflector size 64 x 21 cm (25.2 x 8.3 in.)
(Lighting Units 5589, 5590, 5591, 5595, 5656, 5657)SKU: KFO-KF-5592 -
Enlargers and copy stands
Kaiser Fototechnik 5593 Diffusing Screens (pair)
Fine-structured acrylic glass. ?Mounts to Kaiser lighting units in connection with?5582 / 5592 Filter Holders. 2 pieces.
5583: For reflector size 50 x 21 cm (19.7 x 8.3 in.)?
(Lighting Units?5556, 5557, 5558,?5588 and 5868)
??
5593: For reflector size 64 x 21 cm (25.2 x 8.3 in.)?
(Lighting Units 5589, 5590, 5591,?5595,?5656, 5657)SKU: KFO-KF-5593 -
Enlargers and copy stands
Kaiser Fototechnik 5594 Polarisation Foils (pair)
Eliminates and reduces reflections on non-metallic surfaces (e.g. glass, plastics,? lacquer, oil paintings) when copying.
- In addition a polarizing filter has to be used in front of the camera lens.
- Mounts to Kaiser lighting units in connection with?5582 / 5592 Filter Holders. 2 pieces.
- For reflector size 50 x 21 cm (19.7 x 8.3 in.) (Lighting Units?5556, 5557, 5558,?5588 and 5868) and?for reflector size 64 x 21 cm (25.2 x 8.3 in.) (Lighting Units 5589, 5590, 5591,?5595,?5656, 5657).
- Dimensions: 64 x 21 cm (25.2 x 8.3 in.), can be trimmed to?
50 x 21 cm (19.7 x 8.3 in.).?
SKU: KFO-KF-5594 -
Enlargers and copy stands
Kaiser Fototechnik 5600 RSD mot Copy Stand
- Column made of special aluminium multi-section tubing, matt black anodised, with cm and inch scales.
- Camera carrier made of aluminum section, can be horizontally adjusted over approx. 25 cm (9.8 in.) with rack-and-pinion parallel guides.
- Left hand/right hand operation, two blocking screws prevent inadvertent changing of the adjusted position.
- Camera mounting plate tiltable by ? 90?. Connecting screw horizontally adjustable. Height adjustment motorized, with two speeds.
- Cable remote control.
- Constant adjustment speed, independent of load.
- Automatic end switch by magnet sensor.
- Large non-reflecting matt grey base plate with printed grid, cm and inch scales.
- Feet adjustable in height.
- Spirit level.
??????? Specifications:
- Base plate (WxHxD): 900 x 38 x 730 mm (35.4 x 1.5 x 28.7 in.)
- Height of column: 1.80 m (5.9 ft.)
- Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
- Loading capacity: 8 kg (17.6 lbs.)
- Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
- Reversing mounting thread: 1/4? / 3/8? changeable
Subject to errors and technical changes
SKU: KFO-KF-5600 -
Enlargers and copy stands

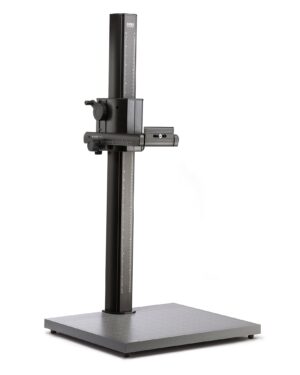

Kaiser Fototechnik 5602 RSD Copy Stand
Column made of special aluminum multisection tubing, matt black anodized, with cm and inch scales.
- Camera carrier made of aluminum section, can be horizontally adjusted over approx. 16 cm (6.3 in.) with rack-and-pinion parallel guides.
- Left hand/right hand operation, two blocking screws prevent inadvertent changing of the adjusted position.
- Camera mounting plate tiltable by ? 90?.
- Connecting screw horizontally adjustable.
- Height adjustment with hand crank (5602) or motorized (5603).
- Large non-reflecting matt grey base plate with printed grid, cm and inch scales.
- Feet adjustable in height.
- Spirit level.
Specifications
- Base plate (WxHxD): 680 x 38 x 570 mm (26.8 x 1.5 x 22.4 in.)
- Height of column: 1.20 m (3.9 ft.)
- Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
- Loading capacity: 8 kg (17.6 lbs.)
- Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
- Reversing mounting thread: 1/4? / 3/8? changeable
5602 RSD Copy Stand: Hand-cranked, rack-and-pinion height adjustment, additionally counter-balanced by a built-in coil spring. Blocking screw to stop accidental changing of height.
5603 RSD mot Copy Stand:?Height adjustment motorized, with two speeds. Cable remote control. Constant adjustment speed, independent of load. Automatic end switch by photo sensors.
Recommended lighting systems for the RD System copy stands are RB 5070 DX2 and the copy lighting units of the R1 system
Accessories
Code no: 5602
Subject to errors and technical changes.
SKU: KFO-KF-5602 -
Enlargers and copy stands
Kaiser Fototechnik 5603 RSD mot Copy Stand
- Column made of special aluminum multisection tubing, matt black anodized, with cm and inch scales.
- Camera carrier made of aluminum section, can be horizontally adjusted over approx. 16 cm (6.3 in.) with rack-and-pinion parallel guides.
- Left hand/right hand operation, two blocking screws prevent inadvertent changing of the adjusted position.
- Camera mounting plate tiltable by ? 90?.
- Connecting screw horizontally adjustable.
- Height adjustment with hand crank (5602) or motorized (5603).
- Large non-reflecting matt grey base plate with printed grid, cm and inch scales.
- Feet adjustable in height.
- Spirit level.
Specifications
- Base plate (WxHxD): 680 x 38 x 570 mm (26.8 x 1.5 x 22.4 in.)
- Height of column: 1.20 m (3.9 ft.)
- Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
- Loading capacity: 8 kg (17.6 lbs.)
- Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
- Reversing mounting thread: 1/4? / 3/8? changeable
5602 RSD Copy Stand: Hand-cranked, rack-and-pinion height adjustment, additionally counter-balanced by a built-in coil spring. Blocking screw to stop accidental changing of height.
5603 RSD mot Copy Stand:?Height adjustment motorized, with two speeds. Cable remote control. Constant adjustment speed, independent of load. Automatic end switch by magnet sensor.
Recommended lighting systems for the RD System copy stands are RB 5070 DX2 and the copy lighting units of the R1 system
Accessories
Code no: 5603
Subject to errors and technical changes.
SKU: KFO-KF-5603 -
