Showing 46–60 of 60 results
-
-
-
-
V-Lock and B-Mount batteries

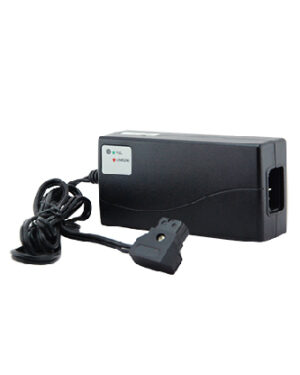

Dynacore D-TRAVEL-2 Charger V-Lock Travel (D-Tap)-type for 2 batteries
◆ Portable charger to charge batteries through the D-Tap connector.
◆ Dual D-Tap connectors are equipped, 2 batteries can be charged together.
◆ The total charger output is 16.8V, 4A.
◆ When 2pcs batteries are charged together, it will charge with the lowest voltage battery first with 4A current until the 2pcs batteries are with the same voltage level, and then it will charge 2pcs batteries simultaneously with 2A charging current each channel.
◆ LED charging indicator.SKU: DYN-D-TRAVEL-2 -
Battery adapters and DC couplers
Dynacore D-TS Hot-Swap Adapter V-Lock
Dynacore D-TS Hot Swap system.
The D-TS is a Universal Hot-Swap battery mount, it allows the user to hot-swap a fresh battery while still operating equipment, so you can remove the depleted battery while the leaving the other battery connected so that there is no downtime.
Utilising the V-Lock mounting system, it can be attached to any portable device with an existing battery bracket.SKU: DYN-D-TS -
V-Lock and B-Mount batteries

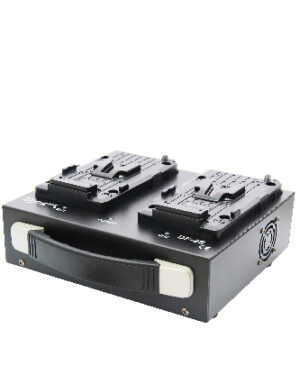

Dynacore DF-2S Charger Fast V-Lock Lay-Down for 2 batteries
Dynacore V-Lock fast charger Lay Down styleDF-2S/A can charge the batteries simultaneously at Max 5A fast charging current. The charging speed is quite faster than normal chargers.Compare with the normal charger, DF-2S/A can charge the batteries in half time, the charging time of the recommend batteries as follow.Battery Model D-155MS/A D-200MS/A D-310MS/A DS-260S/A DN-170S/A DN-310S/A Capacity 155Wh/10.5Ah 200Wh/14Ah 310Wh/21Ah 260Wh/17.4Ah 170Wh/11.6Ah 310Wh/21Ah D-2A Charging Time 4h12m 5h36m 8h24m 6h57m 4h38m 8h24m DF-2A Charging Time 2h6m 2h48m 4h12m 3h28m 2h19m 4h12m SKU: DYN-DF-2S -
V-Lock and B-Mount batteries

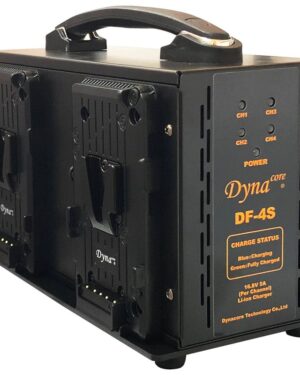

Dynacore DF-4S Charger Fast V-Lock Lay-Down for 4 batteries
DF-4S can charge 4 x 14.4 Volt V-Lock batteries simultaneously at Max 5A fast charging current. The charging speed is approximately half of a standard charger.Battery Model D-155MA D-200MA D-310MA DS-260A DN-170A DN-310A Capacity 155Wh/10.5Ah 200Wh/14Ah 310Wh/21Ah 260Wh/17.4Ah 170Wh/11.6Ah 310Wh/21Ah D-4A Charging Time 4h12m 5h36m 8h24m 6h57m 4h38m 8h24m DF-4A Charging Time 2h6m 2h48m 4h12m 3h28m 2h19m 4h12m SKU: DYN-DF-4S -
V-Lock and B-Mount batteries
Dynacore DHB-150 Battery V-Lock 26V 150Wh
To use these, you must also purchase a Dynacore D-HB26 Safety Adapter V-Lock 26V for each battery.
- Voltage: 26V
- 150Wh/5.8Ah capacity
- Max Output: 200W
- Max Output Current: 20A
- Max Input Current: 5A
- Operating Temp: -30C
SKU: DYN-DHB-150 -
V-Lock and B-Mount batteries
Dynacore DHB-300 Battery V-Lock 26V 300Wh
To use these, you must also purchase a Dynacore D-HB26 Safety Adapter V-Lock 26V for each battery.
- Voltage: 26V
- Capacity: 273Wh/10.5Ah
- MAX Output Power: 200W
- Max Output Current: 30A
- Max Input Current: 5A
- Weight: 1.30Kg(V-Mount)
- Operating temperature: -30°C ～ +50°C
SKU: DYN-DHB-300 -
V-Lock and B-Mount batteries
Dynacore DHBC-T Charger V-Lock 26V for 2 batteries
Dynacore DHBC-T Dual Charger for Dynacore 26V Li-Ion Batteries
Model: DHBC-T (DHBC-2)
Battery Type: V-Mount
Input: AC90V~240V / 47Hz~63Hz
Charger Output: DC29.2V / 5A
Weight: 1.40Kg (excludes power cable)
Dimension: 320 x 90 x 70mm / 12.6 x 3.54 x 2.76″SKU: DYN-DHBC-T -
V-Lock and B-Mount batteries
Dynacore D-10S Charger V-Lock 10 Channel
Dynacore D-10S is a 10 Channel Simultaneous charger for V-Lock batteries.
The features include Universal AC input voltage for worldwide operation.D-10S uses independent circuits control and ensure each channel is controlled separately and has no interference with each other allowing it to achieve efficient fast charging.
With the self-protection of over current&short circuit, batteries are well protected.
Each channel has its own LCD screen & LED indicator with information about the charging status and voltage of each battery.SKU: DYN-D-10S -
Battery adapters and DC couplers
Dynacore D-2BS-24 Converter V-Lock 14.8V input to 24V output
D-2BS/A-24 is a power station designed to utilise two 14.4 volt V-Lock batteries creating a power source outputing power for any device needing 24Volts, such as an LED panel.
It can supply up to 240Watt output (24V, 10A).
Designed to work with equal power batteries where a larger capacity is preferredLCD Display indicates Output Voltage
The unit has a Low Voltage Indicator LED to warn of potential problems shown here:
Color Red=Under/Over Voltage
Color Green=Good
Green Blinking=Battery LowOutput is via 3 Pin Female XLR Output
24V, 10A, 240W(Max)A Hexagon connector can be mounted to a stand using a super clamp or convi clamp.
SKU: DYN-D-2BS-24 -
Block batteries and power banks
Dynacore DHB-30 Battery XLR 26V 720Wh
Dynacore DHB-30 26 volt high capacity power supply
3-pin XLR output.
Max output current:30A.
3 digital LED screen to show voltage&capacity, it is with separate on/of the switch.4 pin XLR voltage input, with a separate switch to control charging.
External fuse holder, easy to replace the fuse.
250V 30A ceramics fuse is adopted to ensure a safer and longer operating life.Fire-proof panels and round aluminum corners angles on the outside housing provides protection to the batteries and internal circuit boards offering a robust battery power solution.
Specification:
Model
DHB-30
Voltage
26V
Capacity
780Wh/30Ah
Max Output Current
30A
Max Input Current
5A
Output
3 Pin XLR
Input
4 Pin XLR
Dimension
225x 205x 205(mm)
Weight
8.00Kg（exclude charger）
Operating temperature
-30°C ～ +50°C
SKU: DYN-DHB-30
